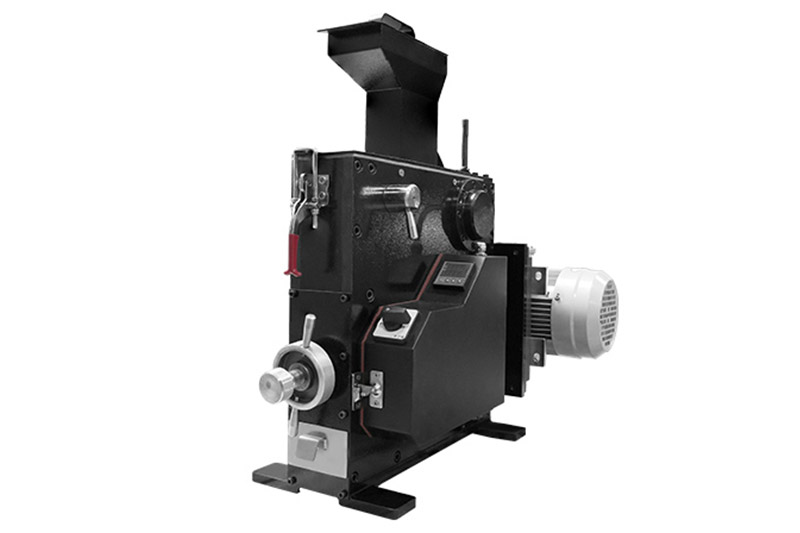

Jaw Crusher Of Wheatstone

Jaw crushers reduce medium-hard, hard, brittle and hard-ductile material samples by means of compression. Mechanical pressure is applied using the crusher’s two jaw; one is fixed while the other makes an eccentric movement.Jaw crushers are one of the most commonly preferred crushers due to their ability to crush all kinds of materials of any hardness, as well as their low-cost operation and easy maintenance.With large flow processing capacity, excellent equipment performance and safety performance, it is your ideal choice for sample pretreatment in laboratories and enterprise production.

Features Of Wheatstone's Jaw Crusher

A jaw crusher is a type of primary crusher used in crushing applications, primarily in mining, quarrying, and recycling industries. It is designed to crush large rocks into smaller particles for further processing.
1) Excellent crushing performance, the size of the input material is less than 50mm, and the size of the output material is above 0.5mm.

2) The dynamic balance of the system is adjusted to 6.3G level, the operation is stable, and the noise is lower than similar products.

3) Zero point correction for jaw plate wear compensation.

4) Digital display of jaw plate clearance.

5) The crushing chamber is isolated from the external mechanism to reduce dust pollution to the body and the external environment.

6) The volume is the smallest under the same level of feeding size.

Benefits Of Jaw Crusher

Jaw crushers offer several benefits in various crushing applications:


Jaw crushers are versatile machines that can handle a wide range of materials. They can efficiently crush hard and abrasive materials as well as softer rocks and ores. This versatility makes jaw crushers suitable for various industries, including mining, quarrying, and recycling.

Reduction of Particle Size

Jaw crushers are effective in reducing the size of rocks and ores. The crushing action breaks the material into smaller pieces, making it easier to handle and process downstream. This reduction in particle size can improve efficiency in subsequent stages of crushing and grinding.

Simple Structure and Easy Maintenance

Jaw crushers have a simple and robust structure that makes them easy to operate and maintain. They typically consist of fewer components compared to other crushing machines, reducing the risk of mechanical failure. Routine maintenance tasks, such as lubrication and jaw liner replacement, can be performed easily, leading to reduced downtime.

Energy Efficiency

Jaw crushers are designed to be energy-efficient machines. The mechanical advantage provided by the two jaws reduces the need for excessive energy consumption during the crushing process. Additionally, modern jaw crushers often incorporate advanced technologies, such as hydraulic systems, that further optimize energy efficiency.

Main Operating Instructions For Wheatstone's Jaw Crusher

Breaking Principle Of Wheatstone's Jaw Crusher

Parameters of Wheatstone's Jaw Crusher

   Application Primary crush
  Application field Engineering/electronic building materials, chemistry/synthetic materials, geology and minerals/metallurgy, environment/resource recycling, glass/ceramics
  Sample characteristics Medium hard, hard, brittle, hard tough
  Maximum injection size < 50  mm
  Sample flow 300Kg/h,Limestone, output particle size>3mm
  Work Condition Temperature: 0~50℃; Humidity: <95%; Placed on the floor
  Final output granularity Continuously adjustable from Min 0.5 mm (If the sample needs to be fully sieved or have a finer discharge particle size, can use WH060X grinder  for further processing)

  Jaw plate material
Stainless steel (standard),High manganese steel, chrome vanadium steel, hard alloy (furture specific performance pls check  accessories chapter  )
  Jaw plate length, width 237 x 60 mm
  Jaw plate gas width adjustment 1 – 15 mm
  Lubricating Lubrication-free
  Receiving tank drawer volume 1.5L
  Driver unit Three-phase asynchronous AC motor,1.5 kW
  Input voltage 220V
  Size 356 x 580 x 703.5 mm
  GW 127 kg
