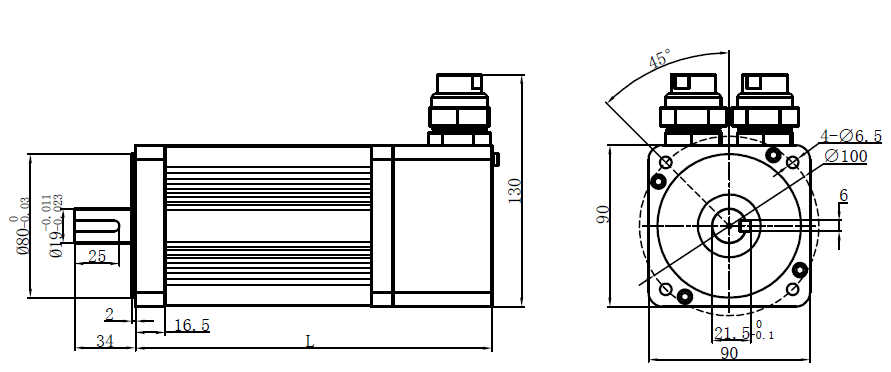

90防爆伺服

Explosion Proof Servo Motor

In environments where combustible gases, dust, vapors, fibers, or particles are present, electrical equipment must be specifically designed to prevent or control potential ignition sources like arcing or high temperatures. Explosion-proof motors are not constructed to withstand an external explosion; rather, their purpose is to prevent the risk of initiating a fire or explosion.

Criteria for Designing:
Industries Requiring Design Criteria for Explosion-Proof Motors:

  • Chemical, oil and gas, pharmace utical
  • Printing machinery
  • Painting robots
  • Waste processing plants
  • Grain and textile applications
  • Distilleries
Hazardous areas are categorized based on the types of dangerous substances and the likelihood of their presence in a given area during regular operations. To ensure secure operation in places with a consistent presence of flammable materials, explosion-proof motors need to integrate these essential design characteristics:

1. The motor enclosure should have the capability to endure and confine an internal explosion.
2. Sources of ignition, like flames and sparks, must be prevented from reaching the external environment where they could trigger an explosion.
3. The surface temperature of the housing should never reach a point where it could ignite combustible materials in the surrounding external environment, even in cases of overloading or when the motor is enclosed by a layer of hazardous dust. A temperature code (T-code) is assigned to indicate the permissible range for the highest surface temperature.
4. The motor must be equipped with a nameplate that clearly indicates its explosion-proof rating and, where applicable, the designated T-code.

Explosion Proof Servo Motor Features

  • Stable performance and reliable;
  • Outstanding explosion-proof performance: meet the national CCC requirements; gas explosion-proof grade in the second zone; dust explosion-proof grade in the first zone;
  • Local production, local research and development: local supply chain, so that the cost performance and delivery time can be closer to customer's demands;
  • Customized solutions: can provide customized solutions for customer.
Explosion-Proof-Servo-Motor-Features

Benefits of Explosion-Proof Servo Motors

Explosion-proof servo motors incorporate several essential features and components that enable them to operate safely and efficiently in hazardous environments. Let's explore some of the key aspects.
Enclosure-and-Protection-

Enclosure and Protection

The enclosure of an explosion-proof servo motor is specifically designed to contain any internal explosion and prevent it from igniting the surrounding atmosphere. It is constructed using robust materials and features tight seals to prevent the entry of flammable substances.

Temperature-and-Pressure-Ratings

Temperature and Pressure Ratings

Explosion-proof servo motors are designed to withstand extreme temperatures and pressure differentials. They are engineered to dissipate heat effectively and maintain optimal performance even in demanding operating conditions.

Performance-and-Efficiency

Performance and Efficiency

Explosion-proof servo motors offer excellent performance and efficiency, enabling precise and reliable motion control in hazardous environments. They are equipped with advanced control algorithms and feedback mechanisms, allowing for accurate positioning and speed control.

Reliable-Performance-in-Hazardous-Environments

Reliable Performance in Hazardous Environments

Explosion-proof servo motors are designed to maintain consistent performance even in challenging conditions. They can withstand temperature extremes, moisture, and corrosive substances, making them suitable for a wide range of industrial applications.

Explosion Servo Motor Technical Data

Base Size Power Range Speed Range Voltage Range Explosion-proof Grade
40mm 0.05~0.1kw 3000~3600rpm， Customized, Max 6000rpm 24v, 48v, 72v, 96v, 220v Ex IIB T4 Gb, Ex IIC T4 Gb, Ex IIC T5 Gb
60mm 0.2~0.6kw 3000~3600rpm， Customized, Max 6000rpm 24v, 48v, 72v, 96v, 220v, 380v Ex IIB T4 Gb, Ex IIC T4 Gb, Ex IIC T5 Gb
90mm 0.2~0.75kw 3000~3600rpm， Customized, Max 6000rpm 24v, 48v, 72v, 96v, 220v, 380v Ex IIB T4 Gb, Ex IIC T4 Gb, Ex IIC T5 Gb
110mm 0.6~1.8kw 3000~3600rpm， Customized, Max 6000rpm 24v, 48v, 72v, 96v, 220v, 380v Ex IIB T4 Gb, Ex IIC T4 Gb, Ex IIC T5 Gb
130mm 1.2~4.5kw 3000~3600rpm， Customized, Max 6000rpm 24v, 48v, 72v, 96v, 220v, 380v Ex IIB T4 Gb, Ex IIC T4 Gb, Ex IIC T5 Gb
150mm 3~8.5kw 3000~3600rpm， Customized, Max 6000rpm 24v, 48v, 72v, 96v, 220v, 380v Ex IIB T4 Gb, Ex IIC T4 Gb, Ex IIC T5 Gb
180mm 5~14.5kw 3000~3600rpm， Customized, Max 6000rpm 24v, 48v, 72v, 96v, 220v, 380v Ex IIB T4 Gb, Ex IIC T4 Gb, Ex IIC T5 Gb
220mm 12~45kw 3000~3600rpm， Customized, Max 6000rpm 24v, 48v, 72v, 96v, 220v, 380v Ex IIB T4 Gb, Ex IIC T4 Gb, Ex IIC T5 Gb
260mm 17~50kw 3000~3600rpm， Customized, Max 6000rpm 24v, 48v, 72v, 96v, 220v, 380v Ex IIB T4 Gb, Ex IIC T4 Gb, Ex IIC T5 Gb
selection-example
order-code

Wheastone Explosion Servo Motor Mode of Connection

1     Lead line type

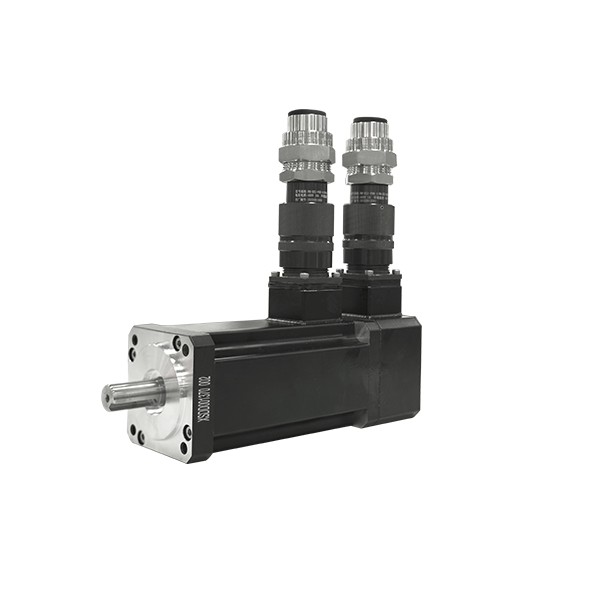

Lead line type
For Zone 1,2

 2     Plug type

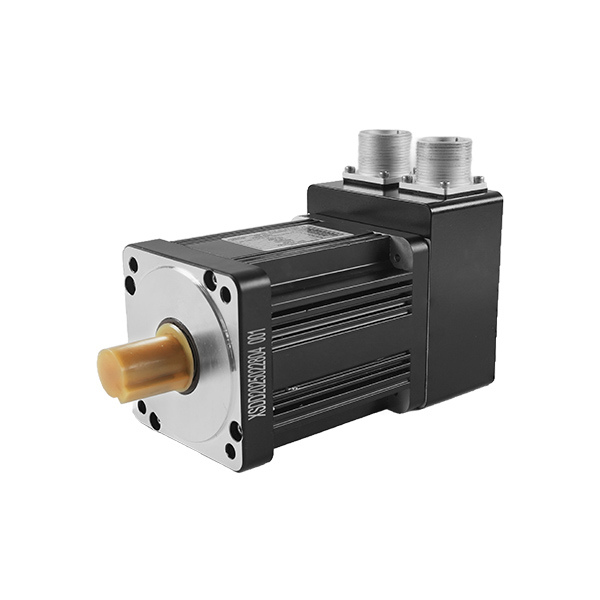

Plug type
For Zone 2

3    Terminal type

Terminal type
For Zone 1,2

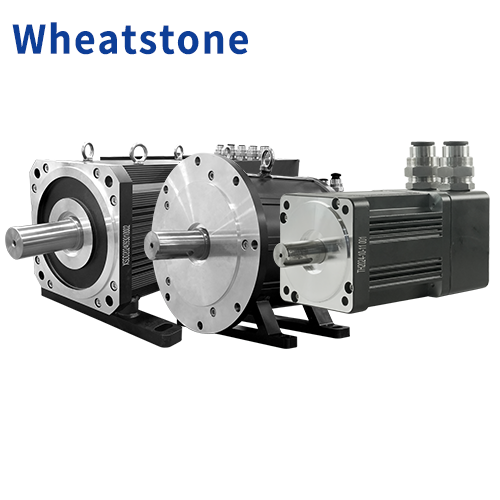

Wheatstone Explosion Proof Servo Motor

Can't Find ldeal Explosion Proof Servo Motors For Your Industries?

Wheatstone Explosion Proof Servo Motor Catalogue

Name Size Category Thumbnail Download
Explosion Proof Servo Motor Technical Data.pdf 89KB Catalogue download Download

Contact Us To Discuss Your Explosion Proof Servo Motor Needs

If there is anything you're not sure about or you just need a hand getting set-up you can call or email us.
Contact us

Cheng

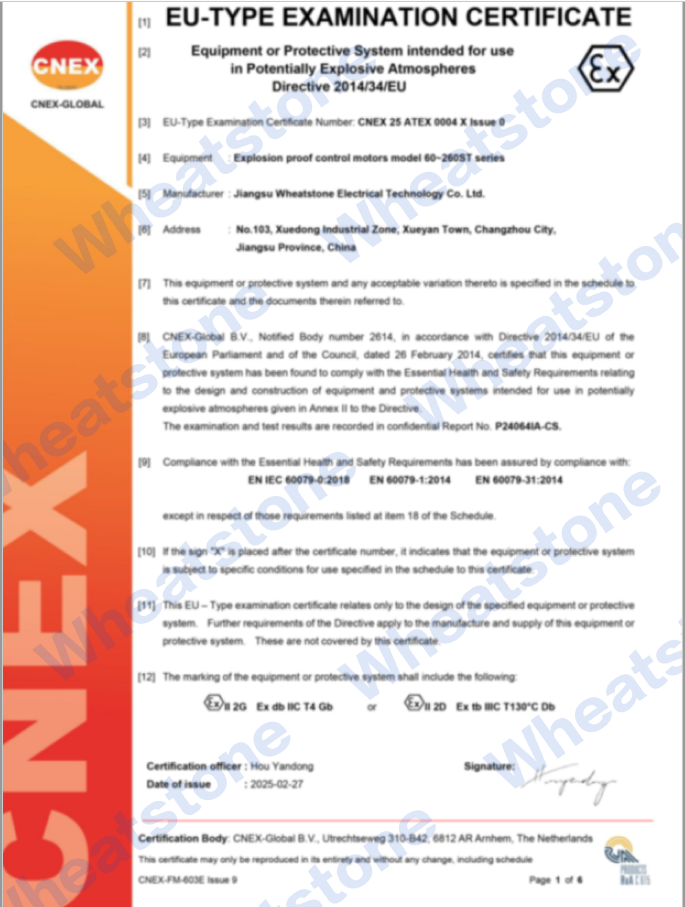

certificate
factory (2)

About Wheatstone:Your Expert Of Explosion Proof Servo Motor

Jiangsu Wheatstone Electrical Technology Co.,ltd is located in Jiangsu Provience , near Shanghai and Wuxi city . Owing two factory , one is in changzhou city , another is in wuxi city .

Mainly produce Explosion proof servo motor,Explosion proof motors for Underground Coal Mines,Radiation hardened motors,AC/DC servo motor,Sample cylinders and Online chromatography.

Welcome contact us once you have any demands of customized explosion control motor or laboratory instrument.
