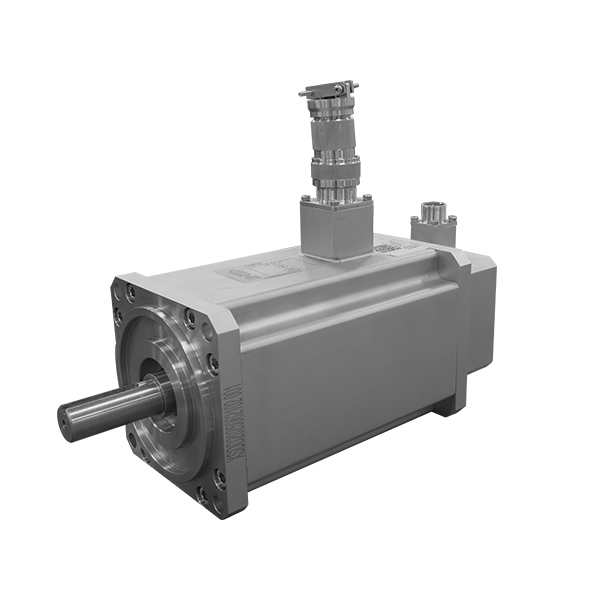

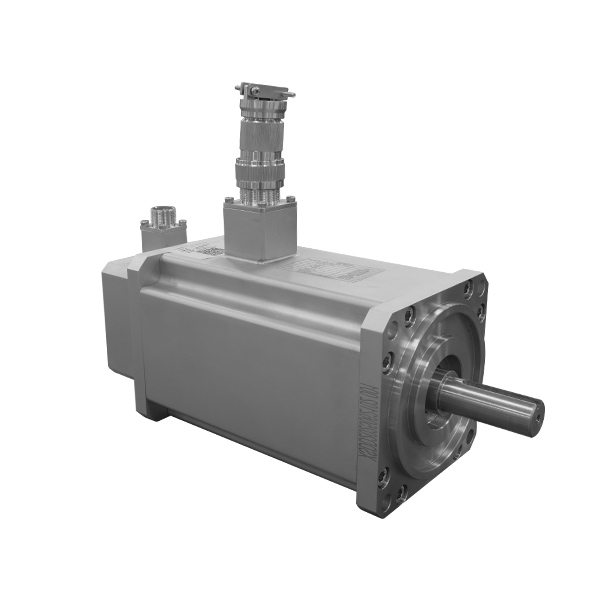

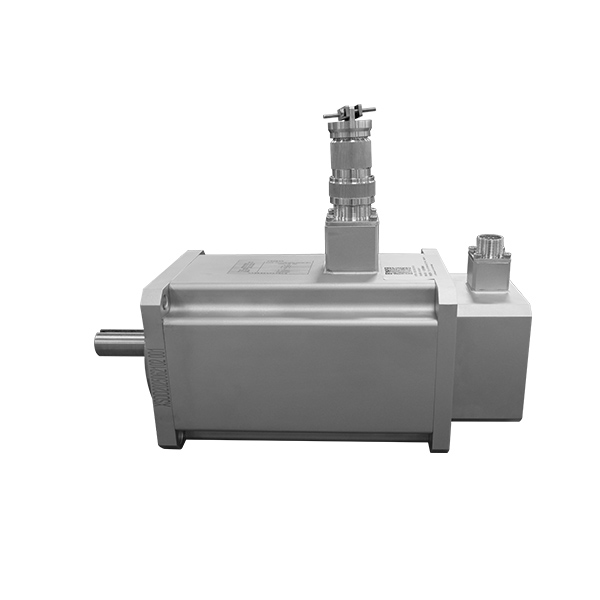

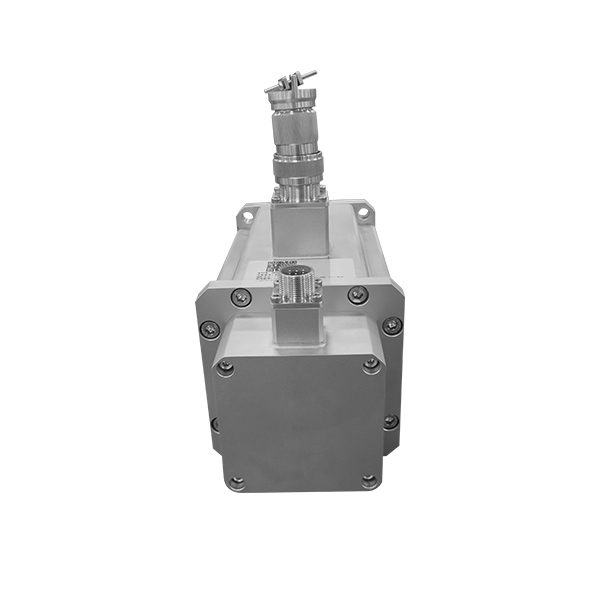

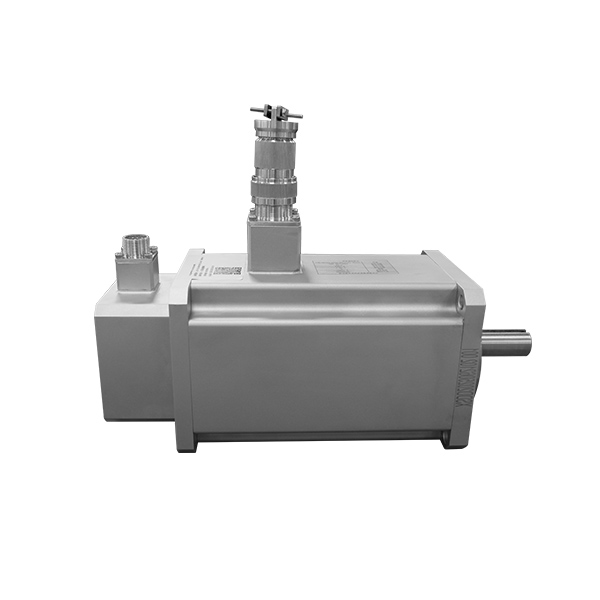

Vacuum Servo Motor

Product Overview

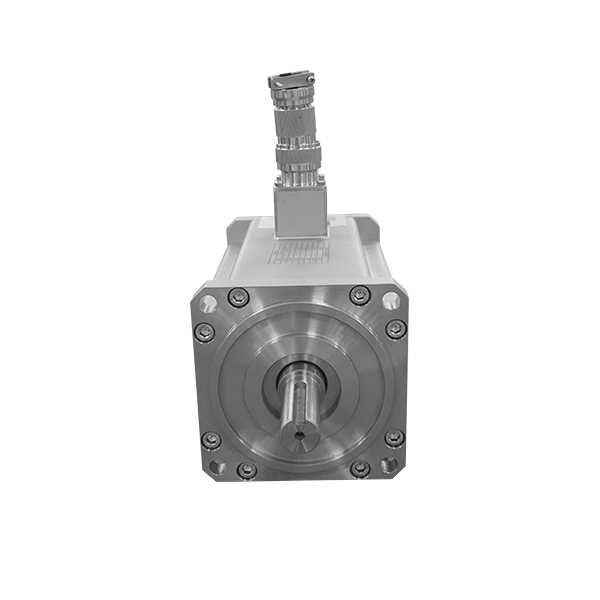

The WHEATSTONE Vacuum Servo Motor is designed to deliver precise motion control and long-term reliability in high-vacuum (HV) and ultra-high-vacuum (UHV) environments. Standard motors are unsuitable for vacuum due to outgassing, lubrication issues, and thermal stress. By incorporating low-outgassing materials, vacuum-rated insulation, and specialized cooling solutions, this motor achieves stable operation in the most demanding scientific, aerospace, and industrial applications.

Key Features

• Vacuum Compatibility – Manufactured from low-outgassing metals, ceramics, and polymers to minimize contamination in vacuum chambers.

• High Precision – Closed-loop servo design ensures accurate positioning and smooth motion control.

• Thermal Management – Optimized for heat dissipation in vacuum, with options for conduction or radiation cooling.

• Lubrication System – Utilizes solid lubricants or vacuum-compatible coatings to ensure durability without outgassing.

• Customization Options – Available with custom windings, feedback devices, and housing designs for specialized integration.

• Long Service Life – Designed to withstand continuous operation in UHV and cryogenic conditions.

Technical Highlights

• Motor Type: Vacuum-Compatible Servo Motor

• Frame Sizes: Available from 40 mm to 180 mm series

• Control: Closed-loop with encoder feedback

• Insulation: Vacuum-rated, low-outgassing insulation system

• Torque Output: High torque-to-size ratio, customizable

• Operating Pressure: 10^-7 pa (application dependent)

• Temperature Range: -196°C to +200°C (custom versions available)

• Cooling Methods: Conduction or radiation cooling; optional liquid cooling jackets

• Applications: Space technology, satellite systems, semiconductor equipment, vacuum robotics, particle accelerators, and research laboratories

  Motor Dimensions

•

  Electrical Parameters

• Main performance parameters
  Rated Power（KW)	0.75	Rated Torque(NM)	7.5
  Rated Current(A)	3.1	Maximum Torque(NM)	15
  Rated Speed(RPM)	1000	Rotor of Inertia(kg.cm²)	4.1
  Rated Voltage（V)	220VAC	Safety Class	IP65
  Insulation Class	F 155℃	Weight（KG)

Torque-Speed Characteristics Curve
