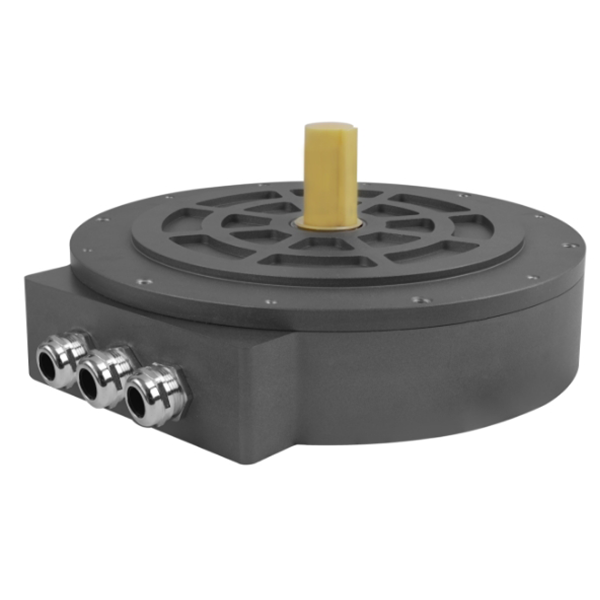

Disc Motor

Wheatstone Disc Motor, also known as a pancake motor, features a compact, flat structure with a large diameter and short axial length. It delivers high torque density, fast dynamic response, and smooth operation, making it ideal for space-constrained applications. Disc motors are widely used in robotics, automation, medical devices, and precision motion systems, and can be customized in torque, speed, voltage, and power to meet specific application requirements.

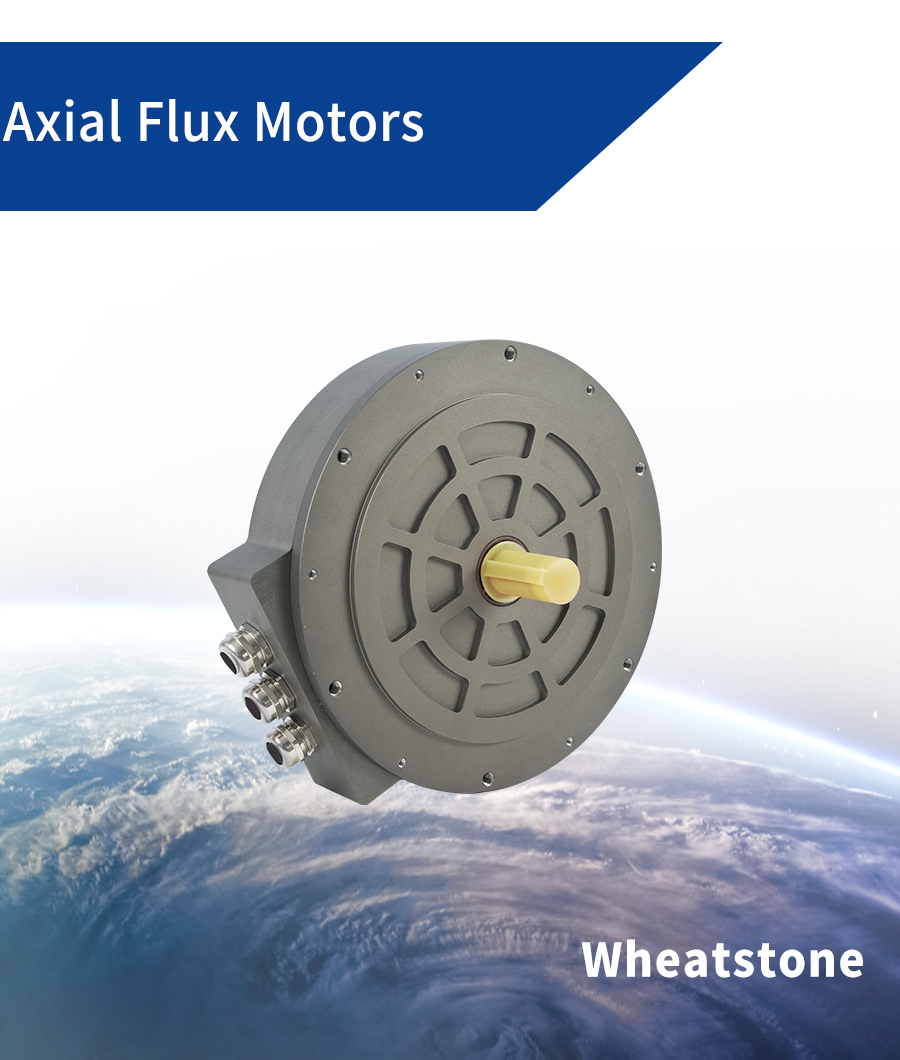

Axial Flux Motors

Axial Flux Motors feature a flat, disc-shaped design where the magnetic flux flows parallel to the motor shaft. This structure enables high torque density, compact size, and excellent efficiency compared to traditional radial flux motors. With fast dynamic response and smooth operation, axial flux motors are ideal for applications requiring high torque in limited space, such as robotics, automation systems, electric vehicles, and precision equipment. Customization options are available for torque, speed, voltage, and power to meet specific application needs.

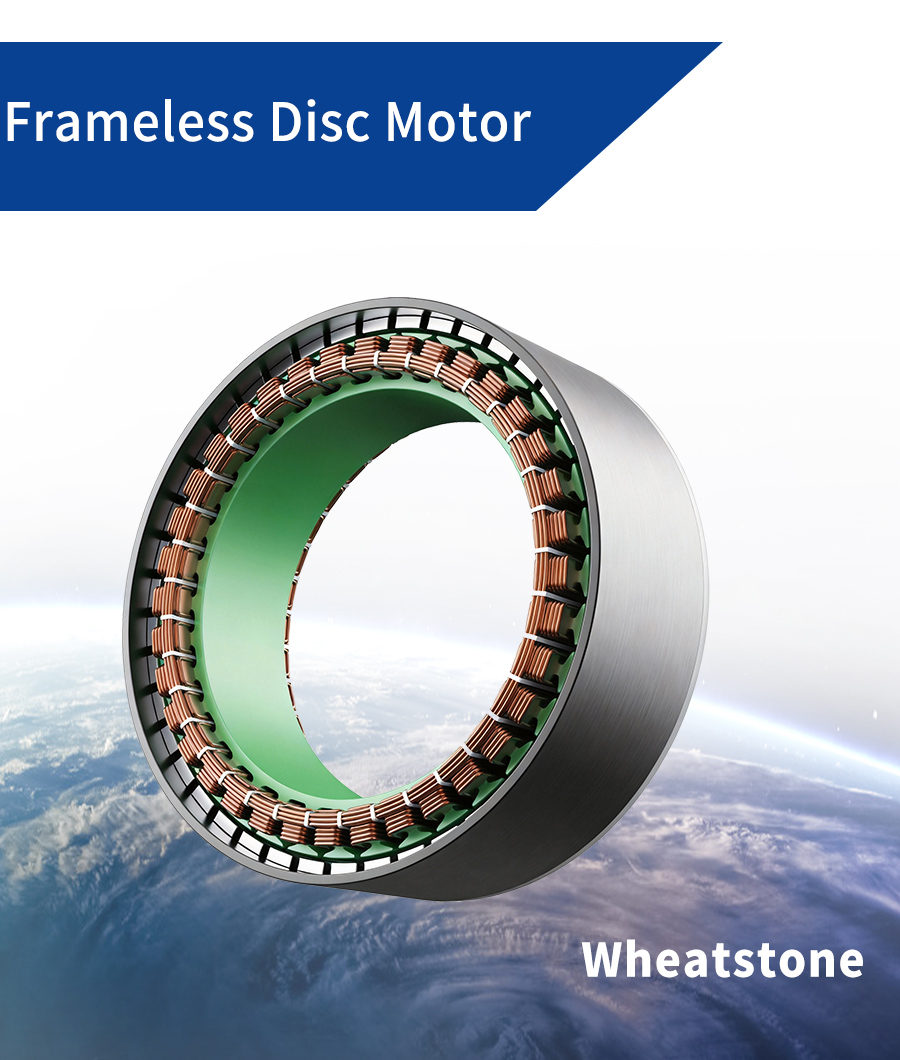

Frameless Disc Motor

Frameless Disc Motors feature a flat, disc-shaped design without a housing or shaft, allowing direct integration into customer systems. This structure enables high torque density, compact installation, and excellent thermal performance. By eliminating mechanical transmission components, frameless disc motors provide high efficiency, precise control, and smooth operation. They are ideal for robotics, direct-drive systems, gimbals, and precision automation equipment, with customization available in torque, speed, voltage, and power to meet specific application requirements.

Radial Flux Motor

Radial Flux Motors are the most common motor design, where the magnetic flux flows radially from the rotor to the stator. They offer a well-balanced combination of efficiency, reliability, and cost-effectiveness, making them suitable for a wide range of industrial applications. With stable performance, mature manufacturing technology, and flexible design options, radial flux motors are widely used in automation, pumps, fans, conveyors, and general motion control systems. Custom configurations are available for torque, speed, voltage, and power to meet diverse application requirements.

Disc Motor

Axial Flux Motors

Frameless Disc Motor

Radial Flux Motor

Consult Your Wheatstone Motor Expert
