Vacuum Stepper Motor

A vacuum stepper motor is a type of stepper motor specifically designed to operate reliably inside vacuum or low-pressure environments while maintaining vacuum cleanliness and stable performance.

What Is a Vacuum Stepper Motor?

A vacuum stepper motor is an upgraded version of a standard stepper motor that has been specially engineered in terms of materials, structure, lubrication, and manufacturing processes. These modifications allow the motor to run inside vacuum chambers without outgassing, overheating, or contaminating the vacuum system.

It converts electrical pulses into precise, incremental mechanical motion, enabling accurate position and speed control in vacuum applications.

1. Low Outgassing Design

2. Vacuum-Compatible Bearings and Lubrication

3. Optimized Thermal Management

4. High Positioning Accuracy

5. Suitable for Multiple Vacuum Levels

Vacuum stepper motors must be employed in applications requiring precise motion control within vacuum or low-pressure environments where standard stepper motors cannot operate reliably:

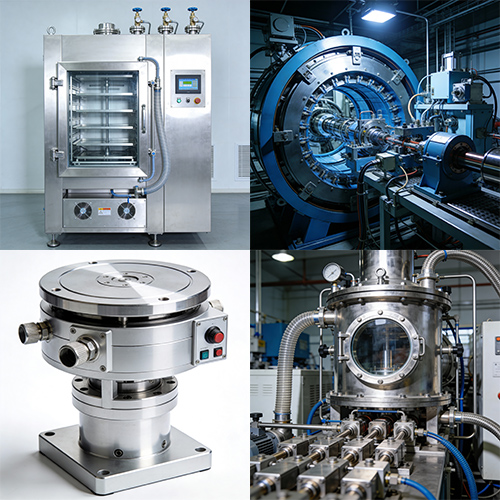

Environments requiring vacuum stepper motors

1. Low Outgassing Performance
Vacuum stepper motors are manufactured using low-outgassing materials and special cleaning processes to prevent gas release in vacuum environments, ensuring vacuum chamber cleanliness.

2.Vacuum-Compatible Lubrication

They use vacuum-rated greases or solid lubricants that do not evaporate or degrade under low pressure, providing reliable and long service life.

3.Stable Operation in Vacuum

Designed to operate efficiently without air convection, vacuum stepper motors feature optimized windings and structures to manage heat through conductive cooling

4.Scientific Research and Laboratory Equipment Particle accelerators, electron microscopes, and vacuum spectroscopy systems require stable, low-vibration, contamination-free motion control.

5.Vacuum Coating and Thin-Film Deposition Systems Processes such as PVD, CVD, and sputtering rely on vacuum conditions.Vacuum servo motors drive substrate rotation, linear stages, and robotic arms with high accuracy.

6.Medical and Pharmaceutical Vacuum Systems Certain sterilization, imaging, and analytical devices operate under controlled vacuum environments, requiring clean and precise motor control.

7.High-End Vacuum Automation and Robotics Vacuum-compatible robotic arms and transfer systems need fast response, smooth motion, and precise control without compromising vacuum quality.

Request a Quick Quote

Vacuum Stepper Motor Features

Specifically designed for vacuum and ultra-high vacuum environments;
Low Outgassing Materials;
Vacuum-Compatible Insulation and Wiring；
High Positioning Accuracy and Repeatability；
Optimized Thermal Design for Vacuum Operation;
Vacuum-Safe Bearings and Lubrication;
Reliable Performance in Harsh Conditions;
Customizable Configurations Available.

Consult Your Technical Expert

Benefits of Vacuum Stepper Motors

Vacuum stepper motors incorporate several key features and components that enable them to operate safely and efficiently in hazardous environments. Let us delve into several of these core elements.

Reliable Performance in Vacuum Environments

Specifically engineered for low to ultra-high vacuum conditions, vacuum stepper motors operate reliably where conventional motors fail due to outgassing, lubrication loss, or insufficient cooling.

High Precision and Accurate Motion Control

Closed-loop servo control provides precise positioning, smooth speed regulation, and stable torque output, making them ideal for high-accuracy and repeatable motion applications.

Ultra-Clean and Low Contamination Operation

Low-outgassing materials and oil-free or vacuum-compatible lubrication prevent particle generation and contamination, ensuring clean operation in sensitive environments.

Long Service Life and High Reliability

Optimized thermal management and robust design enable continuous operation, reduced maintenance, and long-term reliability even under extreme vacuum conditions.

Send Us Your Inquiry Today

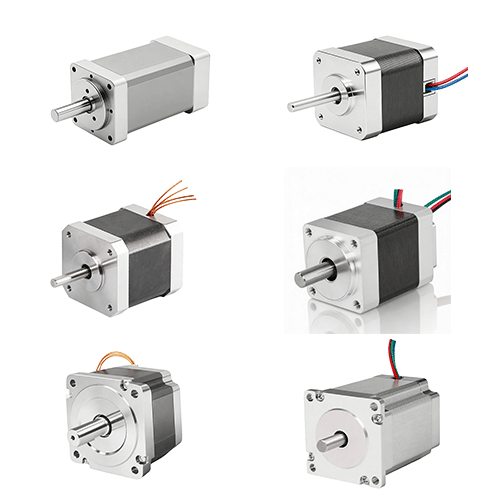

Vacuum Stepper Motor Technical Data

Base Size	Step Angle	Current	Motor Length	Hold torque
20mm/28mm	1.8°	0.5A	42mm/51mm	0.036NM/0.14NM
35mm/42mm	1.8°	1.0A	38mm/48mm	0.2NM/0.48NM
57mm/86mm	1.8°	2.0A/5.0A	76mm/118mm	2.0NM/8.5NM

Contact Our Support Team

Wheastone Vacuum Stepper Motor Mode of Connection

Lead Cable Type

For Zone 1,2

Explosion-proof Aviation Connector Type

For Zone 2

Terminal Type

For Zone 1,2

Wheatstone Vacuum Stepper Motor

No products found

Can't find the ideal Vacuum Stepper Motor for your industry?

Contact Wheatstone Expert

Wheatstone Vacuum Stepper Motor Catalogue

Name	Size	Category	Thumbnail	Download
Radiation hardened motors.pdf	12.73MB	Catalogue		Download

Contact Us To Discuss Your Vacuum Stepper Motor Needs

If there is anything you're not sure about or you just need a hand getting set-up you can call or email us.

Contact us

*Email

*Name

*Company Name

*Tel / Whatsapp

*Message

About Wheatstone:Your Expert Of Vacuum Stepper Motor

Wheatstone is a professional manufacturer specializing in high-performance vacuum stepper motors. With deep expertise in vacuum technology and precision motion control, we design motors that deliver reliable operation, accurate positioning, and long service life in high-vacuum and ultra-high-vacuum environments. Our vacuum stepper motors are widely used in semiconductor equipment, vacuum automation, scientific instruments, and aerospace applications, providing stable performance where conventional motors cannot operate.

Talk With Our Technical Specialist

Why Choose Vacuum Stepper Motor From Wheatstone?

compliant

Quality

Wheatstone is known for delivering high-quality products and services that meet or exceed our customers' expectations.

reliability

Reliability

Our products and services are designed to be reliable, which is why our customers trust us to provide them with solutions that work.

lightbulb

Innovation

Wheatstone is always at the forefront of new technology and innovation, providing our partners with cutting-edge solutions that keep them ahead of the competition.

sketch-(1)

Customization

We understand that every customer's needs are different, which is why we offer customized solutions that meet their specific requirements.

creativity

Experience

Wheatstone has been in the motor industry for many years, and our experience has helped us to develop a deep understanding of the challenges that our customers face.

global

Global Reach

We have a strong global presence, with partners in over 70 countries, which enables us to provide our customers with support wherever they need it.

customer-service

Commitment to Service

Our commitment to providing exceptional service is at the heart of everything we do, and our partners appreciate the support we provide throughout the entire customer journey.

return-on-investment

Cost-effectiveness

Wheatstone offers cost-effective solutions that provide our customers with the best value for their investment, ensuring that they receive a high return on their investment.

Vacuum Stepper Motor FAQ

Q Why do stepper motors need special vacuum versions?

A
Operating electronics and motors in a vacuum poses challenges that ordinary motors aren’t built for:

✔ Outgassing & contamination

Typical paints, greases, and materials release gases in vacuum that can contaminate sensitive systems (semiconductor chambers, electron optics, space hardware). Vacuum versions use clean materials and vacuum-stable lubricants to minimize this.

linengineering.com

✔ Thermal management

Without air to carry away heat, motors can overheat. Vacuum-rated designs optimize winding and materials to reduce heat generation and ensure stable operation.

motioncontrol.blog

✔ Pressure tolerance

Ordinary motors may fail below ~10⁻⁴ Torr; vacuum-rated motors can operate reliably at much lower pressures, e.g., down to ~10⁻⁷ Torr or better depending on grade.

empiremagnetics.com
Q Where are vacuum stepper motors used?
A
Common applications include:
- Semiconductor wafer handling and vacuum tooling.
- Electron microscopes, mass spectrometers, and surface analysis instruments.
- Spacecraft mechanisms and satellite positioning hardware (e.g., antennas, solar arrays).
- Any clean or UHV environment where outgassing must be minimized.
Q What is a vacuum stepper motor?

A A vacuum stepper motor is a type of stepper motor engineered to operate inside low-pressure environments (vacuum chambers) without contaminating the vacuum or degrading performance. They use low-outgassing materials, special lubricants, and construction techniques to work reliably in vacuum levels down to high vacuum or ultra-high vacuum
