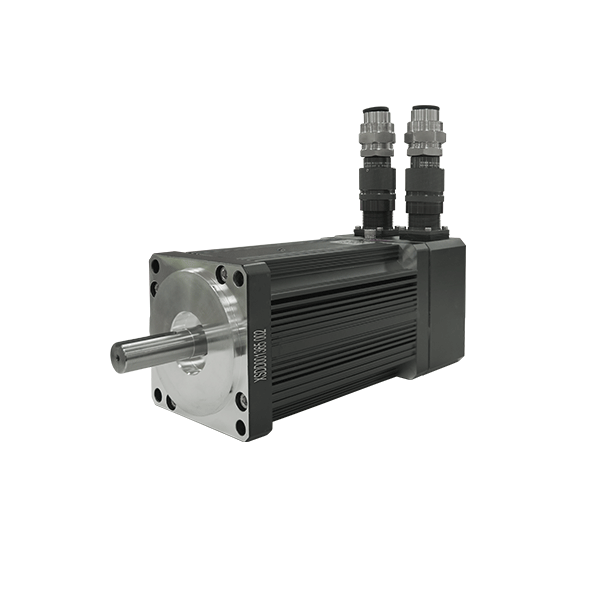

130 Series Explosion-Proof Aviation Connectors for AC Servo Motors

  • 130 Series Explosion-Proof Aviation Connectors for AC Servo Motors

Availability:
Quantity:

Product Description

Description of 130 Series Explosion-Proof Aviation Connectors for AC Servo Motors

Explosion-proof aviation connectors for AC servo motors, specifically designed for hazardous or explosive environments where flammable gases, liquids, or dust pose ignition risks.


Motor Model

Motor Model L(mm)
130ST-口040XX-EX-XXV(H) 235
130ST-口060XX-EX-XXV(H) 245
130ST-口077XX-EX-XXV(H) 260
130ST-口100XX-EX-XXV(H) 296
130ST-口150XX-EX-XXV(H) 330
130ST-口040XXB-EX-XXV(H) 260
130ST-口060XXB-EX-XXV(H) 270
130ST-口077XXB-EX-XXV(H) 285
130ST-口100XXB-EX-XXV(H) 321
130ST-口150XXB-EX-XXV(H) 355
130ST-口040XX-EX-XXV(H-5P) 181
130ST-口060XX-EX-XXV(H-5P) 196
130ST-口077XX-EX-XXV(H-5P) 211
130ST-口100XX-EX-XXV(H-5P) 231
130ST-口150XX-EX-XXV(H-5P) 241
130ST-口040XXB-EX-XXV(H-5P) 211
130ST-口060XXB-EX-XXV(H-5P) 226
130ST-口077XXB-EX-XXV(H-5P) 241
130ST-口100XXB-EX-XXV(H-5P) 261
130ST-口150XXB-EX-XXV(H-5P) 271

Motor Dimensions

微信图片_20250909161852

Explosion-proof aviation connector type motor


Electrical Parameters

Main performance parameters
Motor Model 130ST-口04030-EX 130ST-口06030-EX 130ST-口07730-EX
Rated Power(KW) 1.2 1.8 2.4
Rated current(A) 5.3 8.0 10.6
Rated speed(RPM) 3000 3000 3000
Maximum speed(RPM) 3600 3600 3600
Rated Torque(NM) 4.0 6.0 7.7
Maximum Torque(NM) 12.0 18.0 23.1
Rotor of Inertia(kg.cm²) 8.5 12.6 15.3


Main performance parameters
Motor Model 130ST-口10030-EX 130ST-口15030-EX
Rated Power(KW) 3.0 4.5
Rated current(A) 13.3 20.0
Rated speed(RPM) 3000 3000
Maximum speed(RPM) 3600 3600
Rated Torque(NM) 10.0 15.0
Maximum Torque(NM) 30.0 45.0
Rotor of Inertia(kg.cm²) 21.4 27.7


Main performance parameters
Motor Model 130ST-口04030-EX-380V 130ST-口06030-EX-380V 130ST-口07730-EX-380V
Rated Power(KW) 1.2 1.8 2.4
Rated current(A) 3.1 4.6 6.1
Rated speed(RPM) 3000 3000 3000
Maximum speed(RPM) 3600 3600 3600
Rated Torque(NM) 4.0 6.0 7.7
Maximum Torque(NM) 12.0 18.0 23.1
Rotor of Inertia(kg.cm²) 8.5 12.6 15.3


Main performance parameters
Motor Model 130ST-口10030-EX-380V 130ST-口15030-EX-380V
Rated Power(KW) 3.0 4.5
Rated current(A) 7.6 11.5
Rated speed(RPM) 3000 3000
Maximum speed(RPM) 3600 3600
Rated Torque(NM) 10.0 15.0
Maximum Torque(NM) 30.0 45.0
Rotor of Inertia(kg.cm²) 21.4 27.7

Torque-Speed Characteristics Curve

微信图片_20250909173119

130ST-口02530-EX-XXV

微信图片_20250909170658

130ST-口04030-EX-XXV

微信图片_20250909173441

130ST-口06030-EX-XXV

微1

130ST-口07730-EX-XXV

微信

130ST-口10030-EX-XXV

微信图片_20250909174408

130ST-口15030-EX-XXV



Application Industry

  1. Special areasy

  2. Mining Industry

  3. Pharmaceutical Industry

  4. Petrochemical industry

  5. Machinery industry

  6. AGV

  7. Special vehicles

  8. Storage
