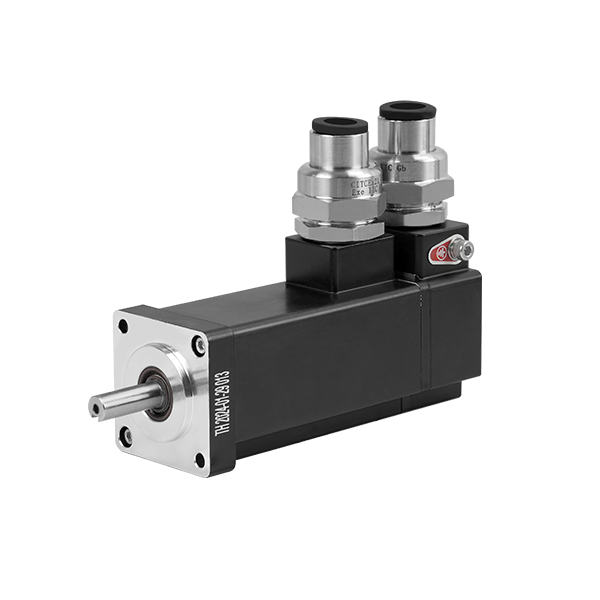

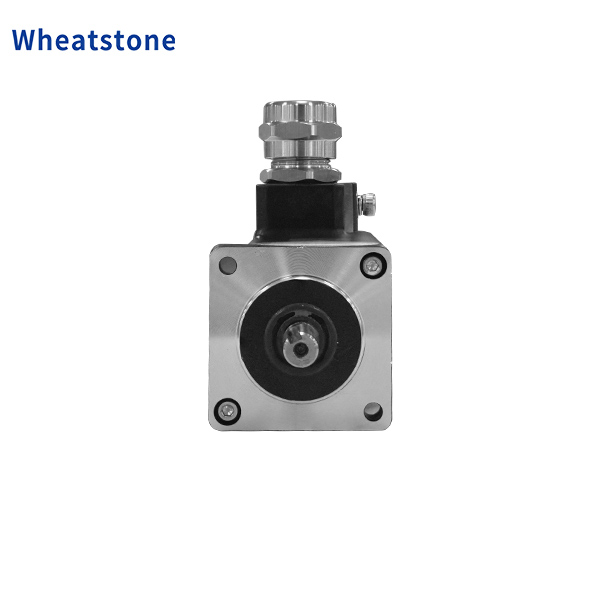

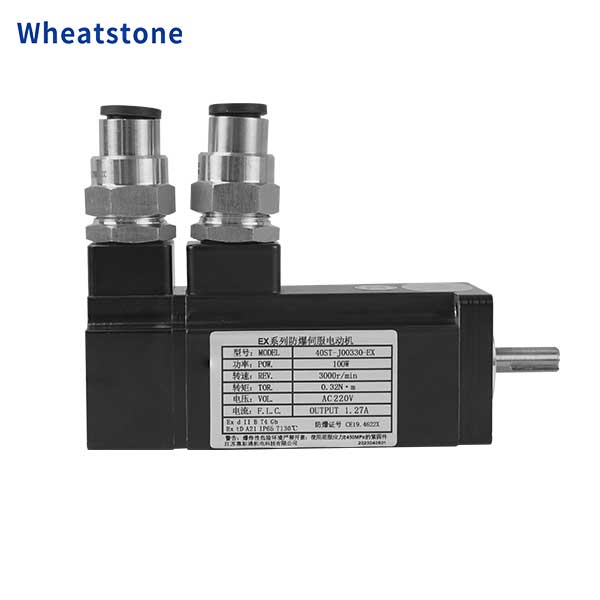

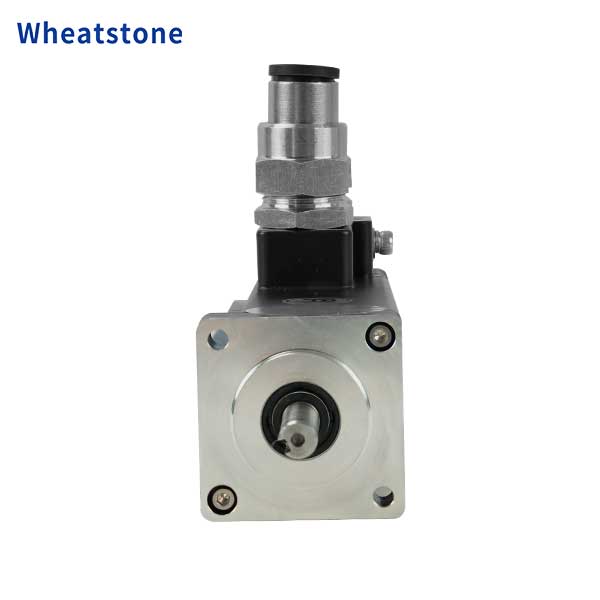

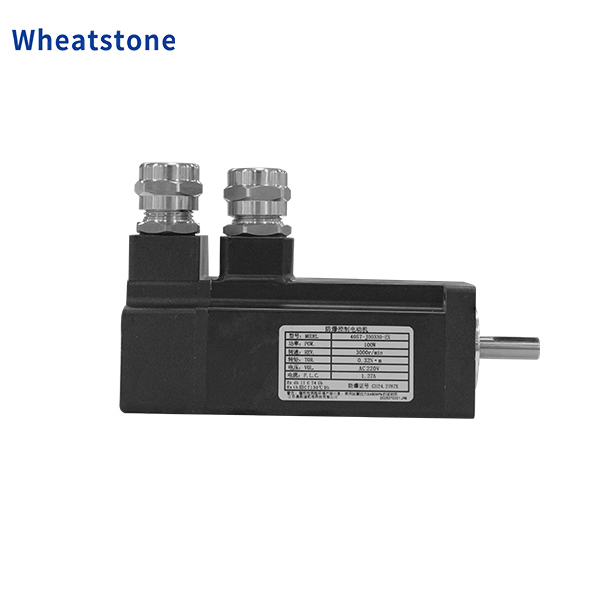

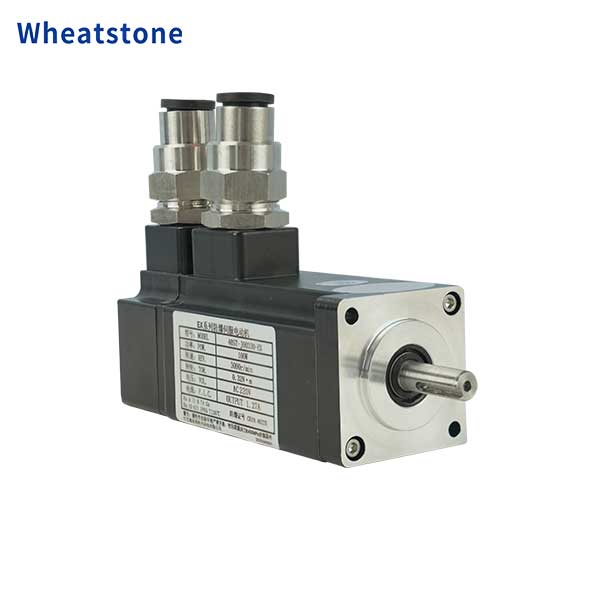

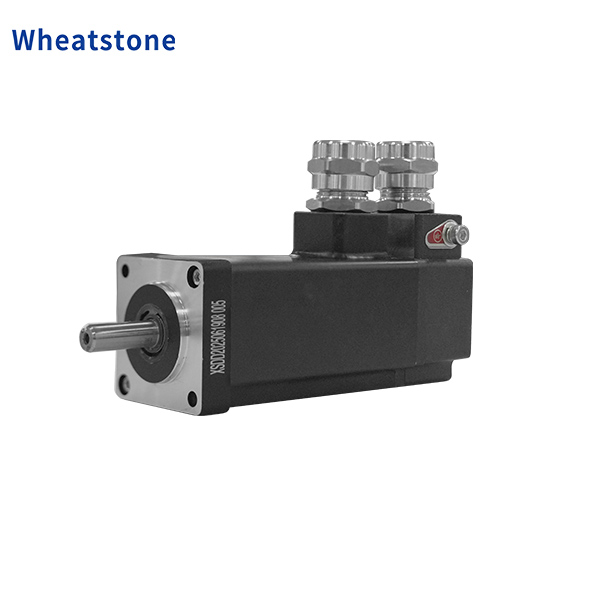

40 Series Explosion-proof AC Servo Motor
Wheatstone
aluminum alloy
109/119/139/149
| Quantity: | |
|---|---|
Product Description
Description of Explosion proof servo motor 40 EX series
explosion-proof servo motors," which are designed to be used in hazardous or explosive environments, where there is a risk of ignition due to the presence of flammable gases, liquids, or dust.
Technical Parameter of Explosion proof servo motor 40 EX series
Motor Model
| Motor Model | L(mm) |
| 40ST-口00230-EX-XXV | 109 |
| 40ST-口00330-EX-XXV | 119 |
| 40ST-口00230B-EX-XXV | 139 |
| 40ST-口00330B-EX-XXV | 149 |

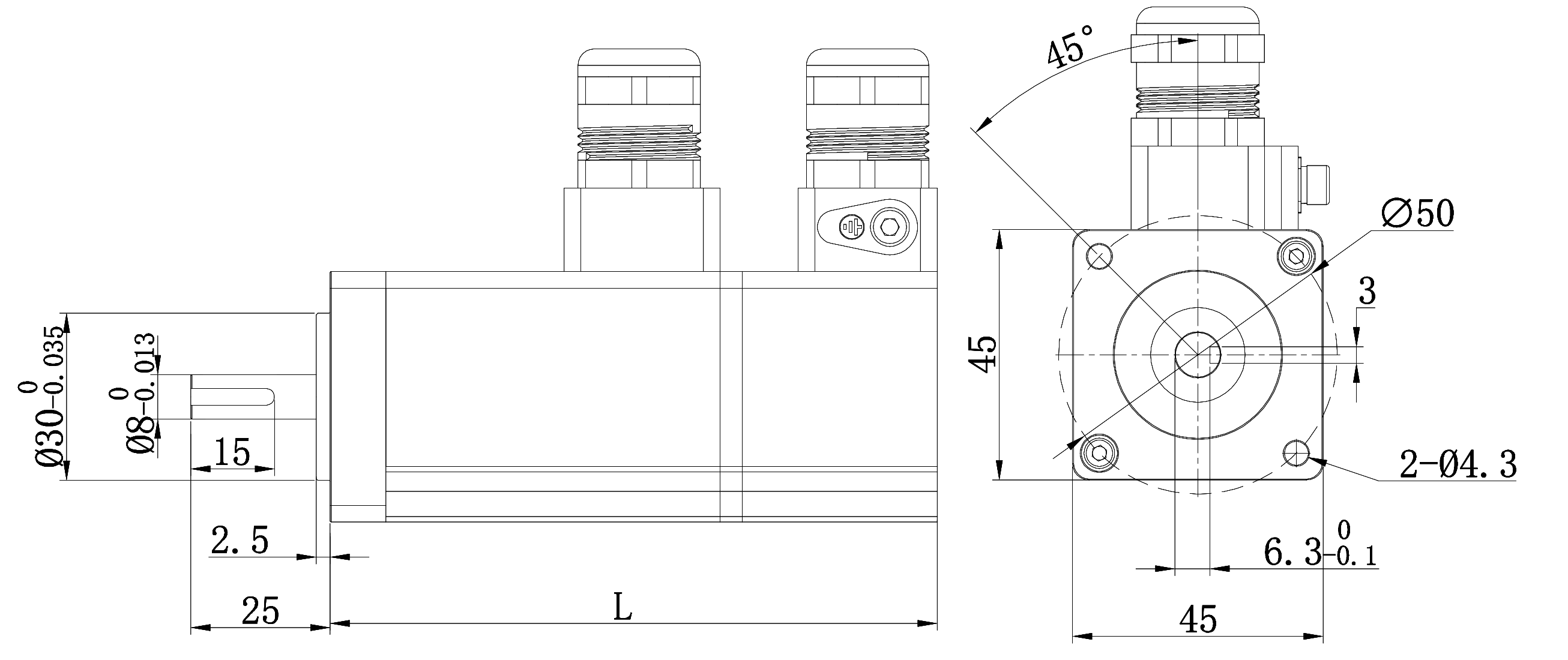

Motor Dimensions
Electrical Parameters
| Main performance parameters | ||
| Motor Model | 40ST-口00230-EX | 40ST-口00330-EX |
| Rated Power(KW) | 0.05 | 0.1 |
| Rated current(A) | 0.69 | 1.27 |
| Rated speed(RPM) | 3000 | 3000 |
| Maximum speed(RPM) | 6000 | 6000 |
| Rated Torque(NM) | 0.16 | 0.32 |
| Maximum Torque(NM) | 0.48 | 0.96 |
| Rotor of Inertia(g.cm²) | 46 | 80 |
Application Industry
FAQ
Why do you need a custom motor?
1)Global trade, market diversification, diversified consumer demand, the The trend of individualization is obvious, backing up to the upstream industry to have more special spare parts requirements for new processes and new processing equipment.
2)The World's future long-term national policy guidelines for supply-side reform, elimination of backward production capacity, environmentally friendly, energy-saving, intelligent and safe, the entire industrial environment are in transition, the original batch, large-scale production can not meet market needs.
3)Industrial homogenization competition is extremely serious, the survival environment is worrying; a large number of enterprises seeking change, in response to national policies, the trend of the times, close to customers, to solve customer personalization, targeted problems, personalization has become an important way of industrial production.
4)Electrification, automation, intelligence is the future trend, these can not be separated from the motor, so the future development trend of the motor industry is obvious, especially the personalized non-standard custom motor, market demand is more objective.
