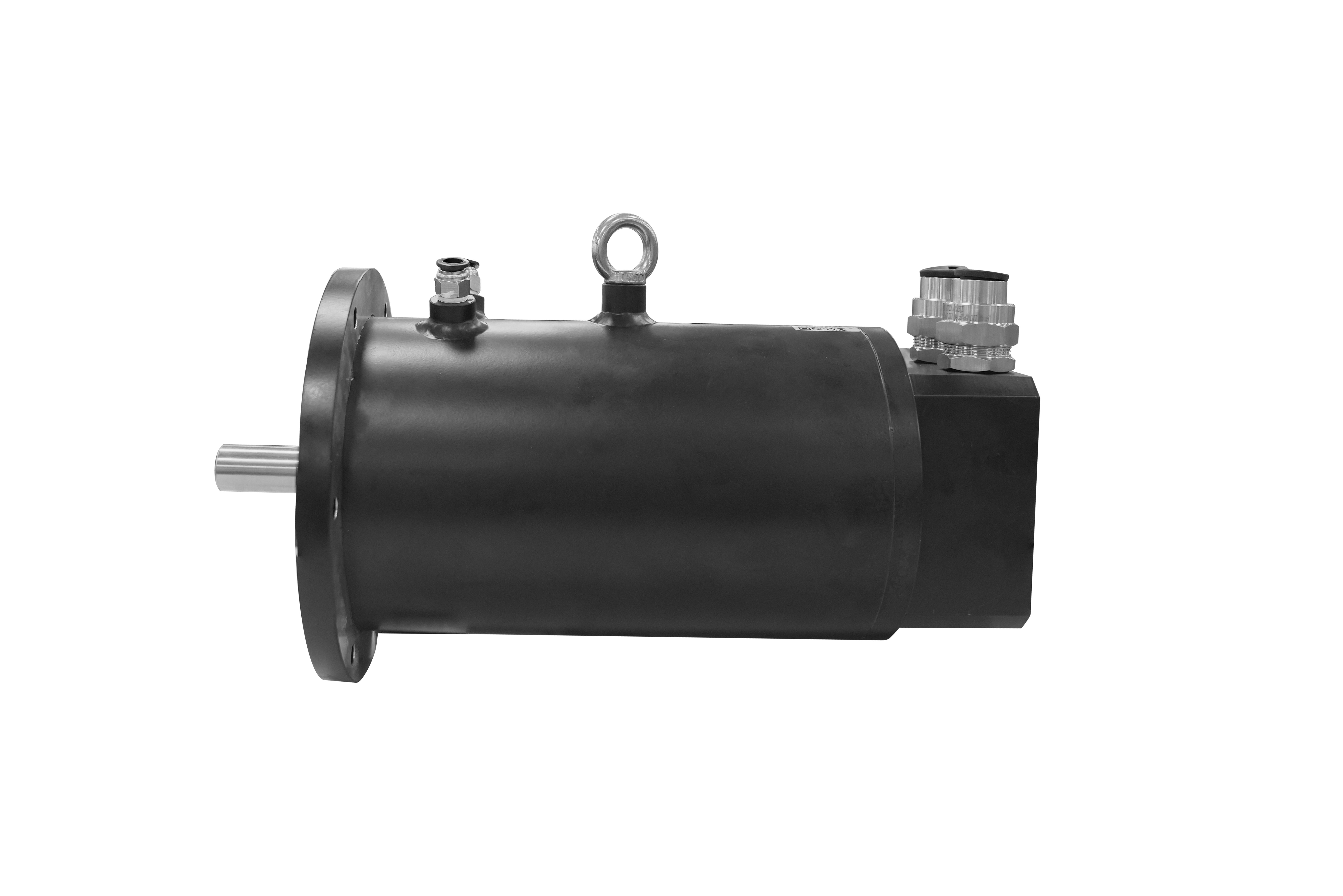

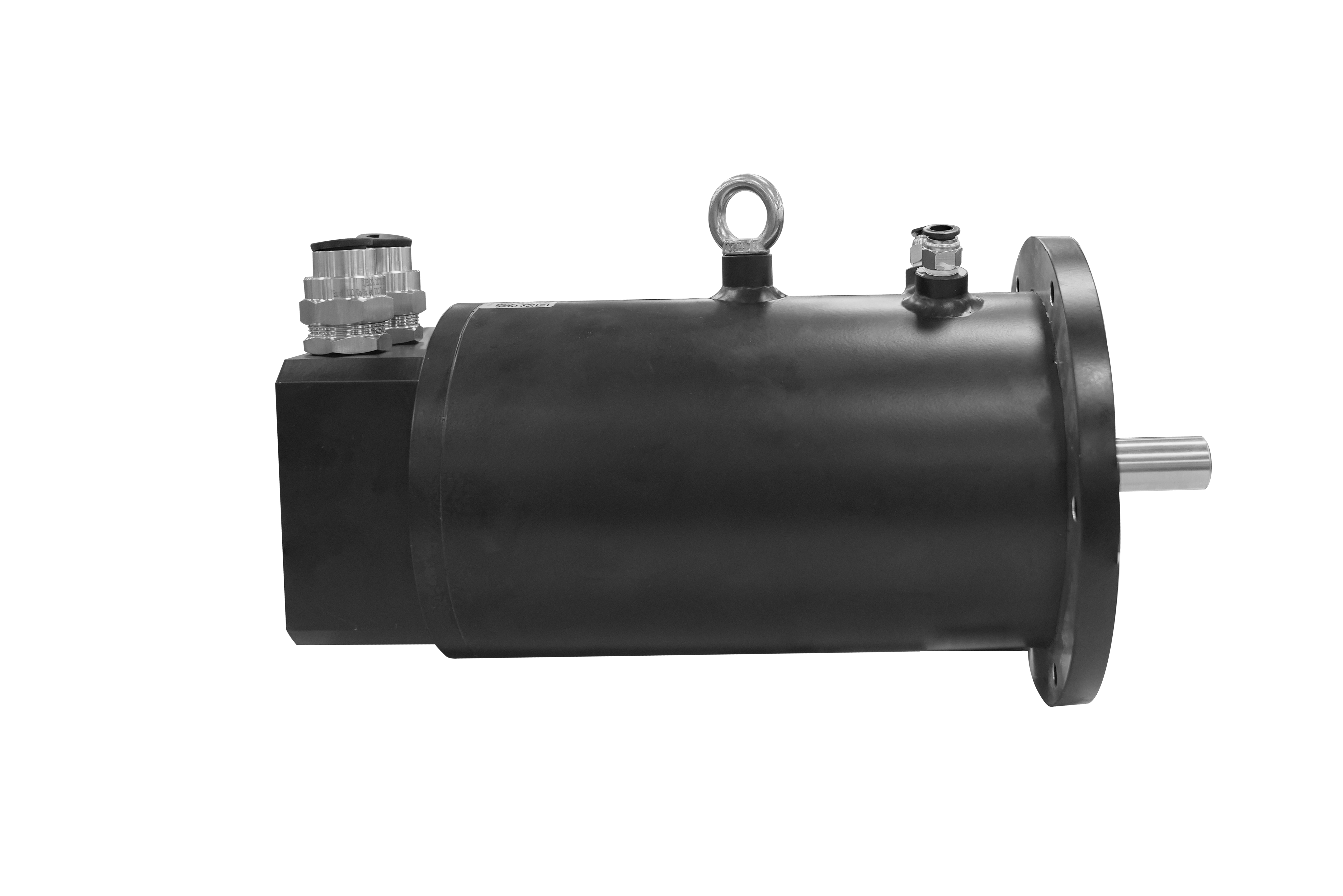

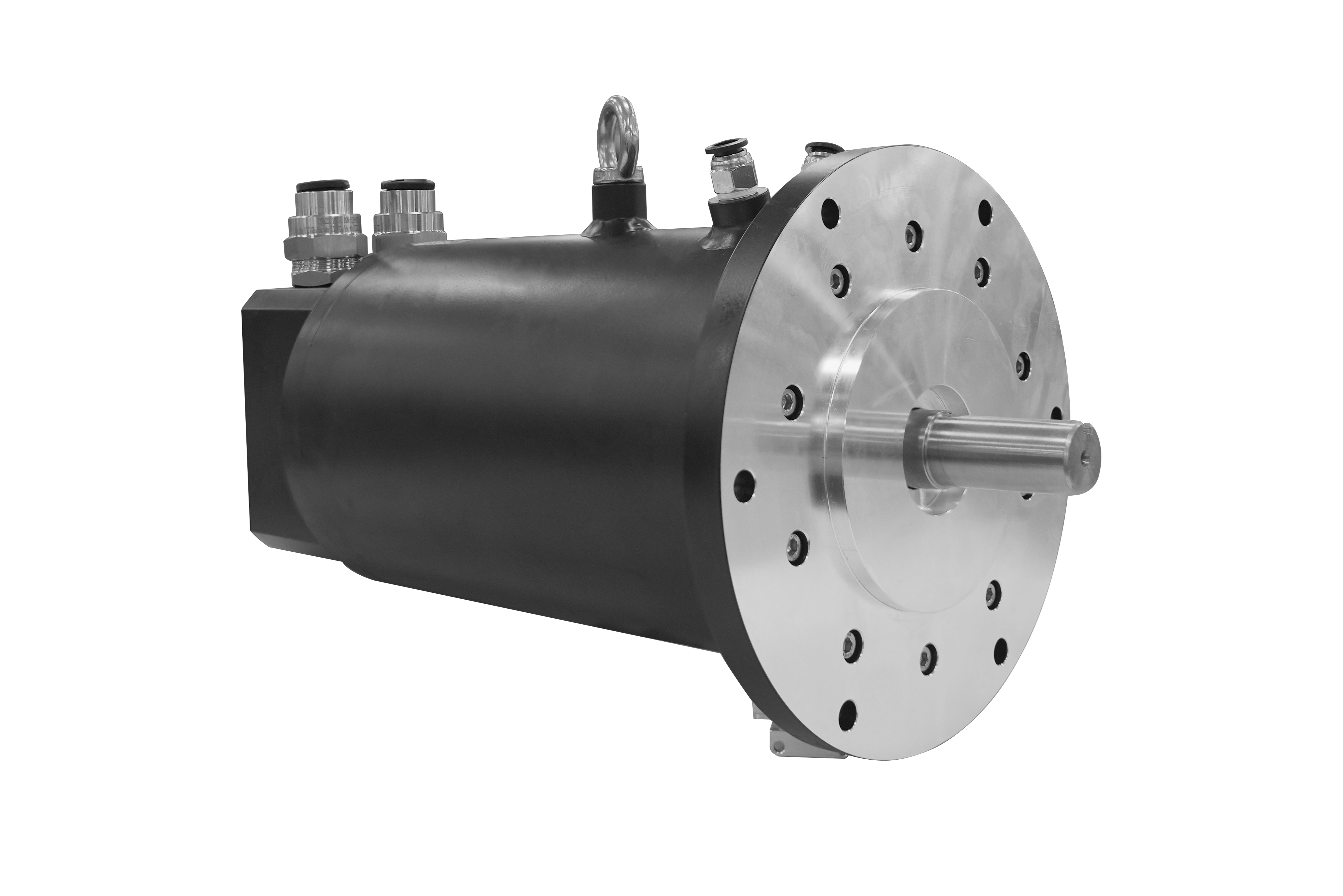

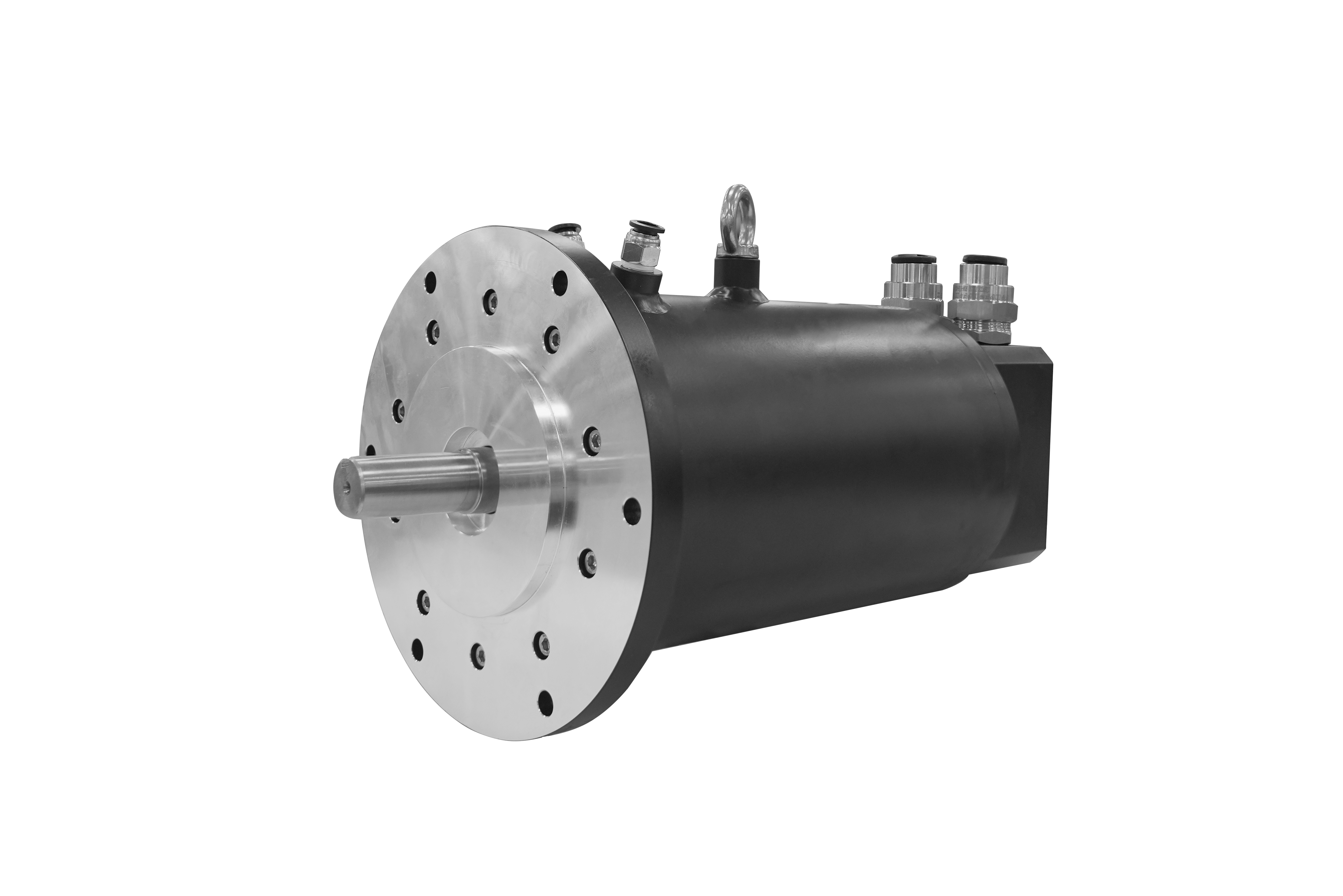

130-base explosion-proof liquid-cooled AC servo motor

  • 130ST-J10015-EX-380V-YL

  • wheatstone

Availability:
Quantity:
Inquire Add to Basket

Product Description

Description of 130 Base Explosion-proof liquid-cooled Servo Motor


Liquid-cooled explosion-proof servo motors are industrial motors that combine high-precision servo control, liquid cooling and explosion-proof safety design, and are primarily used in high-risk, high-load and continuous-operation environments.

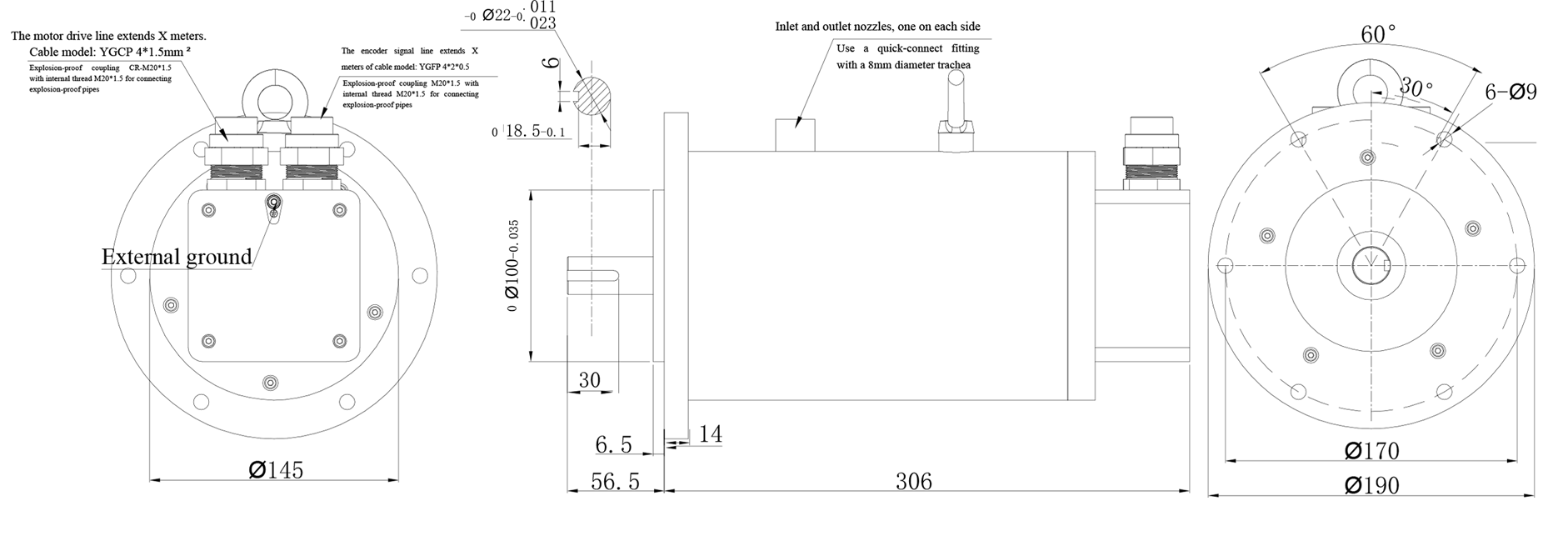

Motor Dimensions

114e4f5d8f1e823e25c6de218cfe2d43

Electrical Parameters

Main performance parameters
Motor Model 130ST-J10015-EX-380V-YL
Rated Power(KW) 1.5
Rated current(A) 3.5
Rated speed(RPM) 1500
Maximum speed(RPM) 1800
Rated Torque(NM) 10.0
Maximum Torque(NM) 30.0






Download

download 130ST-J10015-EX-380V-YL-AD38-T5V1.2.pdf

Application Industry
