130 Frame Food-Grade Motor

  • 130WD-M10010-24V-004

Availability:
Quantity:
Inquire Add to Basket

Product Description

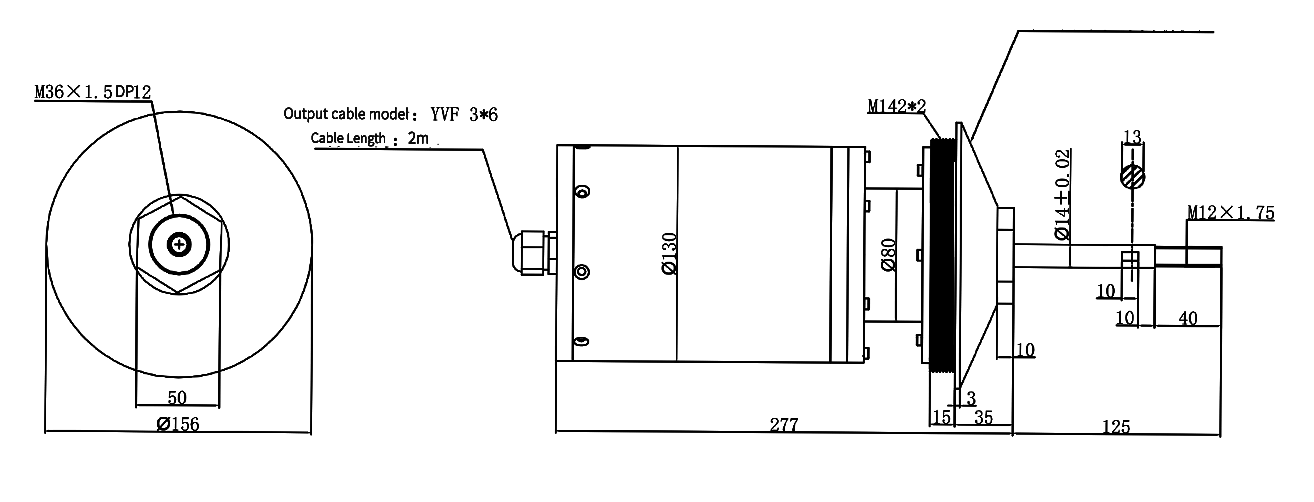

Motor Dimensions

规格书130WD-M10010-24V-004(D14E125-B-N-LXX-DG3F)（2024.3


Electrical Parameters

Main performance parameters
Rated Power(KW) 1 Rated Speed(RPM) 1000
Rated Torque(NM) 10 Insulation Class F 155℃
Rated Current(A) 52 Protection Class IP65
Rated Voltage(V) 24VDC Weight(KG)

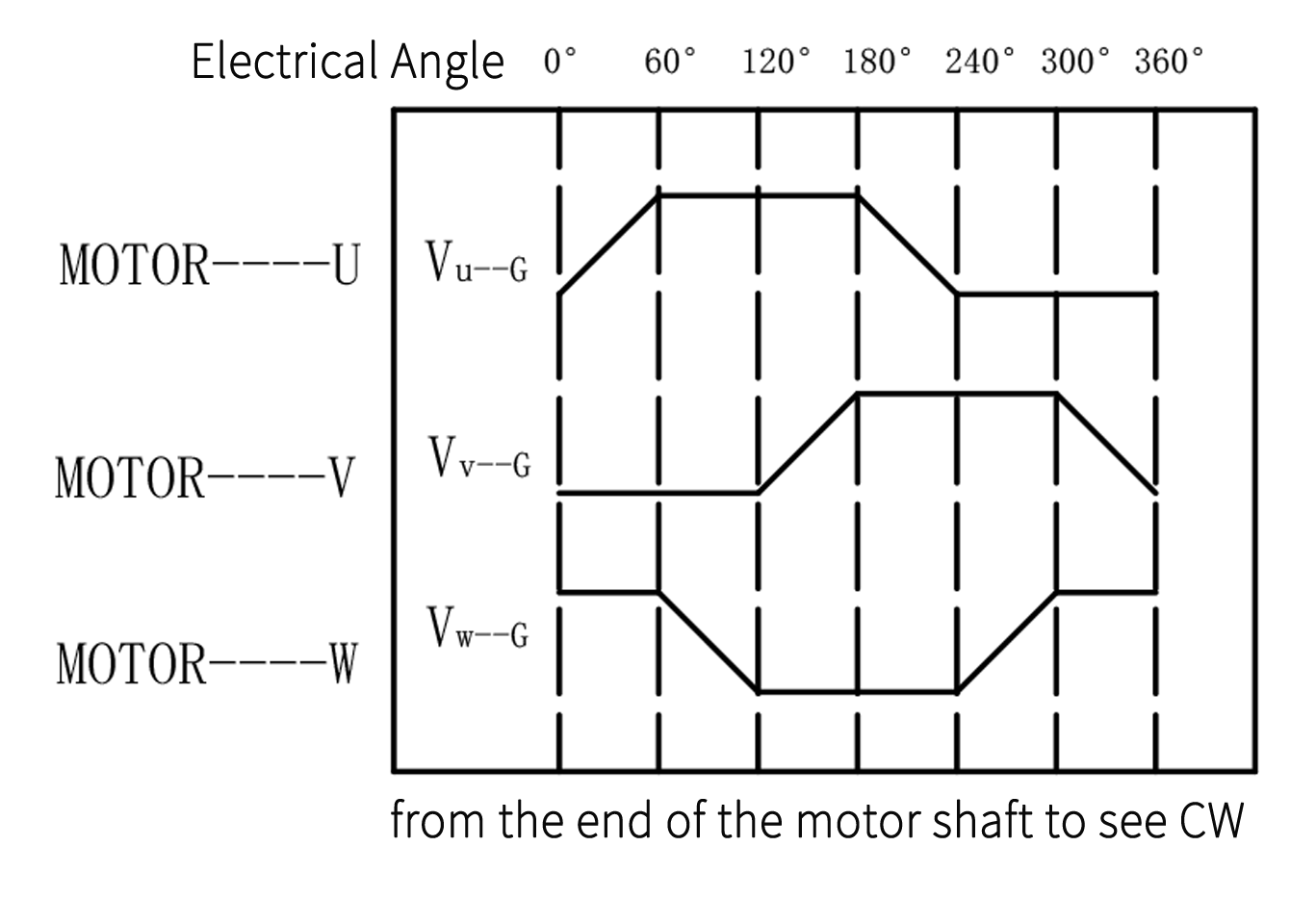

Brushless motor phase sequence


规格书130WD-M10010-24V-004（2024.3
