180 Base Waterproof And Radiation Hardened Servo Motors

Product Overview

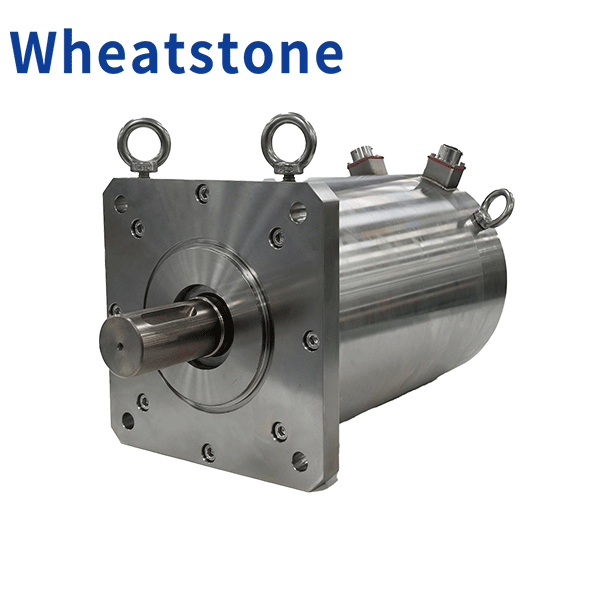

The WHEATSTONE 180 Radiation Hardened Servo Motors with Aviation Connectors

A waterproof, radiation-resistant servo motor is a specialized motor designed for extreme environments. It acts as the “muscles” of a robot, capable of withstanding high levels of nuclear radiation while resisting water damage to ensure the execution of precise movements.

Key Features

• Dual Protection Capabilities –  Features both high-level water resistance (typically IP67 or higher) and strong radiation resistance (total dose up to 1 MGy), capable of withstanding high-pressure spray cleaning and nuclear radiation damage.

• All-Specialty Material System-All internal components—including insulation, lubrication, seals, and cables—have undergone radiation-hardening treatment, and the housing is typically made of stainless steel to enhance corrosion resistance.

• Robust Feedback System –Rotary transformers are often used in place of optical encoders. Operating on electromagnetic principles, they offer superior radiation and shock resistance, ensuring reliable position feedback.

• Adaptability to Extreme Environments-Capable of stable operation across a wide temperature range of -40°C to +75°C and under high-impact conditions (e.g., 15G–50G).

• Application Scope- Specifically designed for high-risk scenarios where human access is not possible, such as operations inside nuclear facilities, space exploration, and deep-sea exploration.

Technical Highlights

• Motor Type: Radiation Hardened  AC/DC Servo Motors

• Frame Size: 180 mm series

• Control: Closed-loop with encoder feedback

• Radiation Tolerance: >1×10⁶ Gy (application dependent)

• Insulation System: Radiation-hardened, vacuum-compatible insulation

• Torque Output: High torque density in compact design

• Temperature Range: -196°C to +200°C (custom versions available)

• Protection: Wire cover for cable shielding and enhanced durability

• Applications: Nuclear energy systems, aerospace equipment, particle accelerators, research facilities, and defense technologies

• Protection Rating: IP65 or higher

Motor Model

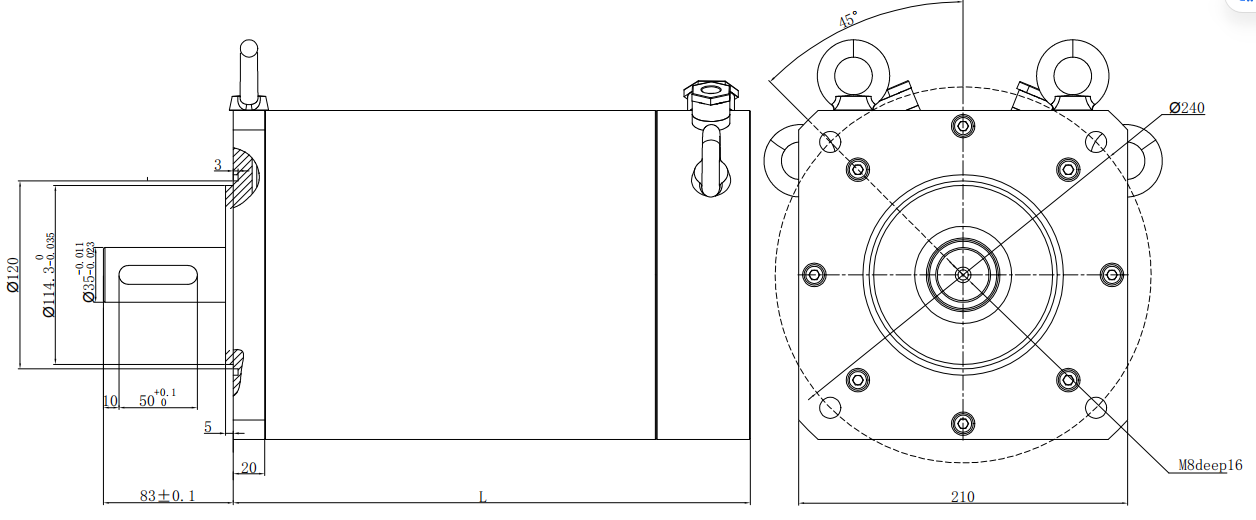

Motor Dimensions
