Product Description

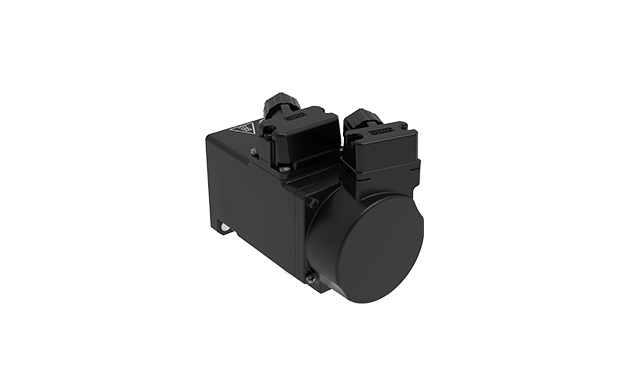

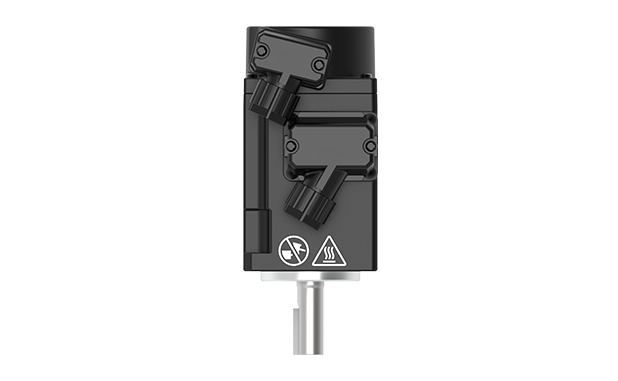

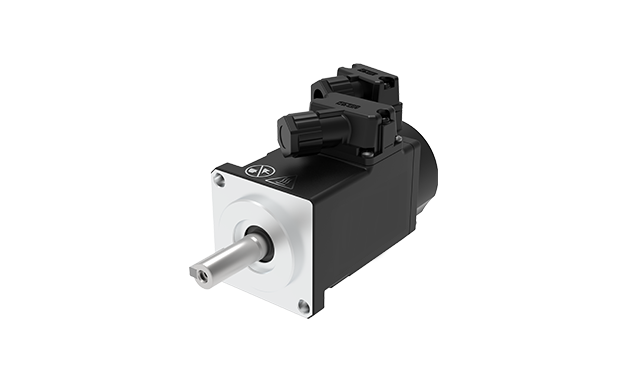

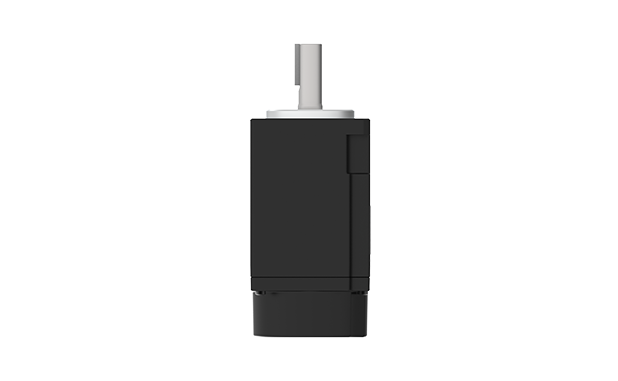

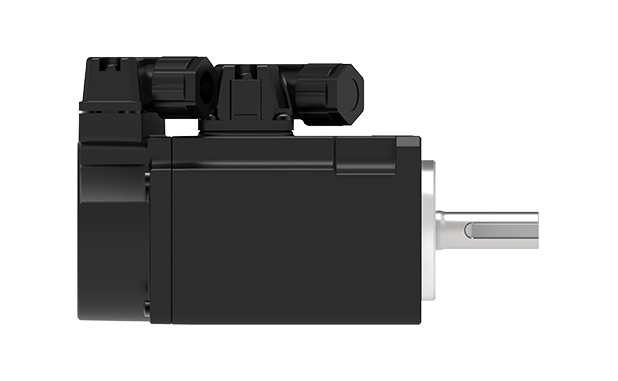

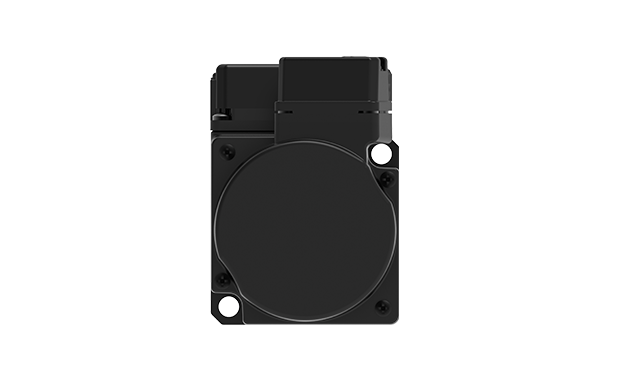

Description of the 40 Series AC Servo Motors
The 40 Series AC Servo Motor is a compact and high-performance motion control solution designed for precision automation applications. Featuring high torque density, fast response, and stable operation, this motor delivers excellent positioning accuracy and smooth performance even under demanding conditions.
Technical Parameter of Explosion proof servo motor 40 EX series
Motor Model
| Motor Model | L(mm) |
| 40ST-口00230-XXV | 62.4 |
| 40ST-口00230B-XXV | 88.1 |
| 40ST-口00330-XXV | 74.4 |
| 40ST-口00330B-XXV | 100.1 |
Motor Dimensions
Electrical Parameters
| Motor Model | 40ST-口00230-EX | 40ST-口00330-EX |
| Rated Power(KW) | 0.05 | 0.1 |
| Rated Current(A) | 0.58 | 0.98 |
| Rated Speed(RPM) | 3000 | 3000 |
| Maximum speed(RPM) | 6000 | 6000 |
| Rated Torque(NM) | 0.16 | 0.32 |
| Maximum Torque(NM) | 0.56 | 1.12 |
| Rotor of Inertia(kg.cm²) | 0.018 | 0.031 |
