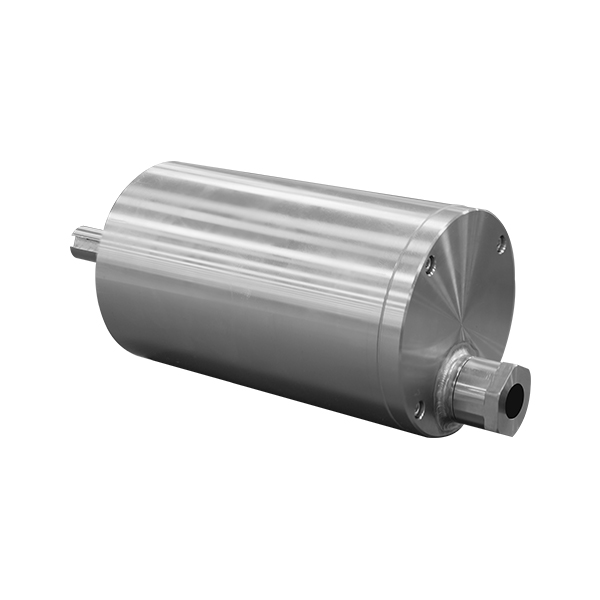

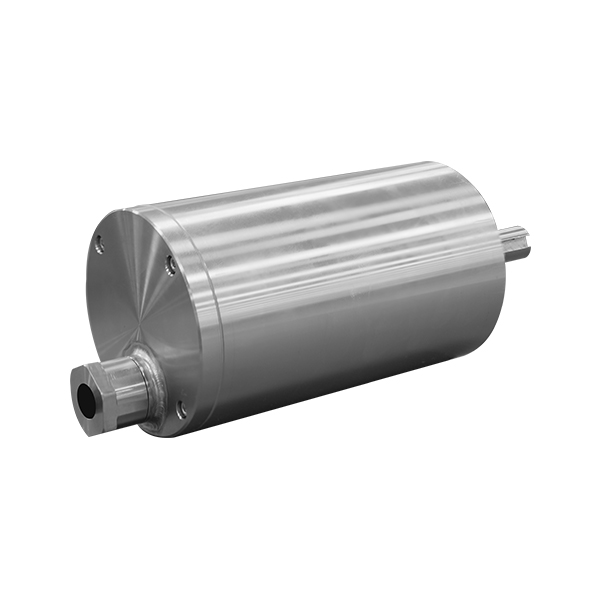

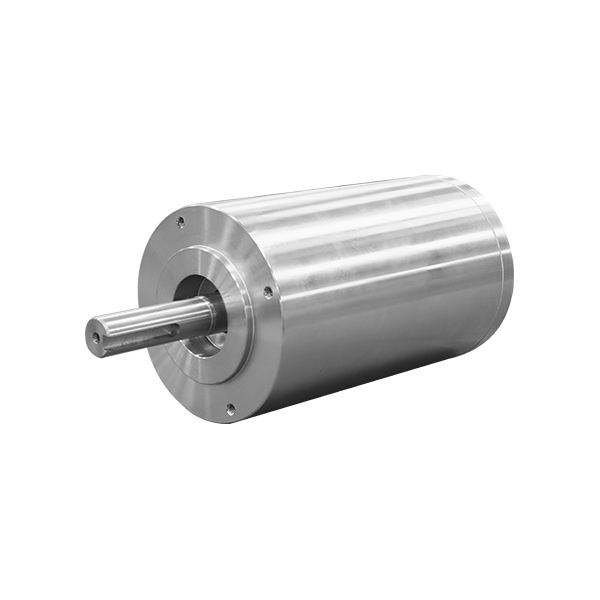

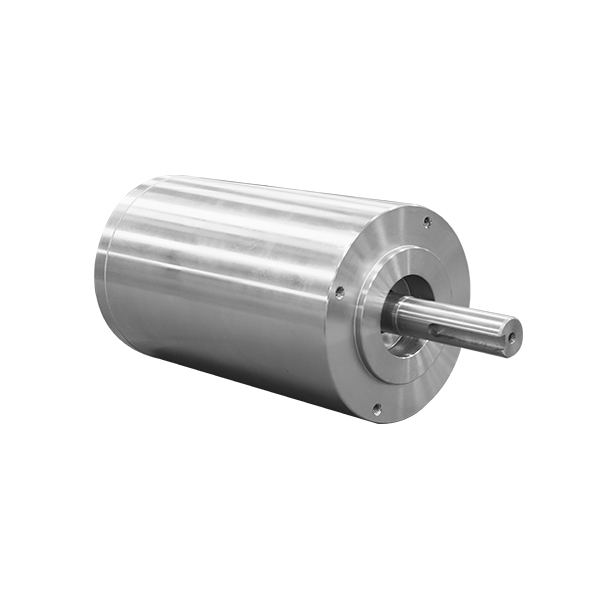

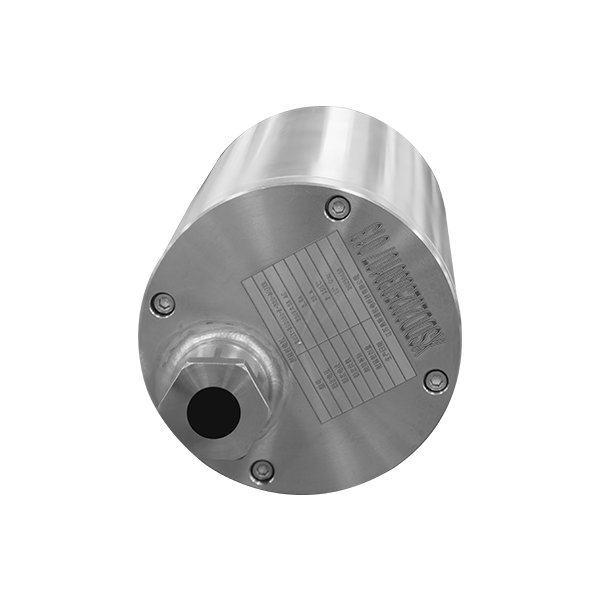

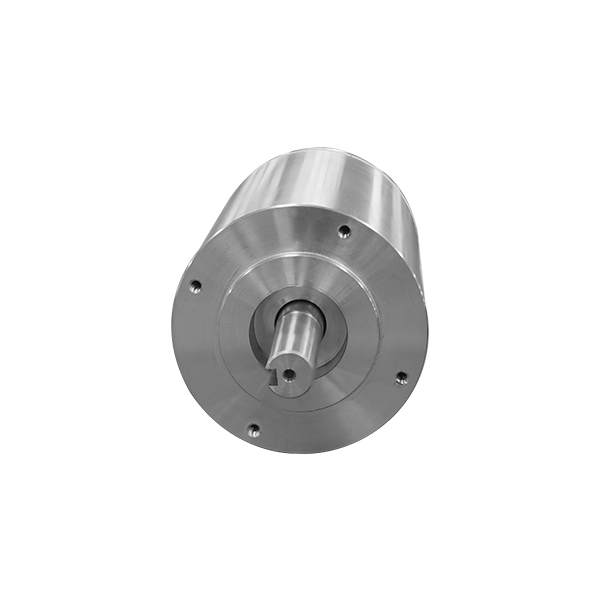

Custom Radiation-Resistant Motor

Product Overview

The WHEATSTONE Custom Radiation-Resistant Motor is specifically engineered for environments where motors are exposed to high levels of ionizing radiation, such as nuclear power plants, particle accelerators, medical equipment, and space or defense applications. By utilizing radiation-hardened materials, specialized insulation systems, and robust mechanical design, this motor maintains long-term reliability, safety, and performance in conditions that would rapidly degrade conventional motors.

Key Features

• Radiation Resistance – Motor components are built using radiation-hardened insulation, wire coatings, and structural materials to withstand cumulative doses exceeding industry requirements.

• Custom Engineering – Tailored designs are available for voltage, torque, cooling methods, and frame size to match specific project demands.

• High Reliability – Optimized for continuous operation in hazardous conditions with reduced maintenance needs.

• Thermal Stability – Advanced winding and cooling options ensure consistent performance under variable load conditions.

• Compact & Flexible – Available in special shapes, frameless kits, or sealed housings for integration into specialized equipment.

• Safety Compliance – Designed in accordance with international nuclear and radiation safety standards.

Technical Highlights

• Motor Type: Radiation-Resistant AC/DC or Servo Motor (Customizable)

• Radiation Tolerance: >1×10⁶ Gy (depending on application and material selection)

• Voltage Range: From low-voltage compact motors to high-voltage industrial drives

• Power Output: Fractional kW up to multi-kW configurations

• Cooling Options: Air-cooled, water-cooled, or oil-filled systems

• Protection Class: IP65 – IP68, with optional hermetic sealing

• Applications: Nuclear power facilities, particle accelerators, aerospace, defense systems, subsea radiation environments, and medical equipment

Motor Dimensions

Electrical Parameters
