Model Naming Rule

The naming rule of Servo drives model is as follows：

VSY         30         D          72       (GX）-   A

 ①              ②            ③              ④            ⑤          ⑥

Symbol	Naming instance
①	Servo drive of industrial grade
②	Rated Current (A) at sufficient heat dissipation
③	DC power supply
④	Maximum input DC power level, Voltage:72V
⑤	Speed feedback types: -Unmarked: Represents incremental ABZUVW feedback. - GX: Absolute feedback, resolver feedback.
⑥	Design version number:if the interface is changed with the same specifications,the order to record as A, B, C, etc. for identification

Product Specification

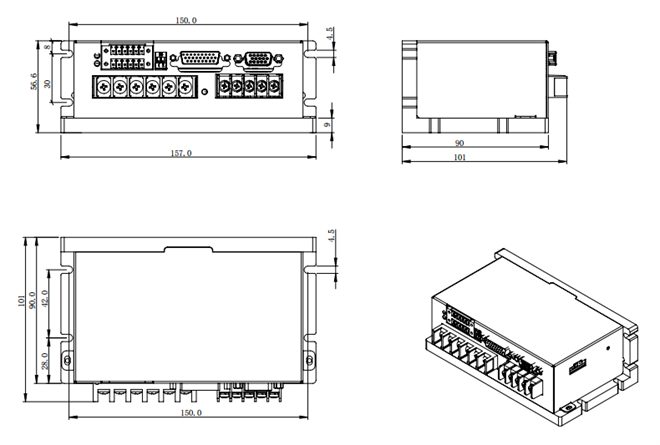

Drive Structure Diagram
