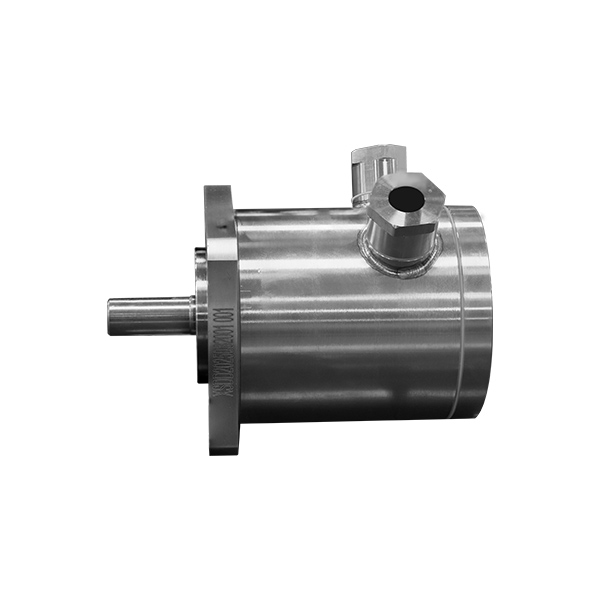

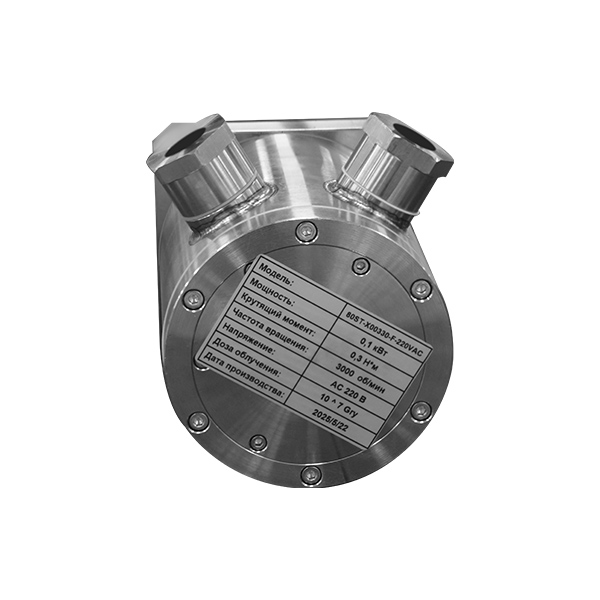

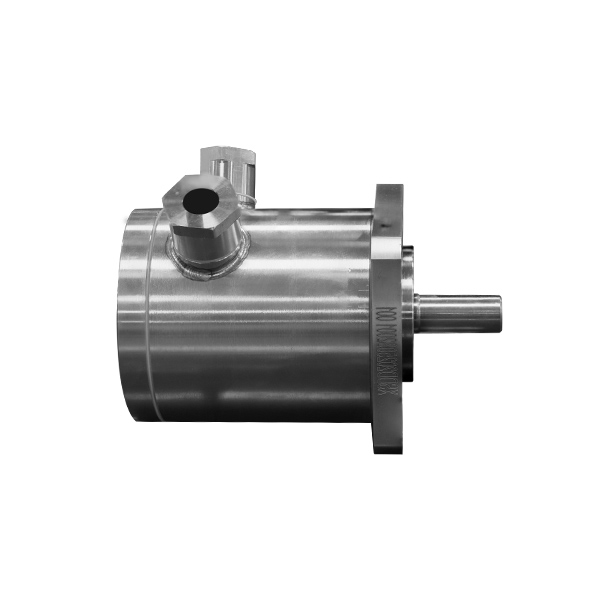

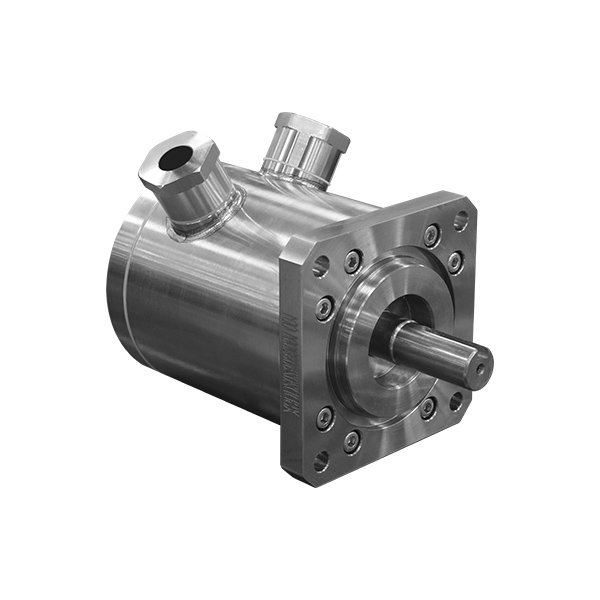

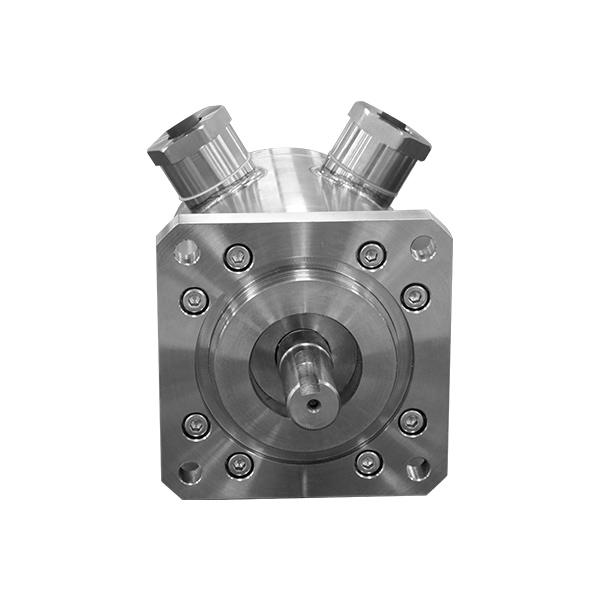

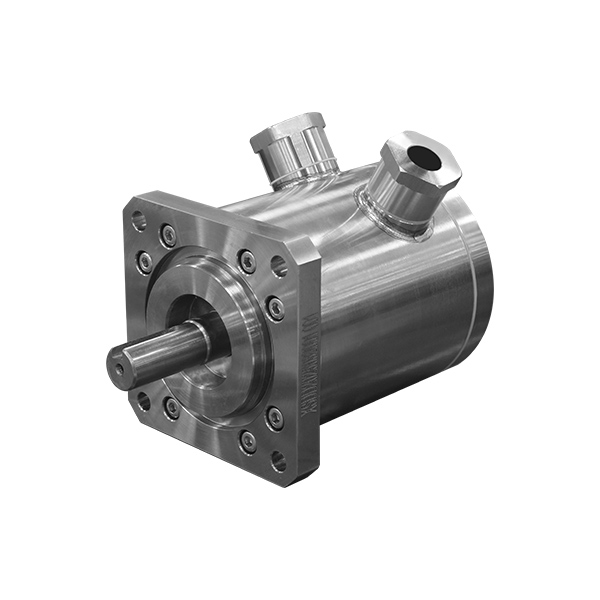

Deep-Water Radiation-Resistant Motor

Product Overview

The WHEATSTONE Deep-Water Radiation-Resistant Motor is specifically designed for harsh subsea environments where equipment must operate reliably under high hydrostatic pressure and radiation exposure. With advanced materials and specialized insulation systems, this motor ensures long-term durability, stable performance, and safety in challenging applications such as nuclear facilities, subsea robotics, and deep-ocean exploration.

Key Features

• Radiation Resistance – Special winding insulation and radiation-hardened materials maintain motor performance under high radiation fields.

• Deep-Water Capability – Pressure-compensated and sealed design supports continuous operation in subsea environments up to extreme depths.

• High Reliability – Engineered for long service life with reinforced insulation, corrosion protection, and thermal stability.

• Custom Design – Available in different frame sizes, power ratings, and cooling methods to meet project-specific requirements.

• Low Maintenance – Robust construction minimizes downtime and servicing needs in inaccessible environments.

• Compatibility – Can be integrated with servo systems, direct-drive mechanisms, and automated control platforms.

Technical Highlights

• Motor Type: Radiation-Resistant Deep-Water Motor (AC/DC or Servo Configurations Available)

• Depth Rating: Up to 3000 meters (customizable)

• Radiation Resistance: >1×10⁶ Gy (material-dependent, customizable)

• Voltage Range: Low- to high-voltage options based on application

• Power Output: Customizable, from compact fractional kW to multi-kW systems

• Cooling Options: Oil-filled, water-cooled, or natural convection

• Protection Class: IP68 or higher, pressure-compensated

• Applications: Subsea robotics, nuclear energy equipment, offshore systems, scientific research instruments, and radiation-intensive environments

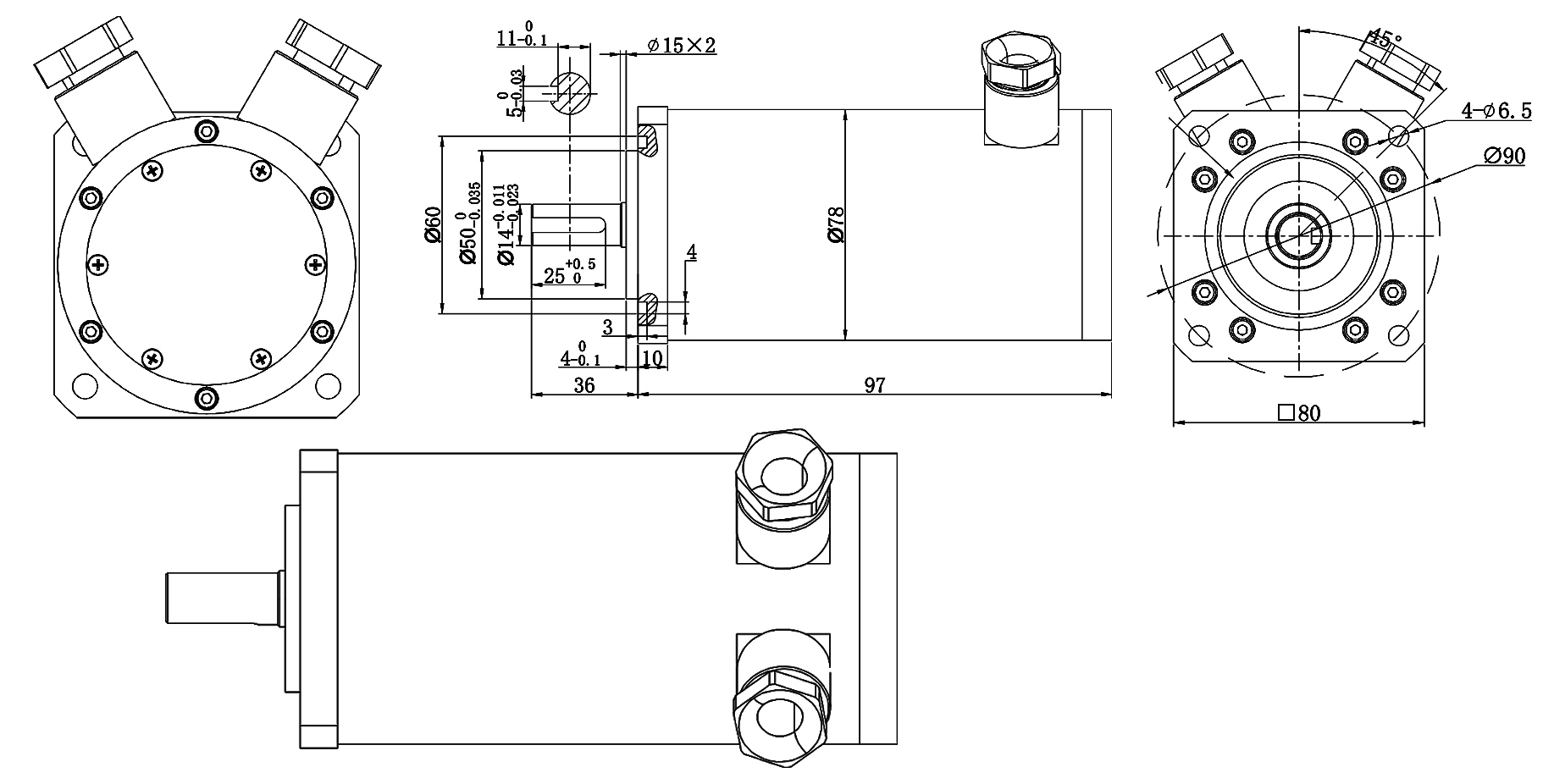

Motor Dimensions

Electrical Parameters

Main performance parameters
Rated Power(KW)	0.1	Maximum Torque(NM)	0.6
Rated Current(A)	0.75	Insulation Class	H 180℃
Rated speed(RPM)	3000	Safety Class	IP68
Rated Voltage(V)	220VAC	Radiation Resistance Rating(Gray)	10^7
Rated Torque(NM)	0.3	Weight（KG)

Operates at depths of 3,000 meters underwater

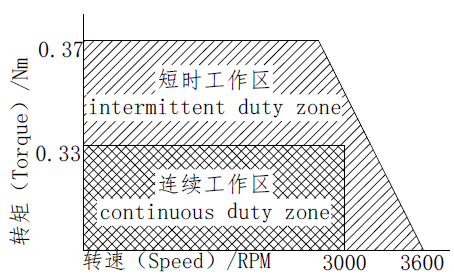

Torque-Speed Characteristics Curve
