High-Speed High-Vibration Motor
Product Overview

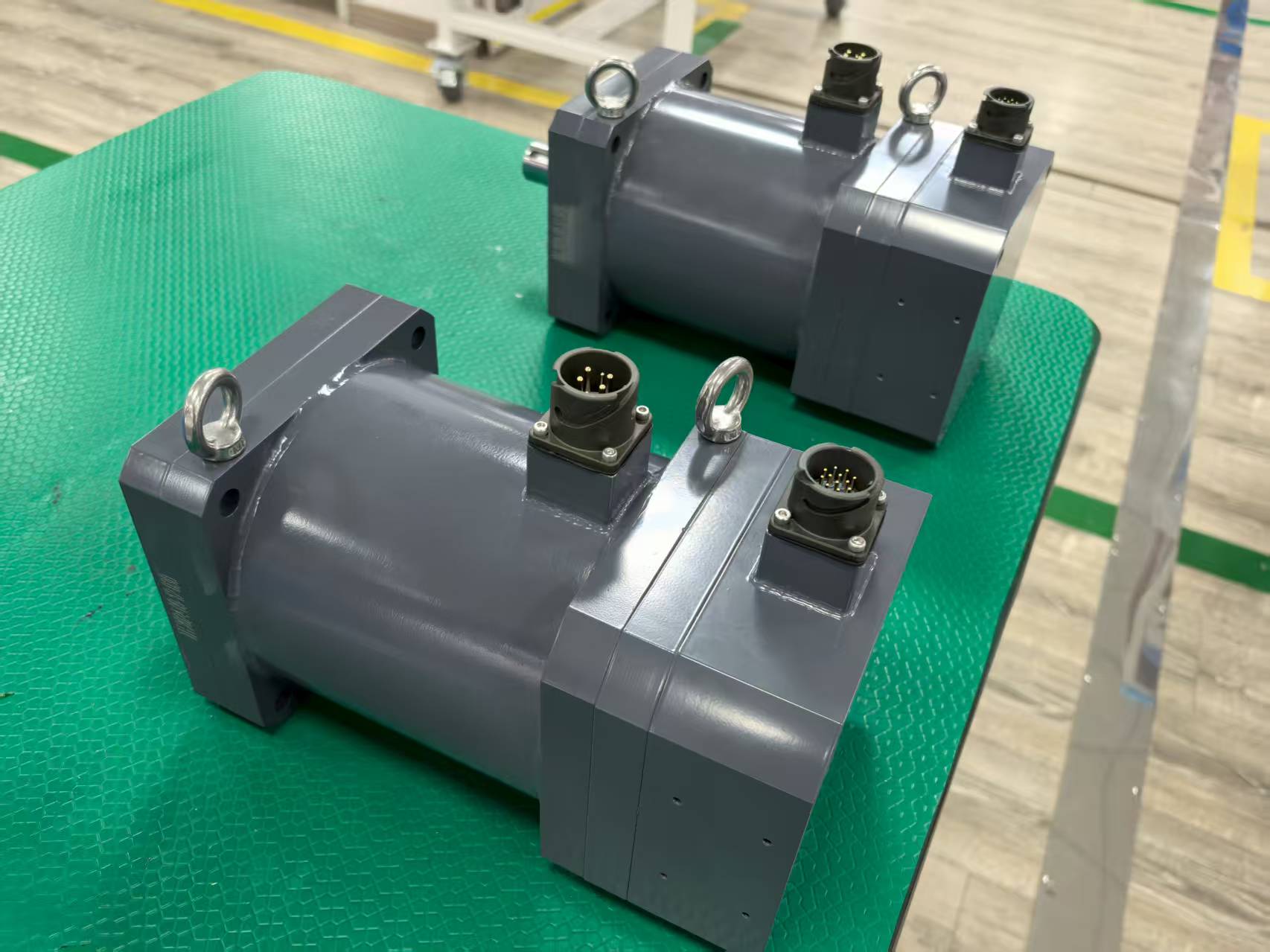

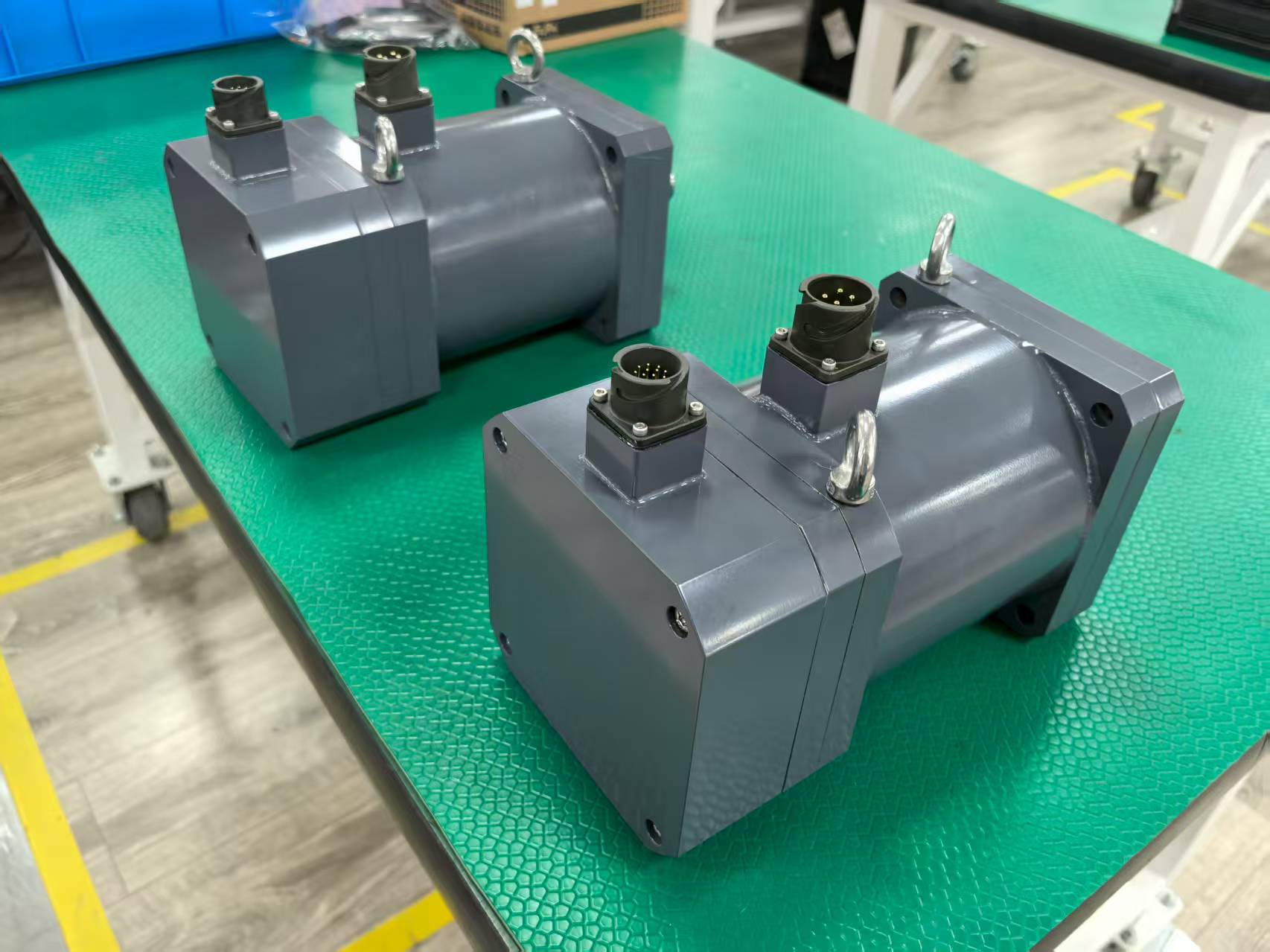

The WHEATSTONE High-Speed High-Vibration Motor is engineered to deliver reliable performance under extreme rotational speeds and severe vibration conditions. With robust mechanical construction, reinforced insulation, and advanced dynamic balancing, this motor ensures stable operation, extended service life, and precise control in applications where conventional motors would fail.
Key Features
High-Speed Operation – Optimized rotor and stator design allow stable operation at ultra-high rotational speeds.
Vibration Resistance – Designed with strengthened bearings, reinforced housing, and dynamic rotor balancing to withstand continuous vibration.
High Reliability – Durable materials and advanced insulation extend operating life in harsh industrial environments.
Precision Control – Compatible with servo and vector control systems for accurate speed and torque regulation.
Thermal Stability – Efficient cooling design ensures safe performance under continuous load.
Custom Design – Available in multiple sizes, voltages, and cooling options to meet specialized requirements.
Technical Highlights
Motor Type: High-Speed, High-Vibration Resistant Motor
Speed Range: Up to 30,000 rpm or customizable
Voltage Range: Low to high voltage options available
Torque Output: High torque-to-inertia ratio for fast response
Cooling Methods: Air cooling / water cooling / oil cooling
Protection Class: IP55 – IP68 depending on application
Housing Material: High-strength alloy with anti-vibration design
Applications: Vibration test benches, aerospace and defense systems, automotive testing, industrial machinery, and specialized research equipment
Motor Dimensions
Electrical Parameters
| Main performance parameters |
| Rated Power(KW) | 4.5 | Maximum Torque(NM) | 30 |
| Rated Current(A) | 11.5 | Insulation Class | F 155℃ |
| Rated Speed(RPM) | 3000 | Safety Class | IP56 |
| Rated Voltage(V) | 380VAC | Motor Shock Protection | Maximum 50g |
| Rated Torque(NM) | 15 | Weight(KG) |
|
Torque-Speed Characteristics Curve
