Product Description

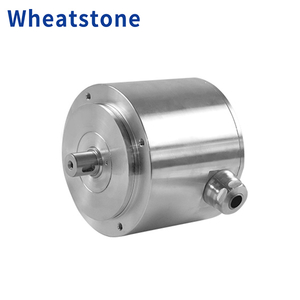

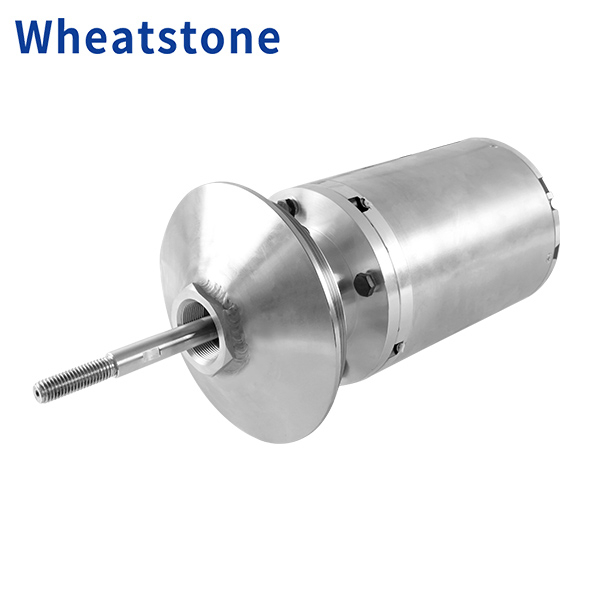

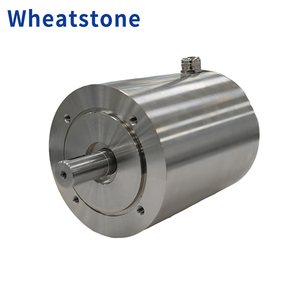

The WHEATSTONE Washdown & Food Grade Motors. Food-grade brushless motors: specialty motors that meet both stringent food safety standards and high-performance drive requirements
High Efficiency and Energy Savings: Because friction losses from brushes are eliminated, these motors typically offer high efficiency; some models achieve an energy efficiency rating equivalent to IE5, resulting in greater energy savings during long-term operation.
Long Service Life and Low Maintenance: The absence of carbon brush wear means the motor has a longer service life and significantly reduced maintenance requirements, making it suitable for production lines that require long periods of continuous operation.
Precise Control: Brushless motors inherently offer excellent speed regulation and control performance. When paired with a driver, they enable high-precision speed and torque control, making them suitable for precision processes such as filling and packaging.
Motor Dimensions
Electrical Parameters
| Main performance parameters | |||
| Rated Power(KW) | 1 | Rated Speed(RPM) | 1000 |
| Rated Torque(NM) | 10 | Insulation Class | F 155℃ |
| Rated Current(A) | 52 | Protection Class | IP65 |
| Rated Voltage(V) | 24VDC | Weight(KG) | |
Brushless motor phase sequence
