145ST-H07710-380V
| Quantity: | |
|---|---|
Product Description

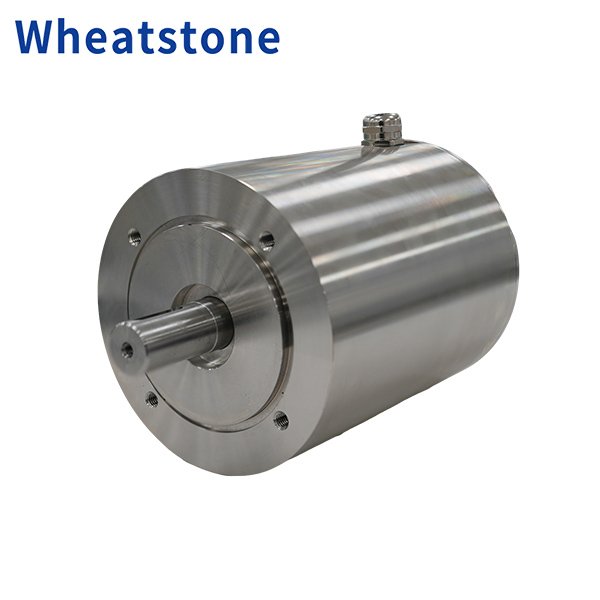

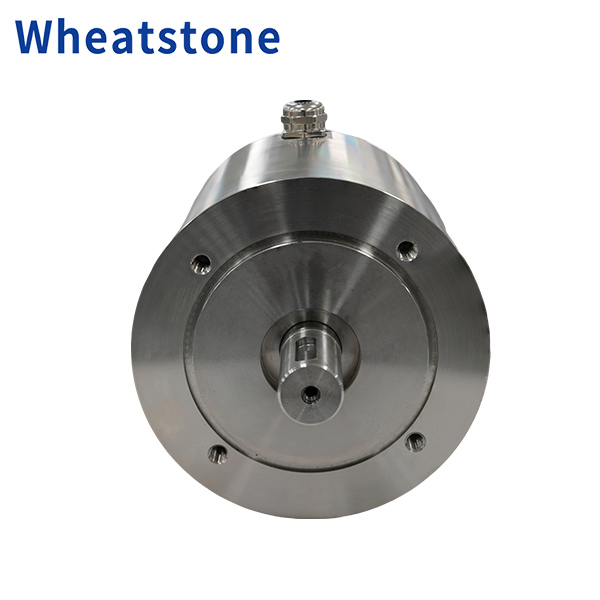

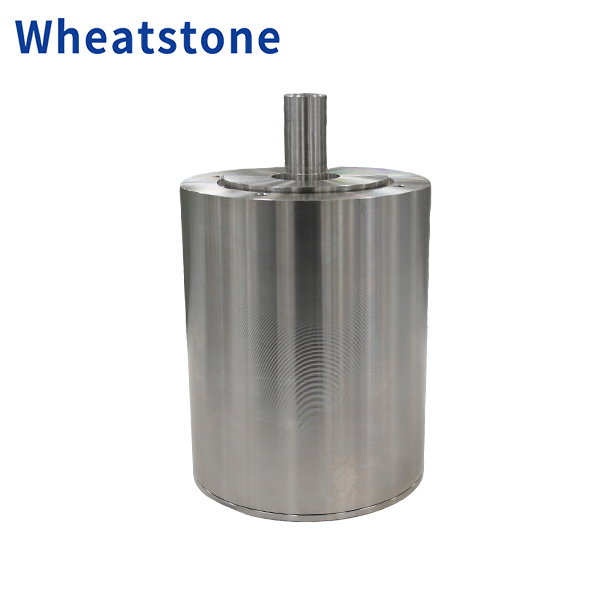

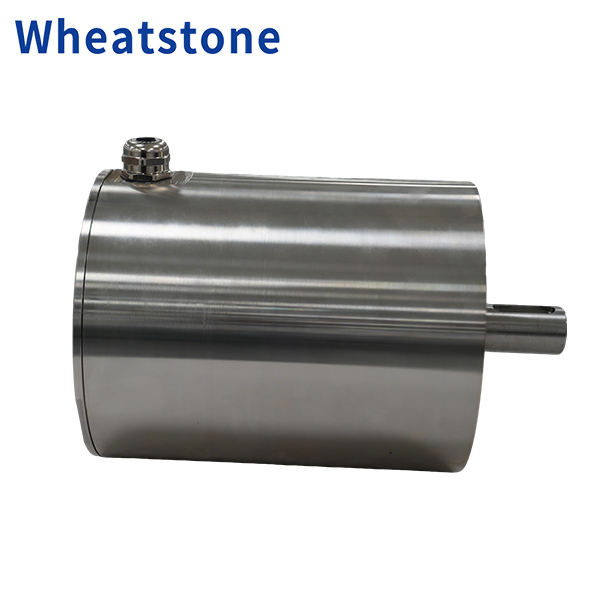

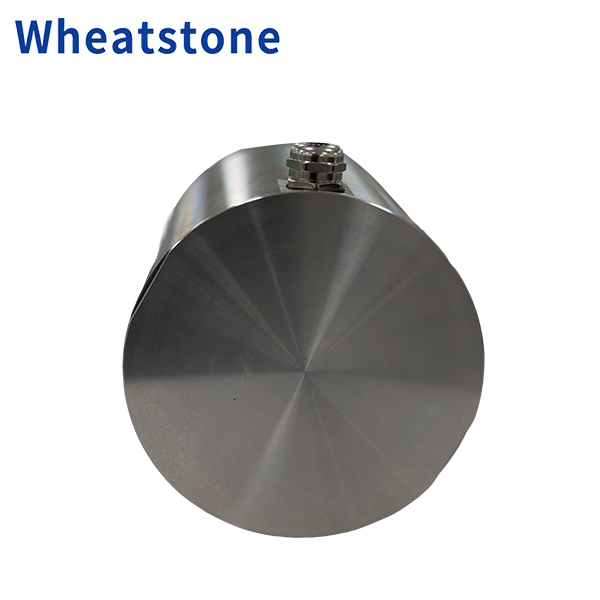

The WHEATSTONE Washdown & Food Grade Motors. Food-grade permanent magnet synchronous motors are specialized motors that simultaneously meet the requirements for high-efficiency, precise drive performance and stringent food safety and hygiene standards.
1.Ultra-Clean “Hygienic Design”: To eliminate the risk of contamination, these motors typically feature a smooth 316L stainless steel housing that eliminates any crevices or surfaces where dirt or debris could accumulate, making them easy to rinse and disinfect. Their protection rating often reaches the extremely high IP69K standard, allowing them to withstand direct high-pressure, high-temperature water jets.
2.Comprehensive “Food-Grade” Safety Certifications: From materials to design, these motors strictly adhere to international standards. Not only are all parts that may come into contact with food made from FDA-compliant materials, but the entire motor must also pass authoritative hygiene certifications such as EHEDG (European Hygienic Engineering and Design Group) and 3A. This means it supports Clean-in-Place (CIP), allowing for thorough cleaning without disassembly.
3.High-efficiency, high-precision permanent magnet synchronous performance: While meeting hygiene requirements, it retains the advantages of permanent magnet synchronous motors, including high efficiency, high-precision control, and a wide speed regulation range. Some products feature a smooth design and can be equipped with optional special surface treatment technologies, making them particularly suitable for hygiene-sensitive applications such as internal logistics in the food, beverage, and pharmaceutical industries.
Electrical Parameters
| Main performance parameters | |||
| Rated Power(KW) | 0.8 | Rated Voltage(V) | 380VAC |
| Rated Torque(NM) | 7.7 | Rated Current(A) | 2.9 |
| Peak Torque(NM) | 18 | Insulation Class | H |
| Rated speed | 1000 | Protection Class | IP67 |
| Maximum speed(RPM) | 1800 | Weight(kg) | 10.5 |
Application Industry
Food-grade permanent magnet synchronous motors are primarily used in applications within the food, beverage, and pharmaceutical industries where there are high requirements for hygiene, safety, and energy efficiency.
Stringent Hygiene and Cleaning Environments
Meets the highest hygienic design standards: The motor housing is smooth and free of dead corners to prevent bacterial growth, and complies with international hygienic design standards such as EHEDG and 3A. Many products are made of 316L stainless steel, which offers excellent corrosion resistance.
Withstands high-pressure, high-temperature washing: The protection rating typically reaches IP69K, enabling the equipment to withstand direct washing with high-pressure, high-temperature water jets, effectively reducing downtime caused by cleaning.
Safe and Reliable Materials: Parts in contact with food use materials and food-grade lubricants that comply with FDA standards, fundamentally reducing the risk of contamination and product recalls.
High-Efficiency Energy Conservation and Precise Control Applications
Energy-Saving Retrofits for Large-Scale Equipment: In large refrigeration units at food processing plants, replacing traditional induction motors with permanent magnet synchronous motors allows for automatic speed adjustment based on load, resulting in significant energy savings. For example, Sinian Foods has implemented such permanent magnet variable-frequency retrofits on refrigeration units at multiple facilities nationwide.
High-Precision Processing and Conveying: In processes requiring precise control—such as filling, packaging, and sorting—permanent magnet synchronous motors also provide excellent dynamic response and control performance.
