60 Base Radiation Hardened Servo Motors with Aviation Connectors

Product Overview

The WHEATSTONE 60 Radiation Hardened Servo Motors with Aviation Connectors is specifically engineered for high-radiation environments where conventional servo motors cannot operate reliably. By utilizing radiation-hardened materials, advanced insulation systems, and a protective wire cover design, this motor delivers stable torque, precise positioning, and extended service life under extreme conditions such as nuclear power plants, aerospace missions, and research laboratories.

Key Features

• Radiation Resistance – Built with radiation-hardened insulation, windings, and structural materials for long-term stability in high-dose environments.

• Protective Aviation Connectors –The combination of “aviation connectors—quick-connect plugs + radiation-resistant materials + highly reliable design” addresses the core requirement in the nuclear and aerospace industries for equipment that must withstand radiation environments while also allowing for quick replacement. It is not merely an actuator but a highly integrated, maintenance-friendly system-level solution.

• Precision Control – Closed-loop servo system with high accuracy and smooth motion performance.

• Durable Construction – Reinforced bearings, optimized sealing, and corrosion-resistant coatings extend motor lifespan.

• Thermal Stability – Designed to operate across a wide temperature range with minimal performance loss.

• Customizable Options – Winding configuration, encoder type, and mechanical interface can be tailored to application requirements.

Technical Highlights

• Motor Type: Radiation-Resistant AC/DC Servo Motor

• Frame Size: 60 mm series

• Control: Closed-loop with encoder feedback

• Radiation Tolerance: >1×10⁶ Gy (application dependent)

• Insulation System: Radiation-hardened, vacuum-compatible insulation

• Torque Output: High torque density in compact design

• Temperature Range: -196°C to +200°C (custom versions available)

• Protection: Wire cover for cable shielding and enhanced durability

• Applications: Nuclear energy systems, aerospace equipment, particle accelerators, research facilities, and defense technologies

Motor Model

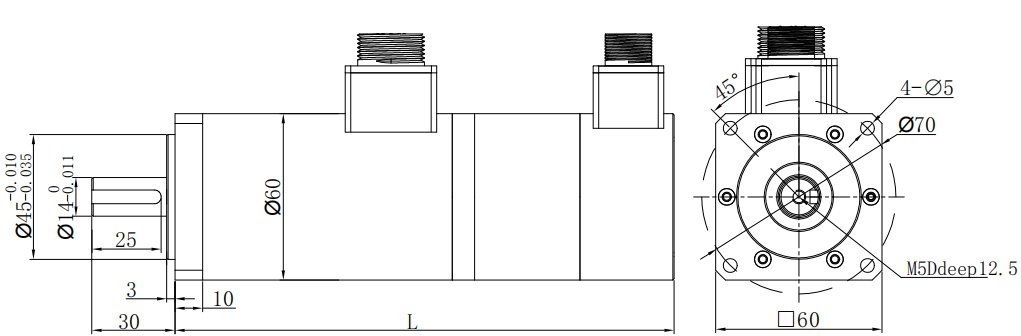

Motor Dimensions

Radiation Hardened Servo Motors with Wire Cover are, simply put, “special forces” capable of operating reliably in environments with high levels of nuclear radiation. Their core applications are concentrated in the following cutting-edge and highly challenging fields:

1.The Nuclear Industry: The Most Critical Area of Application

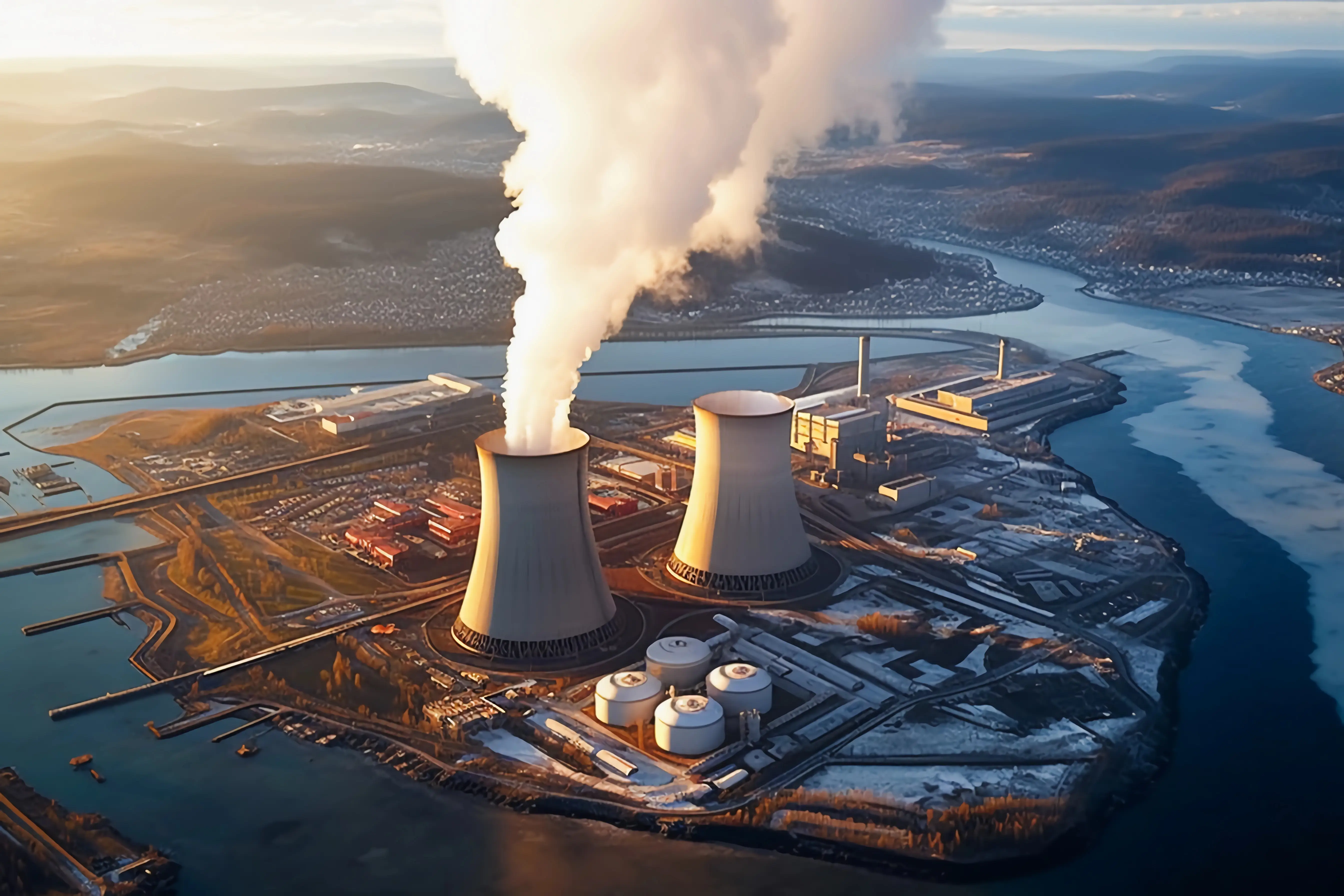

Nuclear Power Plant Operations and Maintenance: Powering key equipment such as control rods, cooling pumps, and valves to perform precise movements, ensuring the safe operation of the reactor.

Spent Fuel Reprocessing: In highly radioactive hot cells, providing power to robotic arms, cranes, and other machinery responsible for handling the fuel, enabling them to perform hazardous operations such as cutting and dissolving the fuel.

Nuclear Facility Decommissioning and Waste Management: These systems power remotely operated robots used to cut and recover highly radioactive components, maximizing operator safety. For example, the robotic arms in the hot cells at China’s Spallation Neutron Source and nuclear fuel reprocessing plants are typical applications.

Special Platform Applications: They are also used in equipment such as accident residual heat removal pumps on offshore nuclear-powered platforms, where reliable operation is required even under accident conditions.

2.Aerospace: Conquering Extreme Space Environments

In space exploration, motors must remain reliable even in the face of cosmic rays and the vacuum of space.

Spacecraft and Satellites: Used for adjusting satellite attitude, controlling antenna pointing, and deploying solar panels, these motors must withstand the effects of high-energy particles and cosmic rays.

Space Observation Equipment: These motors provide high-precision, highly reliable actuation for adjusting the optical systems of space telescopes, switching filters, and other functions.

3.Nuclear Medicine and Research: Balancing Precision and Safety

This field places extremely high demands on equipment precision and stability in radiation environments.

Cutting-Edge Cancer Treatment: In neutron-targeted therapy (NCT) equipment, frameless motors are commonly used in conjunction with radiation-shielded enclosures to precisely position patients and adjust the beam, ensuring treatment accuracy. Redundant systems are also employed to guarantee safety.

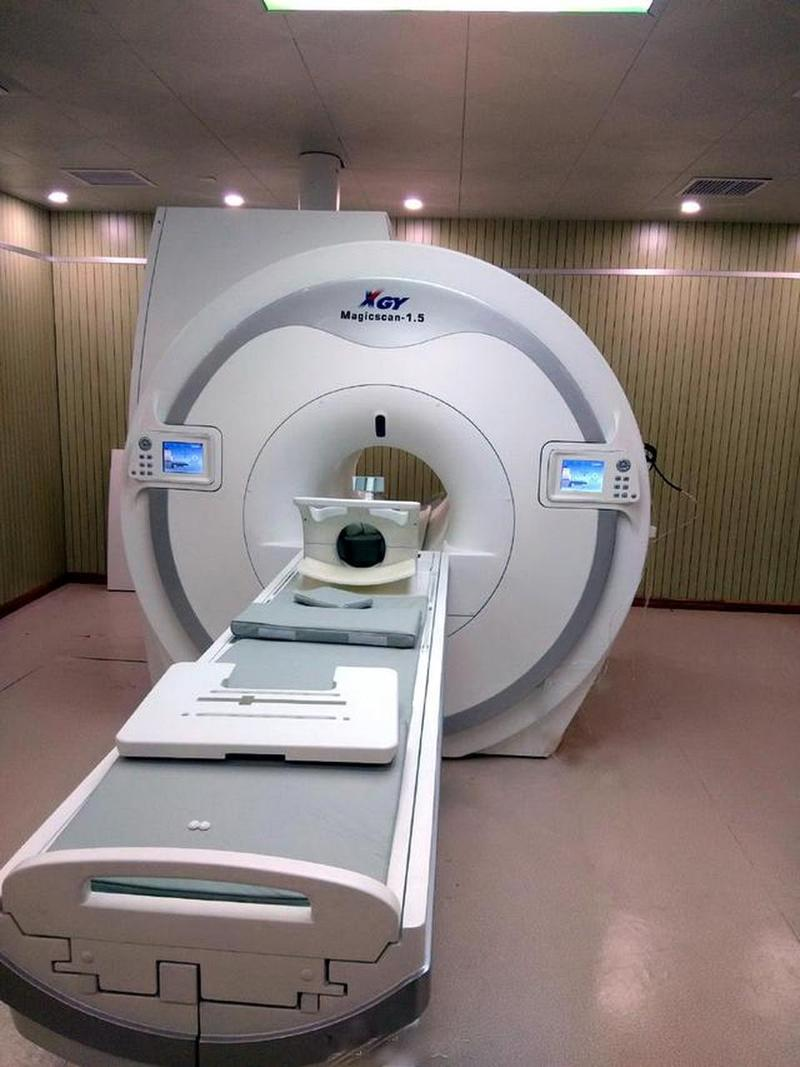

Medical Imaging and Radiology Equipment: Used in X-ray machines, CT scanners, linear accelerators, and other devices to drive the rotation of scanning gantries and the movement of collimators, ensuring the safety of patients and operators.

High-Energy Physics Research: In large-scale scientific facilities such as particle accelerators (e.g., spallation neutron sources), these systems are used to control equipment such as target station shielding and detectors, enabling them to operate stably in intense mixed radiation fields to acquire experimental data.
