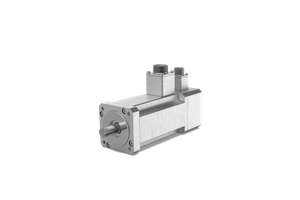

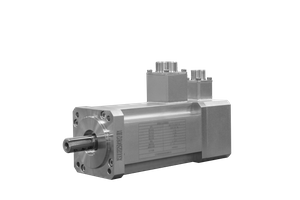

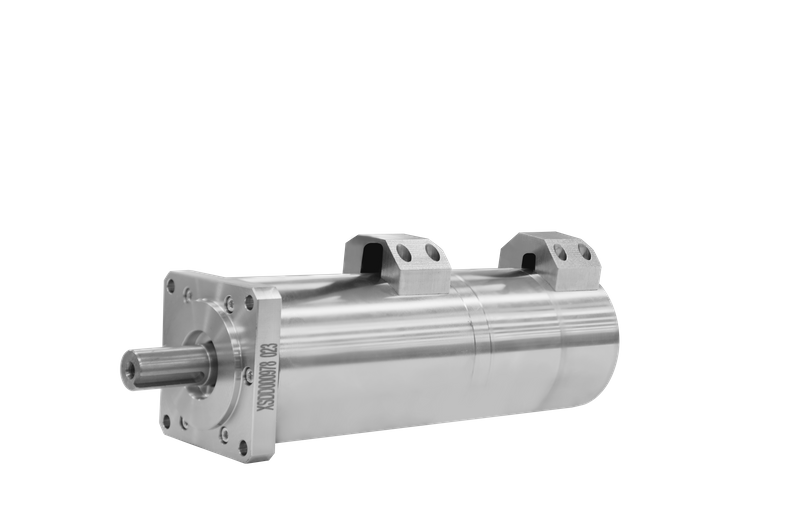

60 Radiation-Resistant Servo Motor with Wire Cover
wheatstone
Availability: | |
---|---|
Quantity: | |
Product Description
The WHEATSTONE 60 Radiation-Resistant Servo Motor with Wire Cover is specifically engineered for high-radiation environments where conventional servo motors cannot operate reliably. By utilizing radiation-hardened materials, advanced insulation systems, and a protective wire cover design, this motor delivers stable torque, precise positioning, and extended service life under extreme conditions such as nuclear power plants, aerospace missions, and research laboratories.
Radiation Resistance – Built with radiation-hardened insulation, windings, and structural materials for long-term stability in high-dose environments.
Protective Wire Cover – Provides additional shielding and protection for motor wiring, enhancing reliability in harsh conditions.
Precision Control – Closed-loop servo system with high accuracy and smooth motion performance.
Durable Construction – Reinforced bearings, optimized sealing, and corrosion-resistant coatings extend motor lifespan.
Thermal Stability – Designed to operate across a wide temperature range with minimal performance loss.
Customizable Options – Winding configuration, encoder type, and mechanical interface can be tailored to application requirements.
Motor Type: Radiation-Resistant AC/DC Servo Motor
Frame Size: 60 mm series
Control: Closed-loop with encoder feedback
Radiation Tolerance: >1×10⁶ Gy (application dependent)
Insulation System: Radiation-hardened, vacuum-compatible insulation
Torque Output: High torque density in compact design
Temperature Range: -196°C to +200°C (custom versions available)
Protection: Wire cover for cable shielding and enhanced durability
Applications: Nuclear energy systems, aerospace equipment, particle accelerators, research facilities, and defense technologies
Motor Model
Motor Model | L(mm) |
60ST-X006XX-F-XXV-Y-5P | 122 |
60ST-X013XX-F-XXV-Y-5P | 142 |
60ST-X020XX-F-XXV-Y-5P | 162 |
60ST-X006XXB-F-XXV-Y-5P | 160 |
60ST-X013XXB-F-XXV-Y-5P | 180 |
60ST-X020XXB-F-XXV-Y-5P | 200 |
Motor Dimensions
