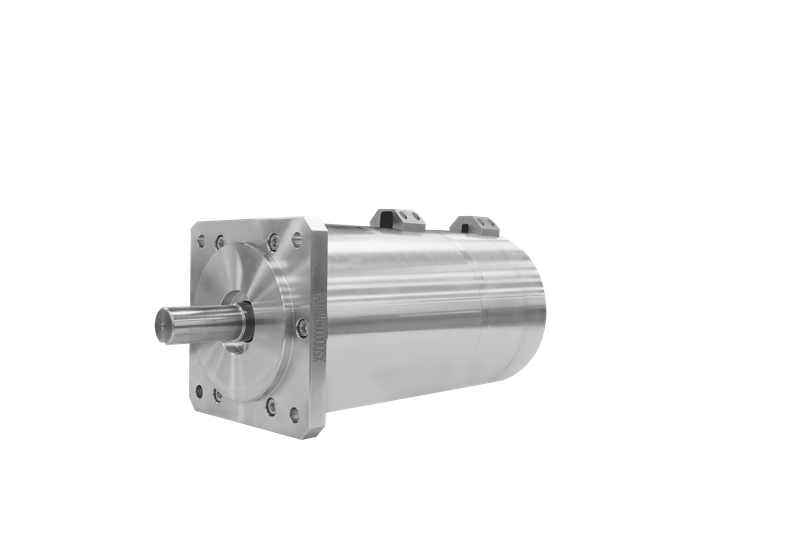

130 Radiation-Resistant Servo Motor with Wire Cover

Product Overview

The WHEATSTONE 130 Radiation-Resistant Servo Motor with Wire Cover is specifically engineered for high-radiation environments where conventional servo motors cannot operate reliably. By utilizing radiation-hardened materials, advanced insulation systems, and a protective wire cover design, this motor delivers stable torque, precise positioning, and extended service life under extreme conditions such as nuclear power plants, aerospace missions, and research laboratories.

Key Features

• Radiation Resistance – Built with radiation-hardened insulation, windings, and structural materials for long-term stability in high-dose environments.

• Protective Wire Cover – Provides additional shielding and protection for motor wiring, enhancing reliability in harsh conditions.

• Precision Control – Closed-loop servo system with high accuracy and smooth motion performance.

• Durable Construction – Reinforced bearings, optimized sealing, and corrosion-resistant coatings extend motor lifespan.

• Thermal Stability – Designed to operate across a wide temperature range with minimal performance loss.

• Customizable Options – Winding configuration, encoder type, and mechanical interface can be tailored to application requirements.

Technical Highlights

• Motor Type: Radiation-Resistant AC/DC Servo Motor

• Frame Size: 130 mm series

• Control: Closed-loop with encoder feedback

• Radiation Tolerance: >1×10⁶ Gy (application dependent)

• Insulation System: Radiation-hardened, vacuum-compatible insulation

• Torque Output: High torque density in compact design

• Temperature Range: -196°C to +200°C (custom versions available)

• Protection: Wire cover for cable shielding and enhanced durability

• Applications: Nuclear energy systems, aerospace equipment, particle accelerators, research facilities, and defense technologies

Motor Model

Motor Dimensions
