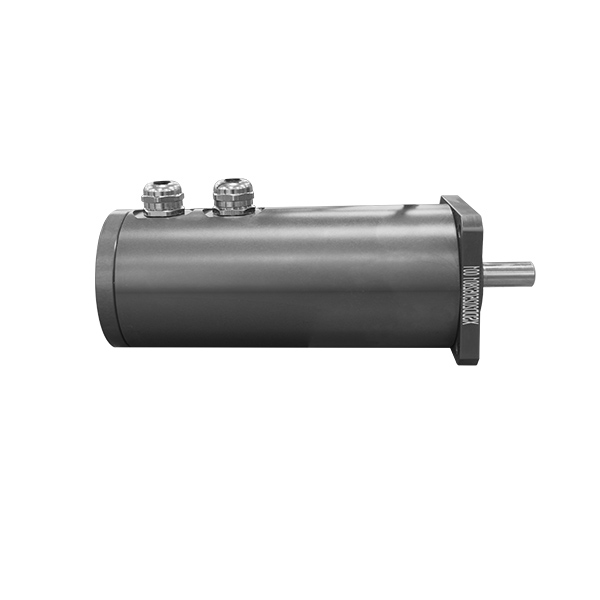

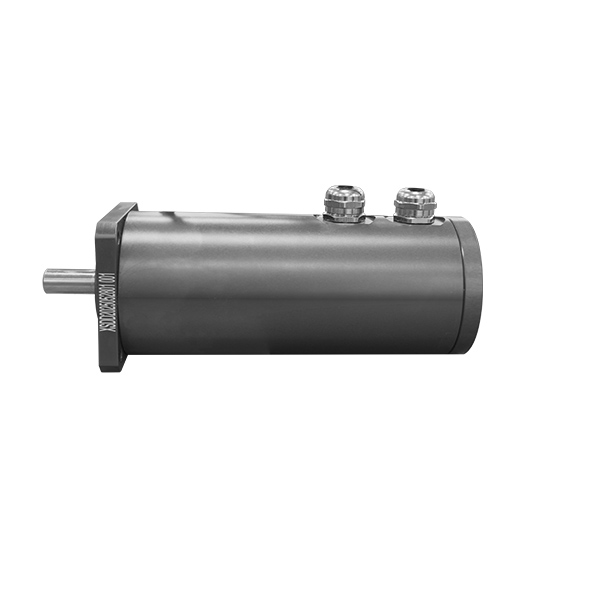

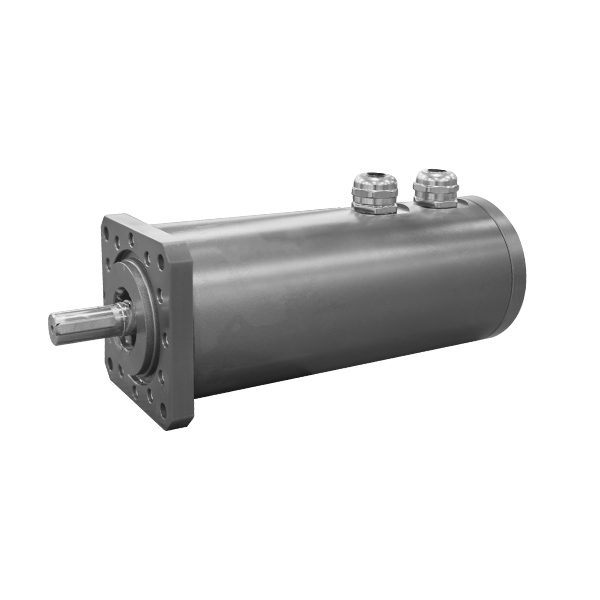

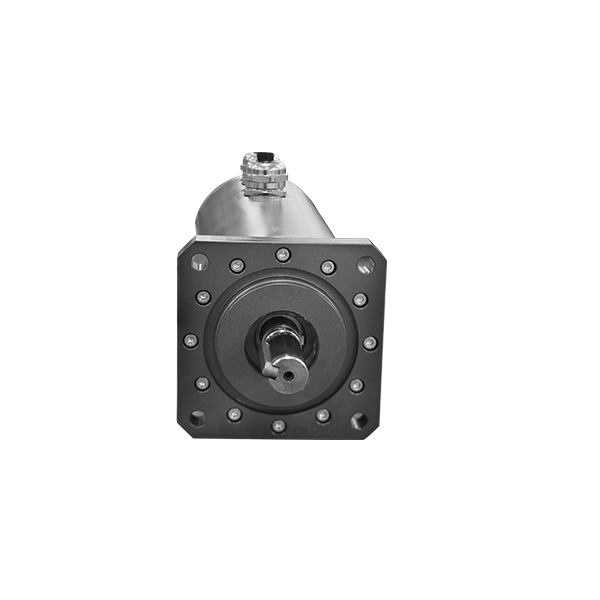

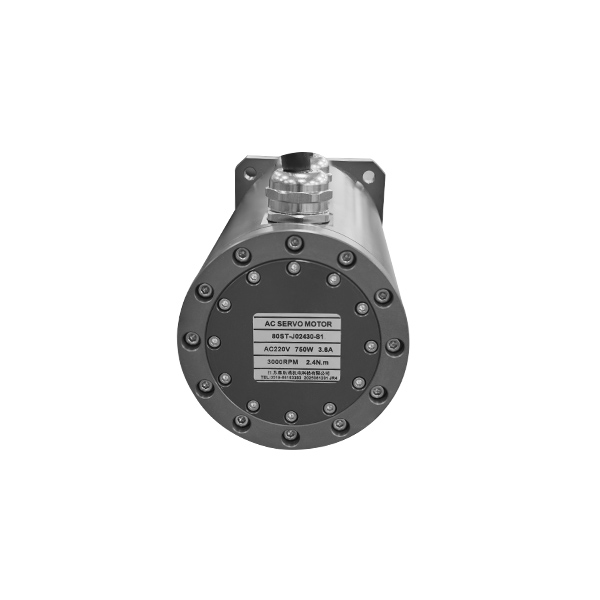

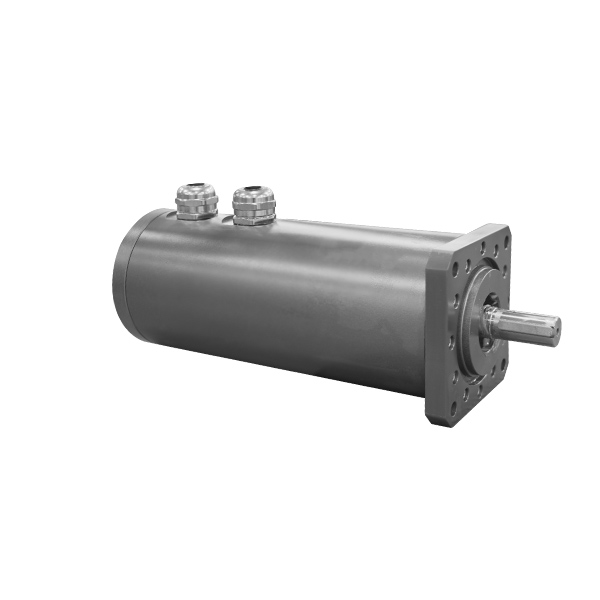

Deep-Water AC Servo Motor – Submersion 1 Meter
Product Overview
The WHEATSTONE Deep-Water AC Servo Motor is designed for reliable operation in harsh environments where water exposure is unavoidable. Engineered for submersion up to 1 meter depth, this motor combines waterproof protection with high-performance servo control, making it ideal for marine, underwater robotics, food processing, and other demanding applications.
Key Features
Submersion Capability: Operates reliably when submerged in water up to 1 meter.
High Protection Rating: Advanced sealing technology ensures waterproof and dustproof performance.
Precision Control: Delivers accurate torque and speed regulation with AC servo technology.
Durable Construction: Corrosion-resistant housing suitable for wet and aggressive environments.
Application Ready: Perfect for underwater machinery, marine equipment, and industrial processing lines.
Technical Highlights
Motor Type: AC Servo Motor
Submersion Depth: 1 meter
Cooling Method: Natural / Optional water-cooled design
Housing: Stainless steel or coated alloy for anti-corrosion
Insulation: Moisture-resistant winding insulation
Motor Dimensions
Electrical Parameters
| Main performance parameters |
| Rated Power(KW) | 0.75 | Rotor of Inertia(kg.cm²) | 0.78 |
| Rated current(A) | 3.6 | Rated Voltage(V) | 220VAC |
| Rated speed(RPM) | 3000 | Insulation Class | F 155℃ |
| Rated Torque(NM) | 2.4 | Safety Class | IP68(1 meter underwater) |
| Maximum Torque(NM) | 7.2 | Weight(KG) |
|
Torque-Speed Characteristics Curve
