60ST-H00625-300V-NY
wheatstone
| Quantity: | |
|---|---|
Product Description

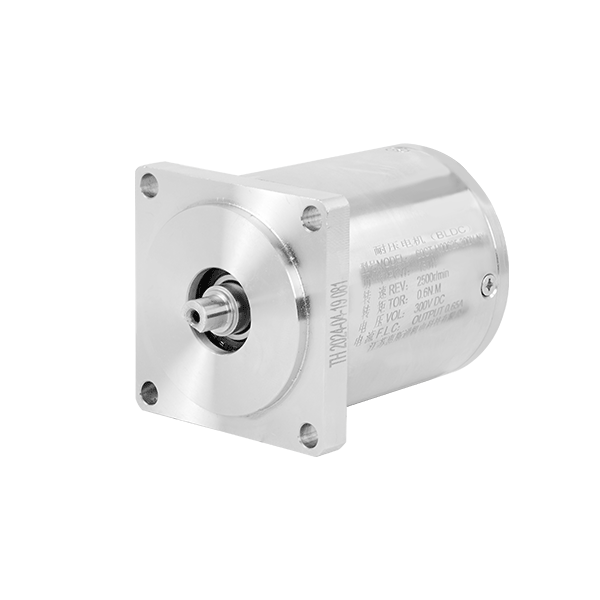

The WHEATSTONE Deep-Water Oil-Filled DC Servo Motor is engineered for ultra-deep subsea operations with reliable performance at depths up to 2250 meters. Featuring an oil-filled and pressure-compensated structure, it ensures stable operation under extreme hydrostatic pressure while maintaining precision motion control. Built with premium corrosion-resistant materials, his motor is ideal for continuous operation in harsh deep-ocean environments.
2250-Meter Submersion Capability – Designed for ultra-deep subsea missions and exploration.
Oil-Filled & Pressure-Compensated Design – Balances external pressure and eliminates water ingress.
Precision Servo Control – Accurate torque, speed, and position regulation for demanding underwater applications.
High Efficiency & Reliability – Optimized winding insulation and oil-filled cavity reduce stress and extend service life.
Corrosion-Resistant Housing – Available in stainless steel or titanium alloy for long-term seawater resistance.
Application Versatility – Suitable for subsea robotics, AUVs/ROVs, offshore drilling equipment, and deep-ocean research systems.
Motor Type: Oil-Filled DC Servo Motor
Maximum Submersion Depth: 2250 meters
Protection Level: IP68+ / Pressure-compensated
Housing Options: Stainless steel / Titanium alloy
Cooling Method: Oil-filled cavity with natural convection / optional liquid-cooled system
Customization: Torque, speed, and gearbox integration available
Electrical Parameters
| Main performance parameters | |||
| Rated Power(KW) | 0.15 | Motor withstand pressure | <22.5Mpa |
| Rated current(A) | 0.65 | Rated Voltage(V) | 300VDC |
| Rated speed(RPM) | 2500 | Insulation Class | F 155℃ |
| Rated Torque(NM) | 0.6 | Weight(KG) | |
| Cooling method | liquid cooling | ||
