86ST-H01630-24V-S450/86ST-H02420-24V-S450
| Quantity: | |
|---|---|

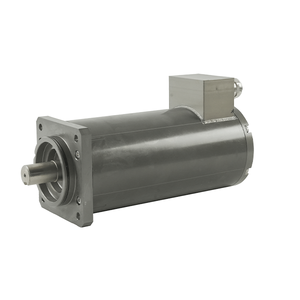

Product Description

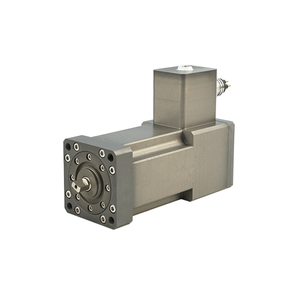

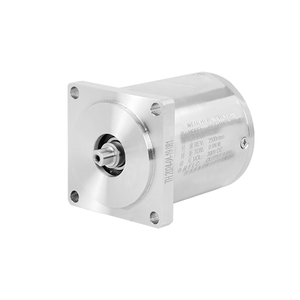

The WHEATSTONE Deep-Water AC Servo Motor is designed for reliable operation in harsh environments where water exposure is unavoidable. Engineered for submersion up to 50 meter depth, this motor combines waterproof protection with high-performance servo control, making it ideal for marine, underwater robotics, food processing, and other demanding applications.
Submersion Capability: Operates reliably when submerged in water up to 1 meter.
High Protection Rating: Advanced sealing technology ensures waterproof and dustproof performance.
Precision Control: Delivers accurate torque and speed regulation with AC servo technology.
Durable Construction: Corrosion-resistant housing suitable for wet and aggressive environments.
Application Ready: Perfect for underwater machinery, marine equipment, and industrial processing lines.
Motor Type: AC Servo Motor
Submersion Depth: 50 meter
Cooling Method: Natural / Optional water-cooled design
Housing: Stainless steel or coated alloy for anti-corrosion
Insulation: Moisture-resistant winding insulation
Motor Model
| Motor Model | L(mm) |
| 86ST-H01630-24V-S450 | 99 |
| 86ST-H02420-24V-S450 | 129 |
Motor Dimensions
Electrical Parameters
| Main performance parameters(86ST-H02420-24V-S450) | |||
| Rated Power(KW) | 0.5 | Operating temperature range(℃） | -54~+65℃ |
| Rated current(A) | 27 | Rated Voltage(V) | 24VDC |
| Rated speed(RPM) | 2000 | Insulation Class | F 155℃ |
| Rated Torque(NM) | 2.4 | Safety Class | Withstands 4.5 MPa pressure |
| Maximum Torque(NM) | 4.8 | Weight(KG) | |
| Main performance parameters(86ST-H01630-24V-S450) | |||
| Rated Power(KW) | 0.5 | Operating temperature range(℃） | -54~+65℃ |
| Rated current(A) | 24.5 | Rated Voltage(V) | 24VDC |
| Rated speed(RPM) | 3000 | Insulation Class | F 155℃ |
| Rated Torque(NM) | 1.6 | Safety Class | Withstands 4.5 MPa pressure |
| Maximum Torque(NM) | 3.2 | Weight(KG) | 4.3 |
Note:
The entire motor assembly meets salt spray resistance requirements (including connectors).
The surface roughness of the motor mounting flange meets 1.6.
Temperature requirements: -54 to +65°C

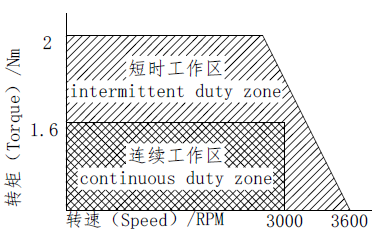

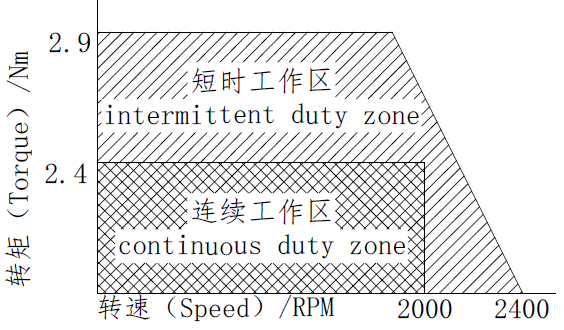

Torque-Speed Characteristics Curve
86ST-H02420-24V-S450
86ST-H01630-24V-S450
