230ST-X48030-196V-NY
wheatstone
| Quantity: | |
|---|---|
Product Description

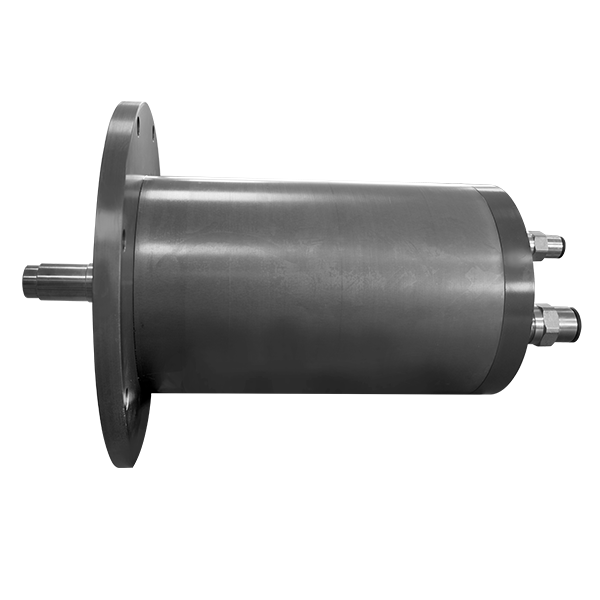

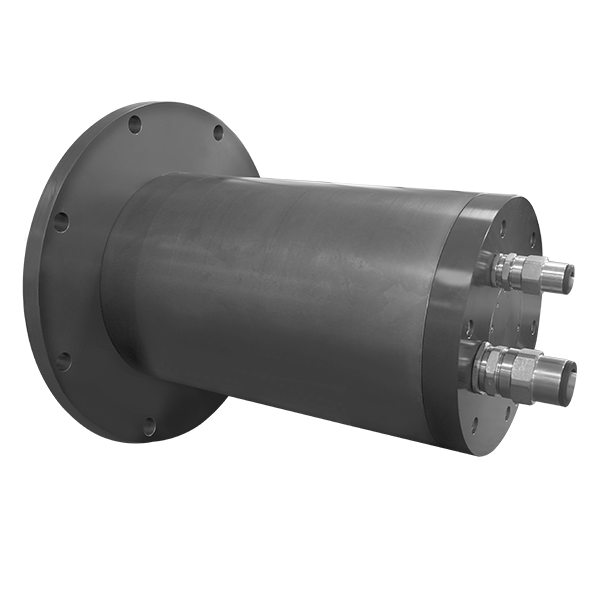

The WHEATSTONE Deep-Water DC Servo Motor is designed for ultra-deep subsea operations with reliable performance at depths of up to 3000 meters. Engineered with a pressure-resistant and waterproof structure, it delivers precise servo control, high efficiency, and long service life in extreme deep-ocean environments. This motor is ideal for subsea robotics, autonomous underwater vehicles (AUVs), remotely operated vehicles (ROVs), and offshore exploration equipment.
3000-Meter Submersion Capability – Built for ultra-deep ocean conditions with high hydrostatic pressure.
Pressure-Resistant Design – Advanced sealing technology prevents water ingress and ensures stable performance.
Precision Control – DC servo system provides accurate torque, speed, and position regulation.
Durable Construction – Stainless steel or titanium alloy housing with anti-corrosion treatment for long-term seawater exposure.
Reliable Insulation – Moisture-proof windings and enhanced insulation for high-pressure environments.
Application Versatility – Suitable for AUVs, ROVs, subsea robotics, offshore drilling, and deep-sea research.
Motor Type: DC Servo Motor
Maximum Submersion Depth: 3000 meters
Protection Level: IP68+ / High-pressure resistant
Housing Options: Stainless steel / Titanium alloy
Cooling Method: Self-cooled / optional oil-filled or pressure-compensated design
Customization: Torque, speed, and gearbox integration available
Electrical Parameters
| Main performance parameters | |||
| Rated Power(KW) | 15 | Motor Withstand Voltage | 0-10Mpa |
| Rated current(A) | 0.65 | Rated Voltage(V) | 196VDC |
| Rated speed(RPM) | 3000 | Insulation Class | F 155℃ |
| Rated Torque(NM) | 48 | Protection Class | IP56 |
| Maximum Torque(NM) | 120 | Weight(KG) | |
