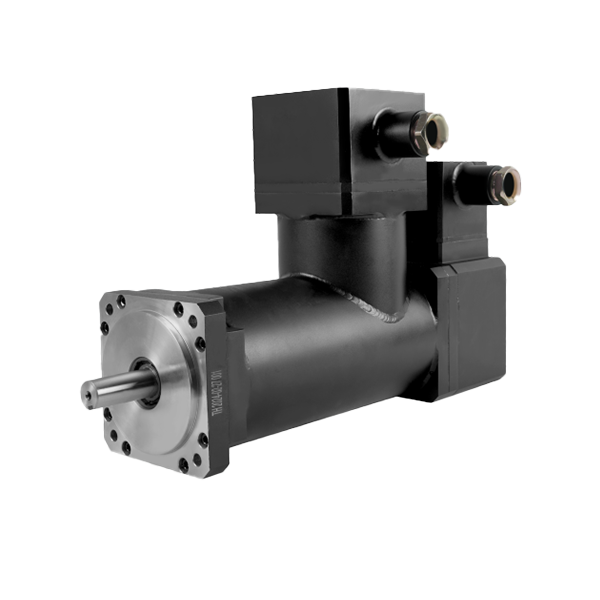

130 explosion-proof DC motors for Underground Coal Mines

Product Overview

The WHEATSTONE 130 Explosion-Proof DC Motor for Underground Coal Mines is engineered for safe and efficient operation in hazardous mining environments where explosive gases and coal dust are present. Designed with a flameproof enclosure and rugged materials, this motor ensures reliable performance and compliance with international mining safety standards, making it an ideal choice for coal mining applications that require precise speed and torque control.

Key Features

• Explosion-Proof Construction – Flameproof housing prevents ignition of methane and coal dust in underground mines.

• DC Motor Advantages – Provides excellent speed regulation, fast response, and stable torque under load variations.

• High Reliability – Optimized brush and commutator system ensures long service life in demanding operating conditions.

• Mining-Grade Durability – Heavy-duty bearings, reinforced insulation, and anti-corrosion coatings withstand harsh environments.

• Customizable Solutions – Available in various voltages, cooling methods, and mounting options to meet specific mining equipment requirements.

Technical Highlights

• Motor Type: Explosion-Proof DC Motor

• Frame Size: 130 series

• Voltage Range: 110V / 220V / 440V (customizable)

• Power Output: Tailored to application needs

• Protection Class: Ex d I Mb (for underground coal mines)

• Insulation Class: F or H

• Cooling Method: IC06 / IC17 / IC37, or customized oil/air cooling

• Ingress Protection: IP55–IP65

• Applications: Mining conveyors, drilling rigs, coal cutting machinery, hydraulic systems, and other underground equipment

Motor Model

Motor Dimensions

Electrical Parameters

Torque-Speed Characteristics Curve

Application of Explosion-Proof Motors in Underground Coal Mines

1. Ventilation systems and fans

2. Conveyor belt systems

3. Pumping systems

4. Crushers and grinding mills

5. Underground transportation systems

Q1: What is an explosion-proof motor?

 A1: An explosion-proof motor is designed to operate safely in potentially hazardous environments where flammable gases, vapors, or dust are present. These motors are constructed to prevent the ignition of the surrounding explosive atmosphere.

Q2: Why are explosion-proof motors necessary in underground coal mines?

 A2: Underground coal mines contain potentially explosive atmospheres due to the presence of coal dust and methane gas. Explosion-proof motors are essential to ensure safe and reliable operation of machinery and equipment in such hazardous environments.

Q3: How do explosion-proof motors prevent explosions?

A3: Explosion-proof motors are built with robust construction features to contain any potential explosion within the motor housing. These motors have enhanced sealing and are designed to prevent sparks or hot surfaces from igniting the surrounding explosive atmosphere.

Q4: What certifications should explosion-proof motors have for underground coal mines?

 A4: Explosion-proof motors used in underground coal mines should comply with relevant safety standards and regulations. The most common certifications for these motors include ATEX (EU directive), IECEx (International Electrotechnical Commission), and MSHA (Mine Safety and Health Administration) in the United States.

Q5: What are the key features of explosion-proof motors for underground coal mines?

A5: Some key features of explosion-proof motors include:

• Robust and durable construction

• High-quality insulation systems

• Effective cooling mechanisms

• Enhanced protection against dust and moisture ingress

• Sealed and explosion-proof terminal boxes

• Proper grounding provisions




Q6: Can explosion-proof motors be used in other industries or applications?

 A6: Yes, explosion-proof motors are not exclusive to underground coal mines. They are also used in various industries where hazardous environments exist, such as petrochemical plants, oil refineries, chemical processing facilities, and grain handling operations.

Q7: What maintenance practices should be followed for explosion-proof motors?

A7: Regular maintenance is crucial for ensuring the safe and reliable operation of explosion-proof motors. Some maintenance practices include:

• Regular inspection of motor housing, seals, and terminal boxes

• Cleaning and removing dust or debris accumulation

• Verifying proper grounding connections

• Lubricating bearings as per manufacturer's recommendations

• Following the manufacturer's guidelines for motor maintenance and repair.

Q8: Can explosion-proof motors be repaired if damaged?

A8: In the event of motor damage, it is recommended to consult the manufacturer or a qualified service provider specializing in explosion-proof motors. Repairs should be performed by professionals familiar with the specific requirements and regulations for explosion-proof equipment.

Q9: Are there any limitations or considerations when using explosion-proof motors?

 A9: Yes, some important considerations include:

• Ensuring the correct motor size and specifications for the intended application

• Proper installation and alignment of the motor

• Adhering to recommended ambient temperature and operating conditions

• Following all safety protocols and guidelines provided by the manufacturer and relevant regulatory bodies.
