180 Series Disc Motors
Product Overview

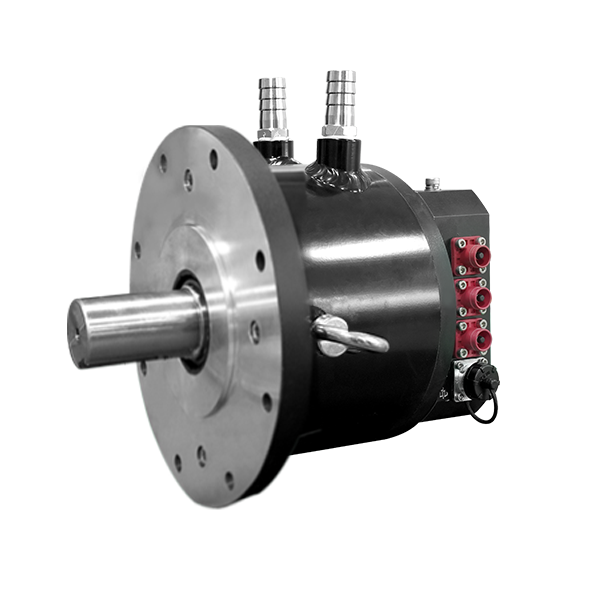

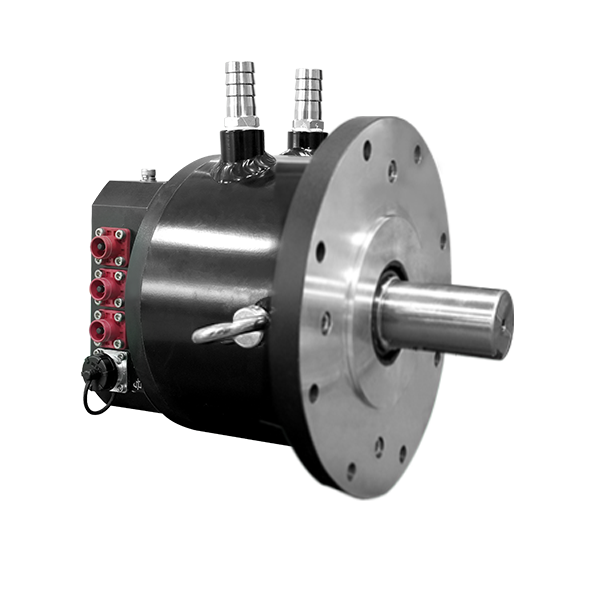

The WHEATSTONE 180 Series Disc Motor is designed for applications requiring high torque density, compact dimensions, and precise motion control. With its thin-profile disc design, the motor enables efficient integration into space-constrained systems while providing fast dynamic response and superior performance. It is ideal for robotics, automation, aerospace, medical devices, and advanced industrial machinery.
Key Features
Compact Disc Design – Ultra-thin form factor for easy integration into equipment with limited space.
High Torque-to-Weight Ratio – Provides excellent output torque in a lightweight package.
Fast Dynamic Response – Low inertia rotor ensures quick acceleration and deceleration.
Precision Motion Control – Accurate speed and position control for demanding applications.
Durable Construction – Optimized materials and insulation ensure long service life.
Customizable Options – Available in multiple winding configurations, shaft designs, and feedback options.
Technical Highlights
Motor Type: Disc Motor (Flat Motor Design)
Series: 180 mm frame size
Torque Output: High torque density, customizable per application
Rotor Inertia: Extremely low for high dynamic performance
Voltage Range: Custom windings available for different supply voltages
Cooling Options: Air or conduction cooling
Temperature Range: 0°C to +50°C (custom versions available)
Protection Class: IP54–IP68depending on configuration
Applications: Robotics, aerospace systems, automation machinery, precision instruments, medical equipment, and defense technologies
Motor Dimensions
Electrical Parameters
| Main performance parameters(180ST-X35030-600V-JSDX) |
| Rated Power(KW) | 11 | Maximum Torque(NM) | 105 |
| Rated Current(A) | 23 | Insulation Class | F 155℃ |
| Rated speed(RPM) | 3000 | Safety Class | IP67 |
| Maximum speed(RPM) | 3600 | Operating ambient temperature(℃） | 0～50℃ |
| Rated Torque(NM) | 35 | Rotor of Inertia(kg.cm²) | 77.5 |
| Main performance parameters(180ST-X50030-600V-JSDX) |
| Rated Power(KW) | 15 | Maximum Torque(NM) | 150 |
| Rated Current(A) | 32 | Insulation Class | F 155℃ |
| Rated speed(RPM) | 3000 | Safety Class | IP65 |
| Maximum speed(RPM) | 3600 | Operating ambient temperature(℃） | 0～50℃ |
| Rated Torque(NM) | 50 | Rotor of Inertia(kg.cm²) | 97.8 |
Torque-Speed Characteristics Curve
180ST-X35030-600V-JSDX
180ST-X50030-600V-JSDX
