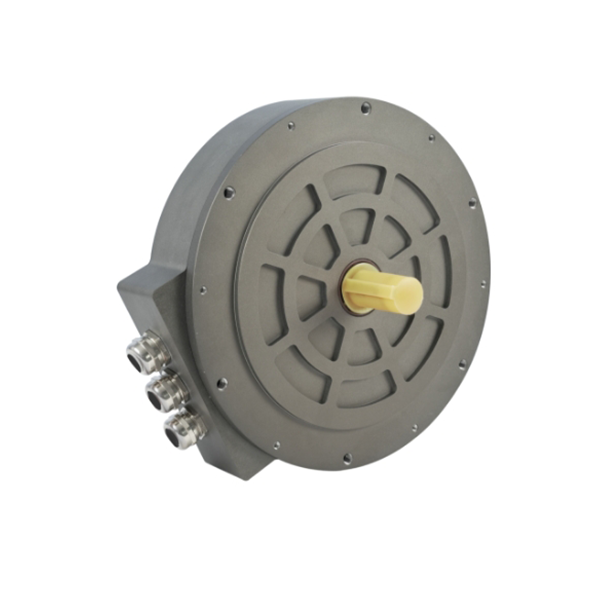

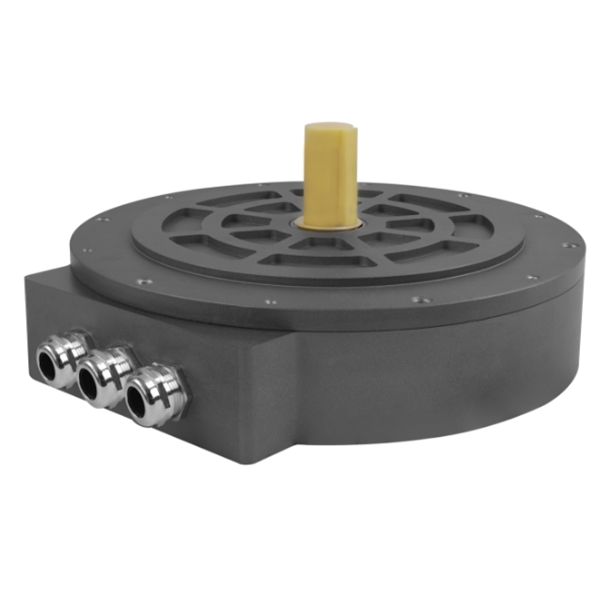

Axial Flux Motor

Product Overview

The WHEATSTONE Axial Flux Motor is a next-generation electric motor technology designed to deliver high power density, compact dimensions, and superior efficiency. Unlike traditional radial flux motors, the axial flux design positions the magnetic flux path parallel to the axis of rotation, enabling a shorter, lighter, and more energy-efficient motor. This architecture makes it ideal for electric vehicles, aerospace propulsion, renewable energy systems, and advanced industrial applications.

Key Features

• High Power Density – Achieves greater torque and power output in a compact, lightweight structure.

• Superior Efficiency – Reduced copper and core losses improve energy conversion efficiency.

• Compact Design – Flat, disc-shaped geometry enables integration into space-constrained systems.

• Scalable Performance – Suitable for both low-speed high-torque and high-speed drive applications.

• Thermal Management – Optimized cooling options (air, liquid, or conduction) maintain reliable performance under high loads.

• Customization Options – Configurable windings, voltage ranges, cooling systems, and mechanical interfaces to meet specific requirements.

Technical Highlights

• Motor Type: Axial Flux Permanent Magnet Motor

• Frame Sizes: Customizable from 100 mm to 600 mm

• Efficiency: >95% depending on configuration

• Torque Density: Up to 2x higher compared to conventional radial flux motors

• Cooling: Air-cooled, liquid-cooled, or conduction cooling available

• Temperature Range: -10°C to +50°C

• Protection Class: IP54–IP68 depending on application

• Applications: Electric vehicles, aerospace propulsion systems, renewable energy (wind & hydro), robotics, and high-performance industrial machinery

Motor Dimensions

Electrical Parameters

Torque-Speed Characteristics Curve
