180ST-N22014-48V-SW
wheatstone
| Quantity: | |
|---|---|
Product Description

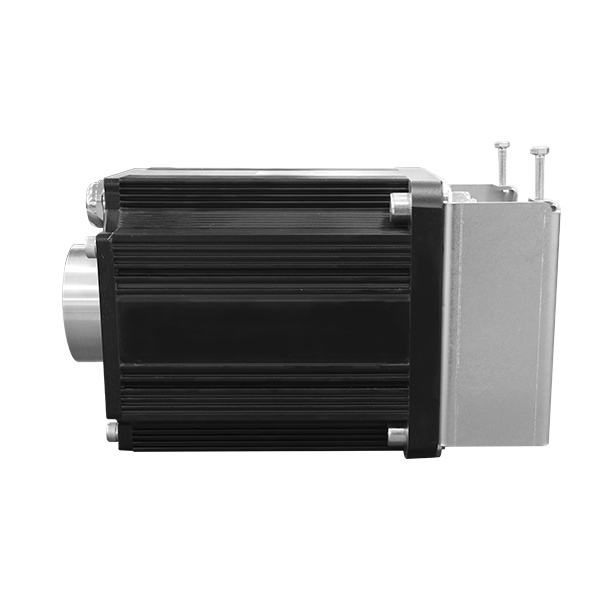

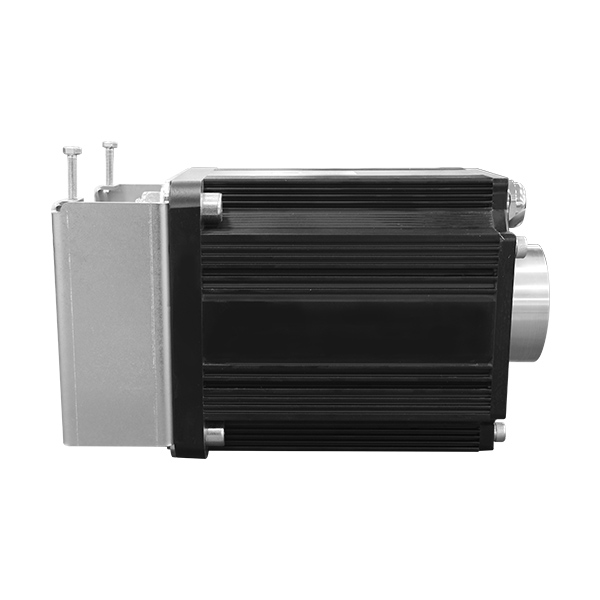

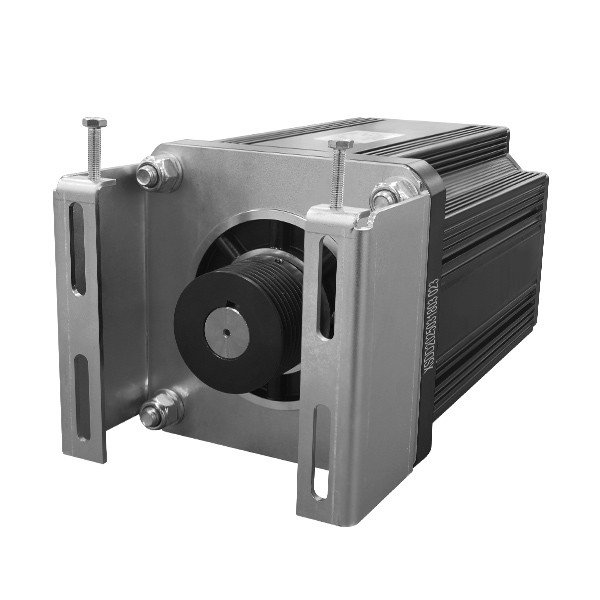

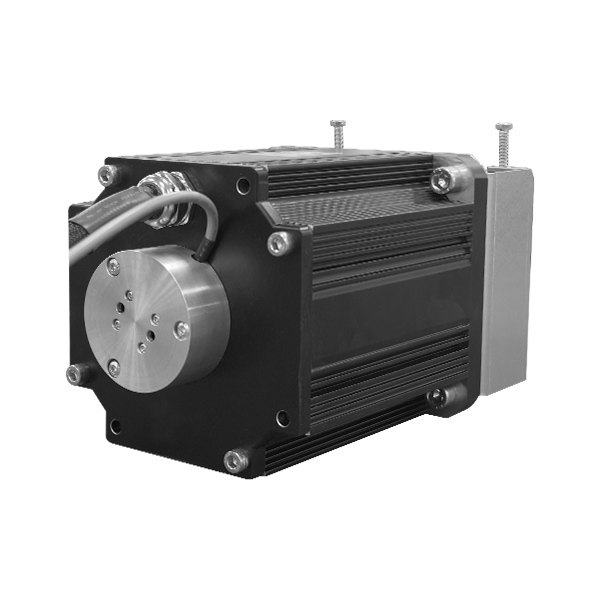

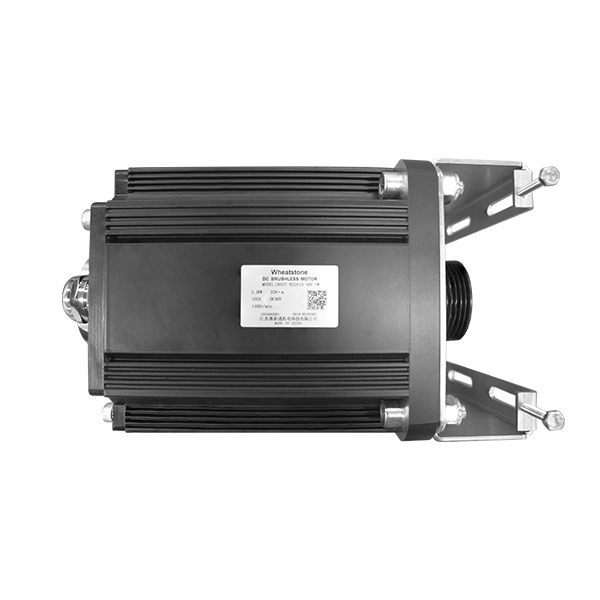

The WHEATSTONE Brushless DC Motor (BLDC) for elevator power equipment is designed to deliver high efficiency, precise control, and long-term reliability in vertical transportation systems. With its compact structure and advanced brushless technology, this motor ensures smooth operation, reduced maintenance, and energy savings for modern elevator applications.
High Efficiency – Brushless design reduces energy loss and ensures low operating cost.
Smooth Operation – Delivers precise torque and speed control for quiet and stable elevator performance.
Compact & Lightweight – Optimized structure enables space-saving installation in elevator drive systems.
Durable & Low Maintenance – No brushes, minimal wear, and extended service life.
High Torque Density – Provides strong starting torque and stable power output for heavy-load elevators.
Advanced Control Compatibility – Works seamlessly with modern elevator drive and control systems.
Motor Type: Brushless DC Motor (BLDC)
Voltage Range: Customizable based on elevator drive requirements
Torque Output: High starting torque and stable continuous torque
Efficiency: >90% depending on load conditions
Cooling Method: Natural cooling / forced-air cooling options
Housing Material: High-strength steel with anti-vibration design
Applications: Elevator power systems, escalators, lifting platforms, and vertical transport equipment

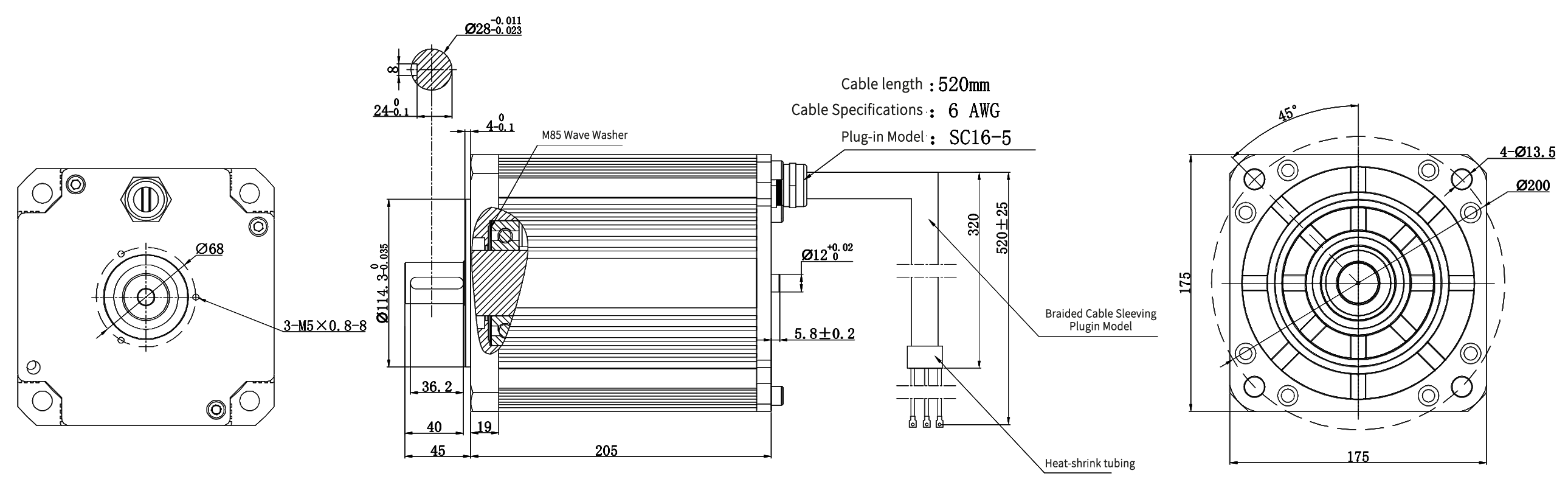

Motor Dimensions
Electrical Parameters
| Main performance parameters | |||
| Rated Power(KW) | 3.2 | Maximum Torque(NM) | 45 |
| Rated current(A) | 105 | Safety Class | IP65 |
| Rated speed(RPM) | 1400 | Insulation Class | F 155℃ |
| Maximum speed(RPM) | 1680 | Operating ambient temperature（℃） | -10~50 |
| Rated Torque(NM) | 22 | Weight（KG) | 16.2 |
Torque-Speed Characteristics Curve
