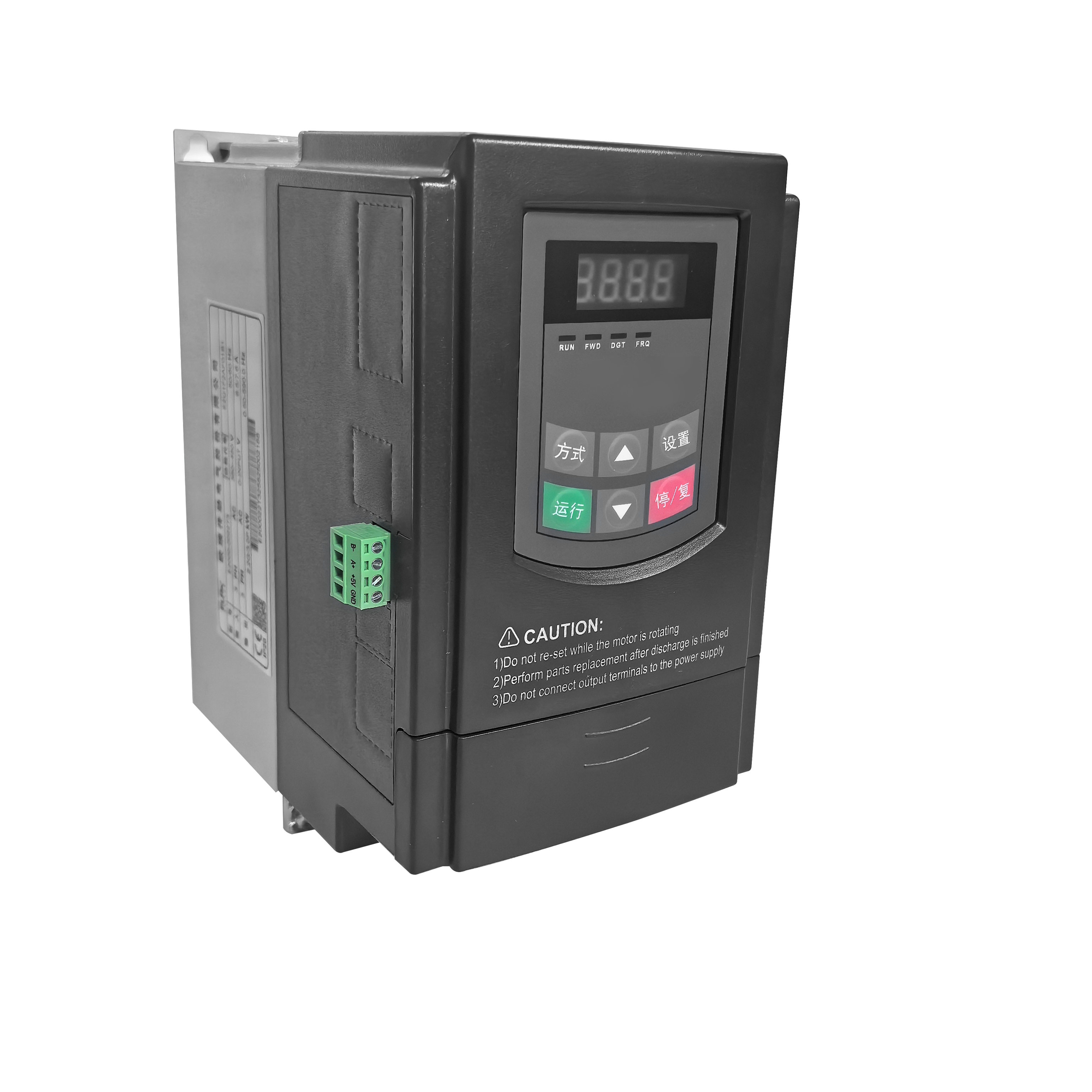

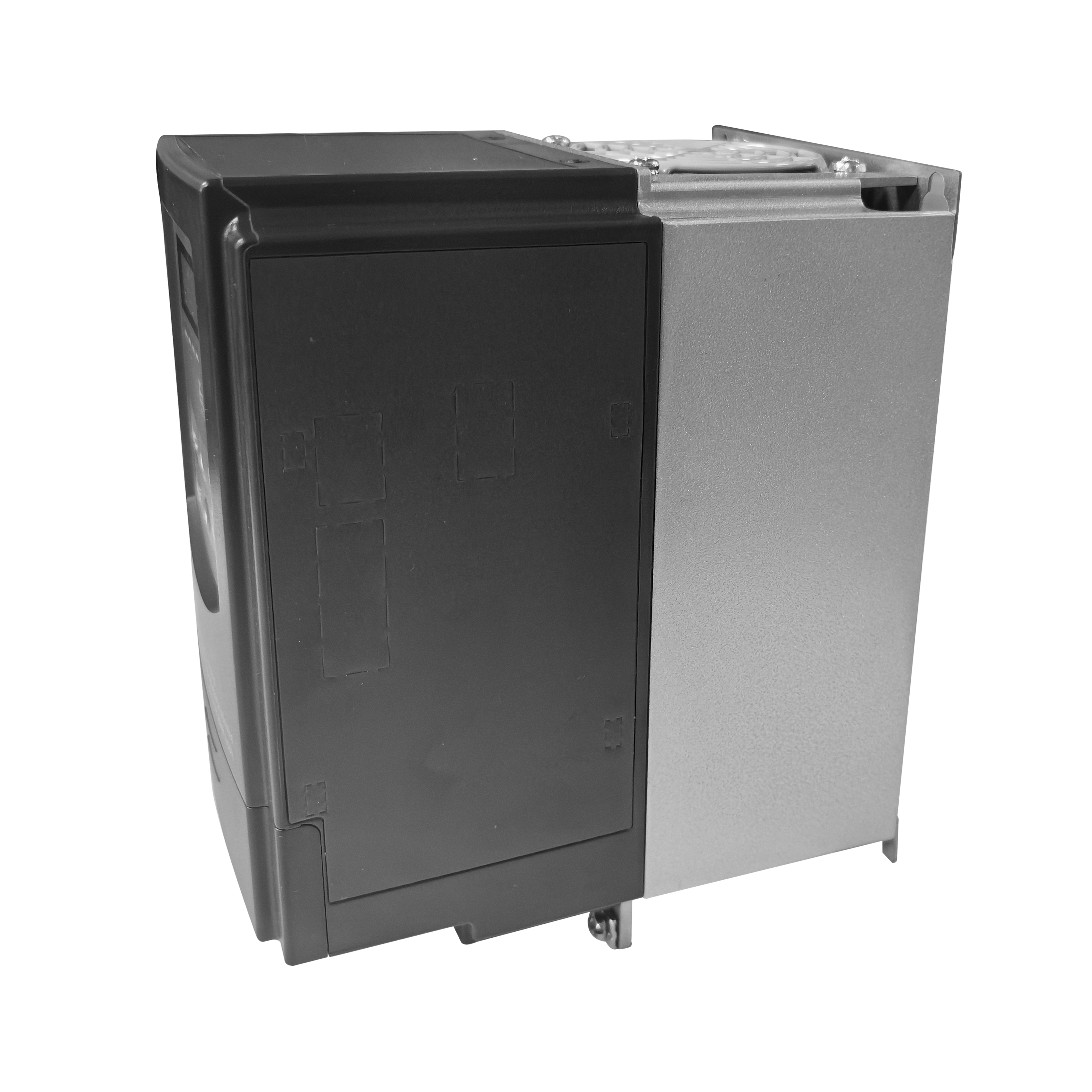

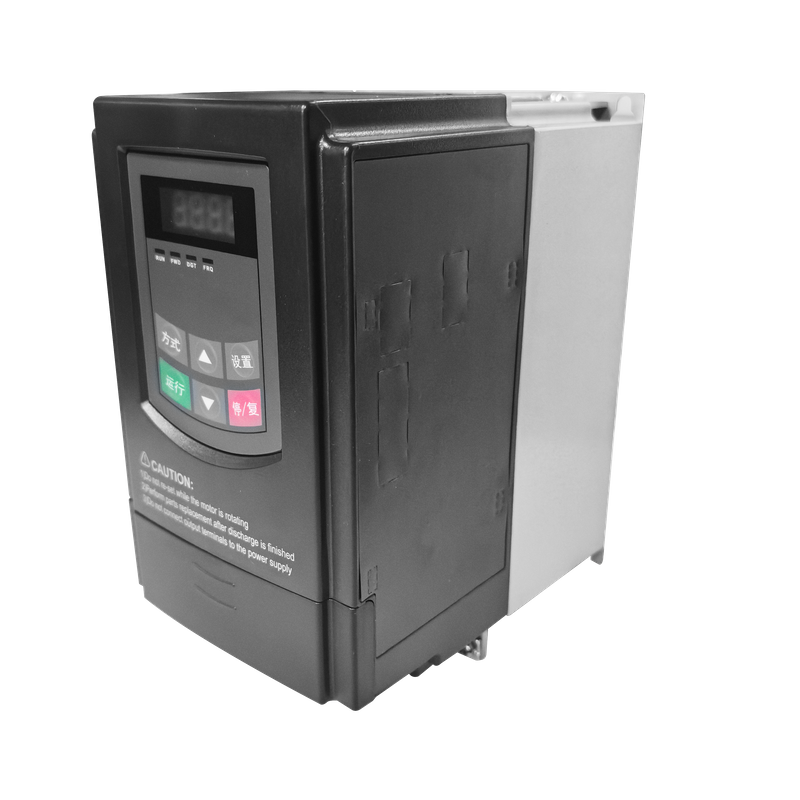

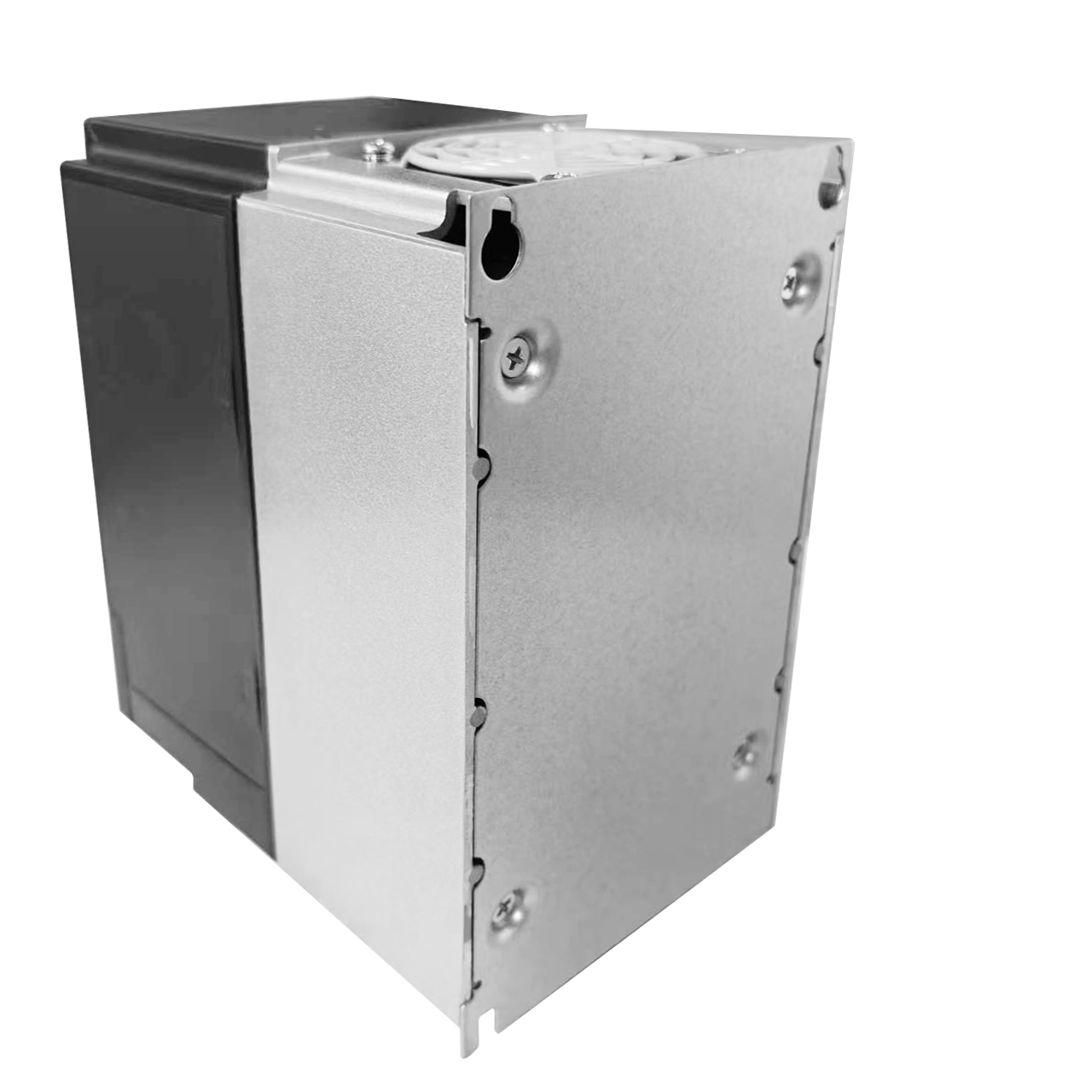

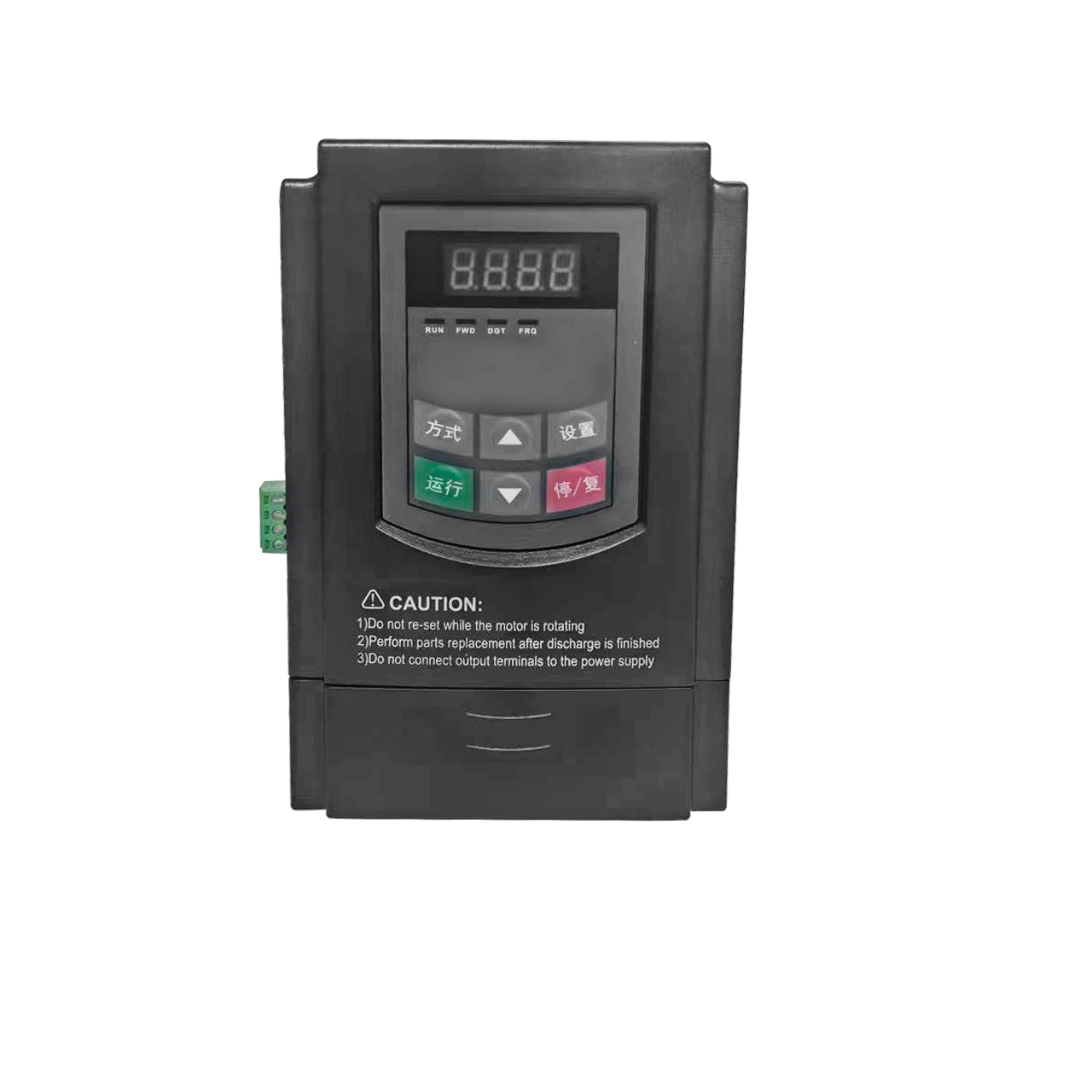

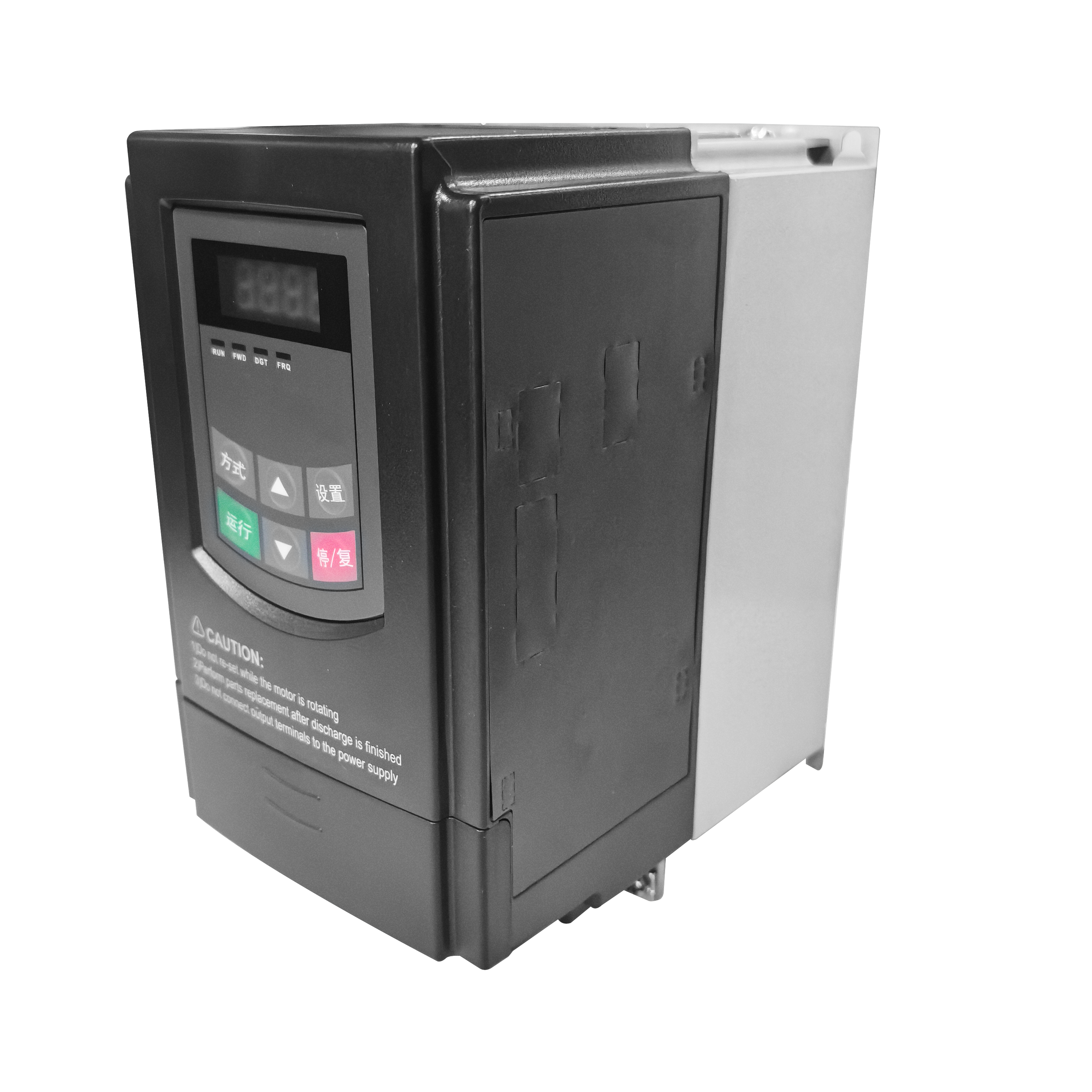

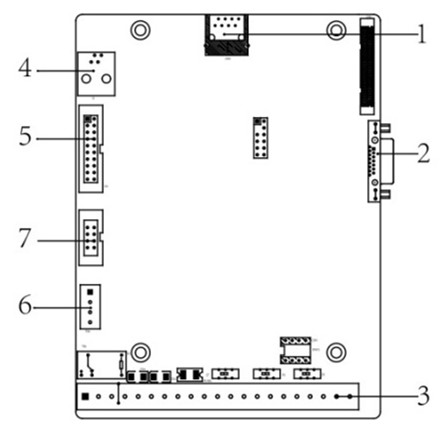

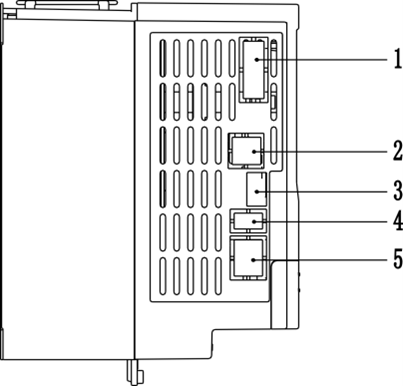

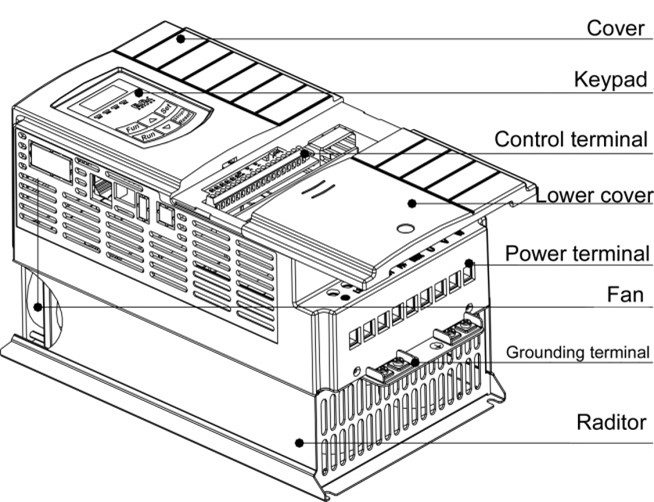

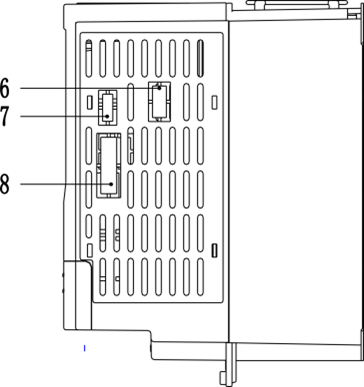

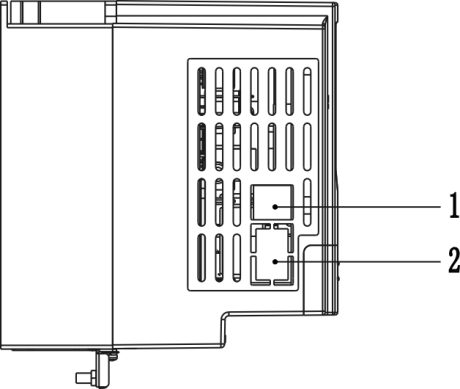

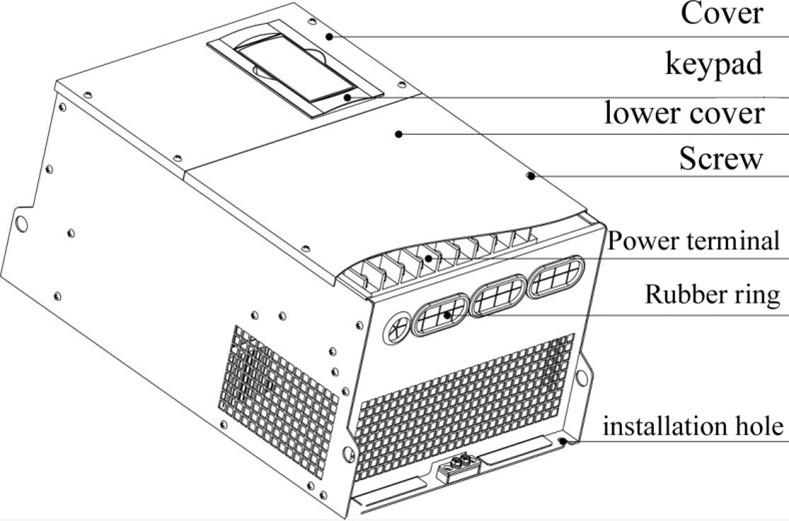

E2000 Series Frequency Inverter

Motor power

S2 means single-phase 230VAC

T3 means three-phase  400 VAC

Input

Rated Voltage Range

3-phase   380-480V (+10%, -15%) ^{note 1}

3-phase   220V~240V ±15%

1-phase   220-240V ±15%

Rated Frequency

50/60Hz

Output

Rated Voltage Range

3-phase   0-INPUT (V)

Frequency Range

0.50～590.0Hz (In SVC control mode, the max frequency should be lower than 500Hz.)

Control Mode

Carrier Frequency

800~16000Hz; Fixed carrier-wave and   random carrier-wave can be selected by F159.

Input Frequency Resolution

Digital   setting: 0.01Hz, analog setting: max frequency X 0.1%

Control Mode

For induction motor:

SVC (open-loop vector   control) control, V/F control,

VC (Closed-loop vector   control) control

For PMSM: SVC (open-loop   vector control) control

Start Torque

0.5 Hz / 150% (SVC)， 0Hz/180% (VC),

5% of rated speed/100% of   rated torque (PMSM SVC)

Speed-control Scope

1:100 (SVC), 1:1000 (VC),   1:20 (in PMSM SVC)

Steady Speed Precision

±0.5%（SVC）, ±0.02%（VC）

Torque Control Precision

±5%

Overload Capacity

150% rated current, 60   seconds.

Torque Elevating

Auto torque promotion,   Manual Torque Promotion includes 1-20 curves.

V/F Curve

3 kinds of modes:   beeline type, square type and under-defined V/F curve.

Startup mode

Direct startup, speed   track startup (V/F control)

DC Braking

DC braking frequency: 0.20-50.00   Hz,

braking time: 0.00~30.00s

Jogging Control

Jogging frequency   range: min frequency~ max frequency, jogging acceleration/deceleration  time: 0.1~3000s

Auto Circulating Running and multi-stage speed   running

Auto circulating running   or terminals control can realize 15-stage speed running.

Built-in PID adjusting

Easy to realize   a system for process closed-loop control

Auto voltage regulation (AVR)

When source   voltage changes, the modulation rate can be adjusted automatically, so that   the output voltage is unchanged.

Operation Function

Frequency Setting

Potentiometer or external   analog signal (0～5V, 0～10V, 0～20Ma); keypad (terminal)▲／▼ keys, external control   logic and automatic circulation setting.

Start/Stop Control

Terminal control, keypad control or communication control.

Running Command Channels

3 kinds of channels from keypad panel, control terminal and MODBUS.

Frequency Source

Frequency sources: given digit, given analog voltage, given analog   current and given MODBUS

Accessorial frequency Source

7 kinds of accessorial frequency

Optional

Built-in EMI filter, built-in braking unit,   Modbus, tele-control panel

Protection Function

Input phase loss, Output phase loss, input   under-voltage, DC over-voltage, over-current, inverter over-load, motor   over-load, current stall, over-heat, external disturbance, under-load,   pressure control, analog line disconnected, PG line disconnection, keypad   disconnection, oPEn protection, STO and STO1.

Display

Keypad showing present   output frequency, present rotate-speed (rpm), present output current, present   output voltage, present linear-velocity, types of faults, and parameters for   the system and operation; LED indicators showing the current working status   of inverter.

Environment Conditions

Equipment Location

In an indoor location, Prevent exposure from direct   sunlight, Free from dust, tangy caustic gases, flammable gases, steam or the   salt-contented, etc.

Environment   Temperature

-10℃～+50℃

Environment   Humidity

Below 90% (no water-bead coagulation)

Vibration   Strength

Below 0.5g (acceleration)

Height above sea level

1000m or below

Protection level

IP20

Pollution level

PD2

Applicable Motor

0.2～800kW
