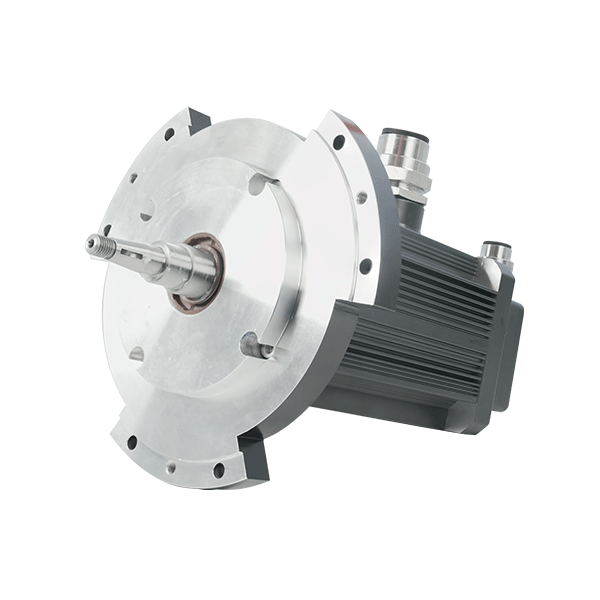

Explosion-Proof Special-Shaped DC Servo Motor
Product Overview
The WHEATSTONE Explosion-Proof Special-Shaped DC Servo Motor is engineered for operation in hazardous environments where explosive gases or dust may be present. Designed with a special-shaped housing to meet custom mechanical integration requirements, this motor combines explosion-proof safety, precise servo performance, and structural flexibility, ensuring reliable operation under challenging conditions.
Key Features
Explosion-Proof Design – Certified for use in hazardous areas, compliant with international explosion-proof standards (ATEX/IECEx/GB).
Special-Shaped Housing – Custom mechanical design allows integration into non-standard or space-limited equipment.
Precise Servo Control – High positioning accuracy and dynamic response for demanding motion control systems.
High Reliability – Rugged construction with reinforced insulation and sealed housing for long-term operation.
Thermal Stability – Optimized winding design and efficient heat dissipation for continuous duty cycles.
Low Maintenance – Brushless servo configuration reduces wear and extends service life.
Technical Highlights
Motor Type: Explosion-Proof Special-Shaped DC Servo Motor
Voltage Range: Customizable DC input (24V, 48V, or higher on request)
Torque Output: High torque-to-inertia ratio for fast response
Speed Range: Wide adjustable speed range with stable control
Protection Class: IP65–IP68, depending on configuration
Explosion-Proof Grade: Ex d IIB T4 Gb or customizable
Housing Material: High-strength alloy, anti-corrosion coating
Applications: Petrochemical equipment, mining machinery, offshore platforms, hazardous industrial automation, and custom motion systems

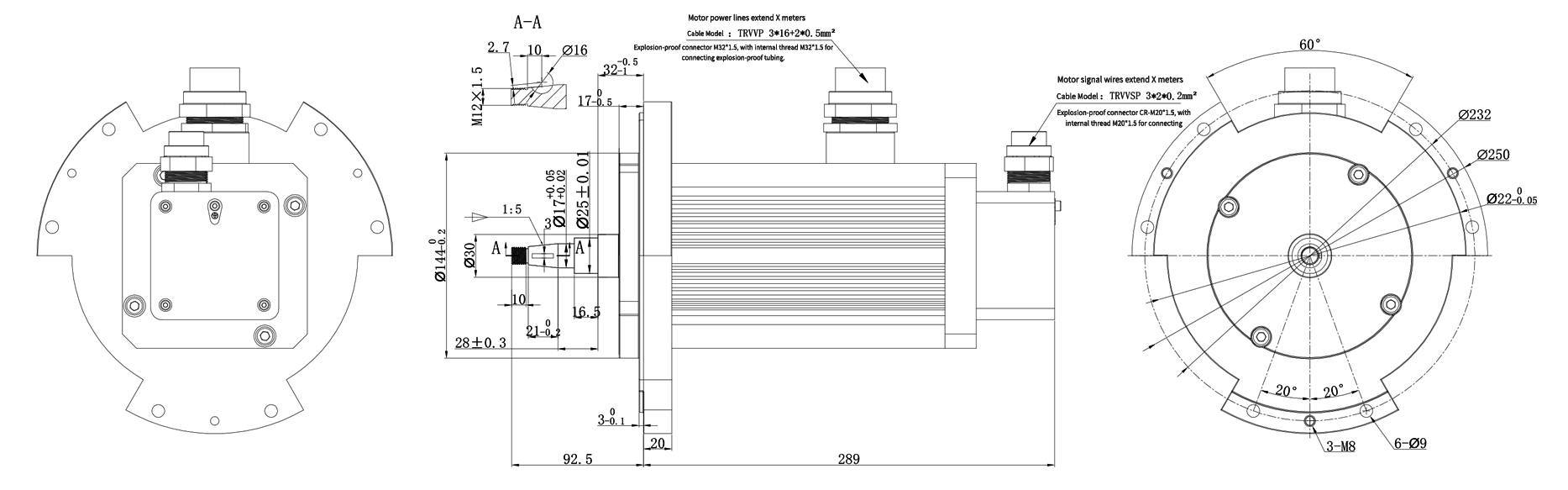

Motor Dimensions
Electrical Parameters
| Main performance parameters |
| Rated Power(KW) | 1.8 | Maximum Torque(NM) | 18 |
| Rated current(A) | 89 | Safety Class | IP65 |
| Rated speed(RPM) | 3000 | Rotor of Inertia(kg.cm²) | 12.6 |
| Maximum speed(RPM) | 3600 | Insulation Class | F 155℃ |
| Rated Torque(NM) | 6 | Weight（KG) |
|

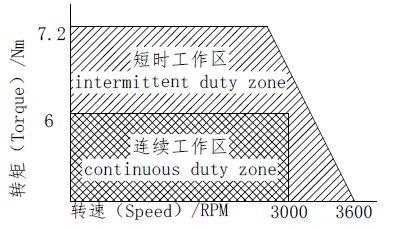

Torque-Speed Characteristics Curve
