Product Description
The WHEATSTONE Frameless Motors is engineered for direct integration into customer equipment, offering high torque density, compact design, and precision control. Without a housing, bearings, or feedback device, frameless motors provide maximum design flexibility for engineers who require performance in space-constrained applications.

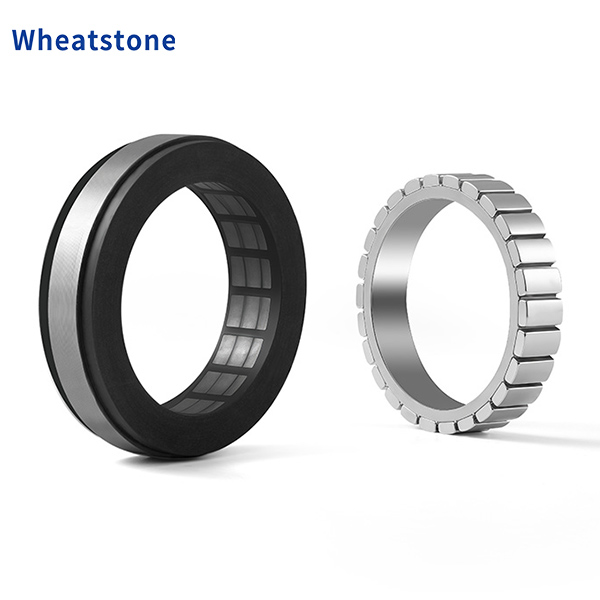

Compact Integration – Stator and rotor kit design allows direct installation into mechanical structures.
High Torque Density – Optimized electromagnetic design delivers strong torque in a compact footprint.
Precision Performance – Smooth speed regulation and accurate positioning for demanding motion systems.
Thermal Efficiency – Advanced winding technology ensures efficient heat dissipation under high load.
Flexible Design – Customizable dimensions, winding configurations, and mounting options.
Reliability – Built with high-quality insulation materials for long service life in continuous operation.
Motor Type: Frameless Brushless Servo Motor (Stator + Rotor Kit)
Voltage Range: Customizable (Low to High DC/AC supply options)
Torque Output: High torque-to-weight ratio
Cooling: Natural cooling / optional liquid or forced-air cooling
Materials: High-grade laminations, copper windings, rare-earth magnets
Applications: Robotics, aerospace, medical devices, direct-drive systems, industrial automation

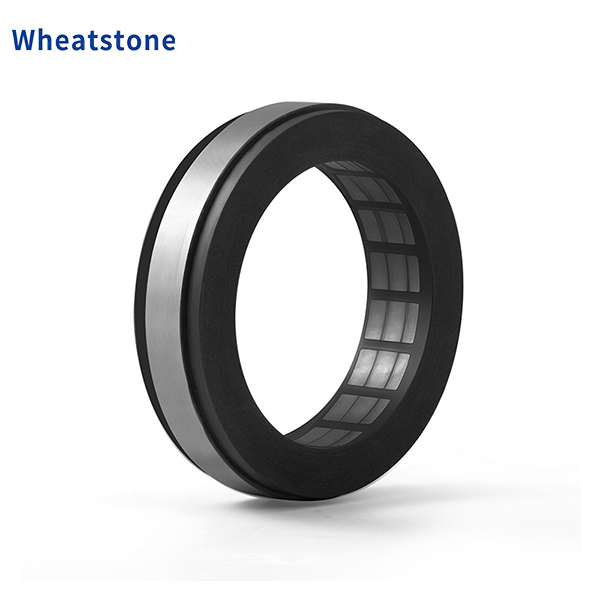

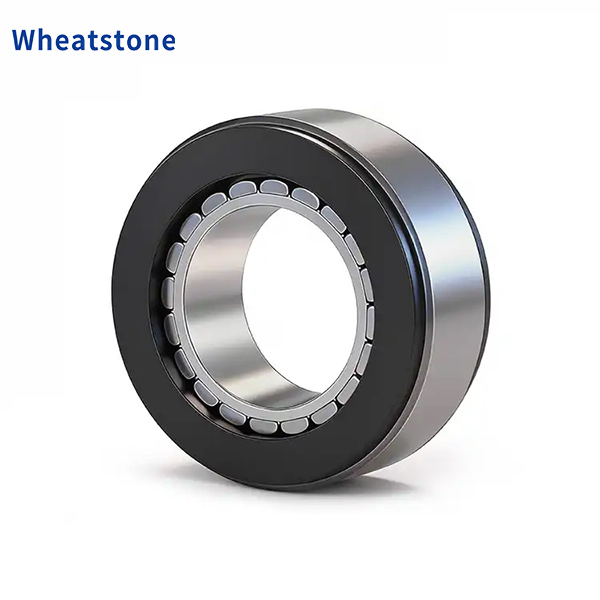

115mm Outer Diameter Frameless Torque Motor
| Motor Specifications | 115WK-口03025-48V-74-14 | 115WK-口04025-48V-74-18 | 115WK-口06020-48V-74-31 | |
| DC Voltage | 48 | 48 | 48 | |
| Rated Power(W) | 785.4 | 1021 | 848 | |
| Rated Torque(NM) | 3 | 3.9 | 2.1 | |
| Maximum Torque(NM) | 9 | 11.7 | 6.3 | |
| Rated Current(A) | 20.5 | 25 | 16 | |
| Maximum Current(A) | 60 | 75 | 48 | |
| Rated Speed(RPM) | 2500 | 2500 | 3000 | |
| Maximum Speed(RPM) | 3200 | 3200 | 4500 | |
| Moment of Inertia(kg.cm2) | 2.71 | 3.376 | 1.037 | |
| Coefficient of counter-electromotive force(V/Krpm) | 8.5 | 9 | 7.3 | |
| Wire resistance(ohms@20°C) | 0.075 | 0.06 | 0.11 | |
| Wire Inductance(mH) | 0.08 | 0.08 | 0.188 | |
| Polar Coordinates(2P) | 11 | 11 | 11 | |
| Weight(kg) | 0.655 | 0.85 | 736 | |
| Tooth-Slot Torque(mN.m) | 90（Reference Values） | 117（Reference Values） | 183（Reference Values） | |
| Dimensions(mm) | L1 (Core Height) | 14 | 17.5 | 30.5 |
| L2 (Rotor Height) | 15 | 18.5 | 31.5 | |
| L3 (Overall Height) | 26.6 | 30.9 | 44.1 | |
