Product Description
The WHEATSTONE Frameless Motors is engineered for direct integration into customer equipment, offering high torque density, compact design, and precision control. Without a housing, bearings, or feedback device, frameless motors provide maximum design flexibility for engineers who require performance in space-constrained applications.

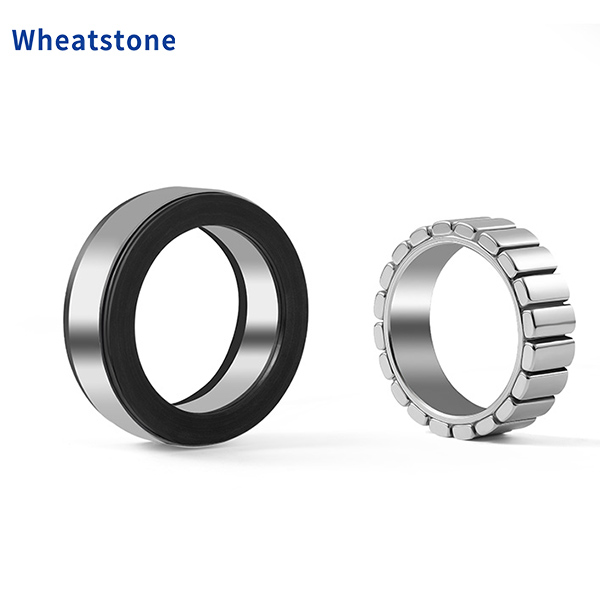

Compact Integration – Stator and rotor kit design allows direct installation into mechanical structures.
High Torque Density – Optimized electromagnetic design delivers strong torque in a compact footprint.
Precision Performance – Smooth speed regulation and accurate positioning for demanding motion systems.
Thermal Efficiency – Advanced winding technology ensures efficient heat dissipation under high load.
Flexible Design – Customizable dimensions, winding configurations, and mounting options.
Reliability – Built with high-quality insulation materials for long service life in continuous operation.
Motor Type: Frameless Brushless Servo Motor (Stator + Rotor Kit)
Voltage Range: Customizable (Low to High DC/AC supply options)
Torque Output: High torque-to-weight ratio
Cooling: Natural cooling / optional liquid or forced-air cooling
Materials: High-grade laminations, copper windings, rare-earth magnets
Applications: Robotics, aerospace, medical devices, direct-drive systems, industrial automation

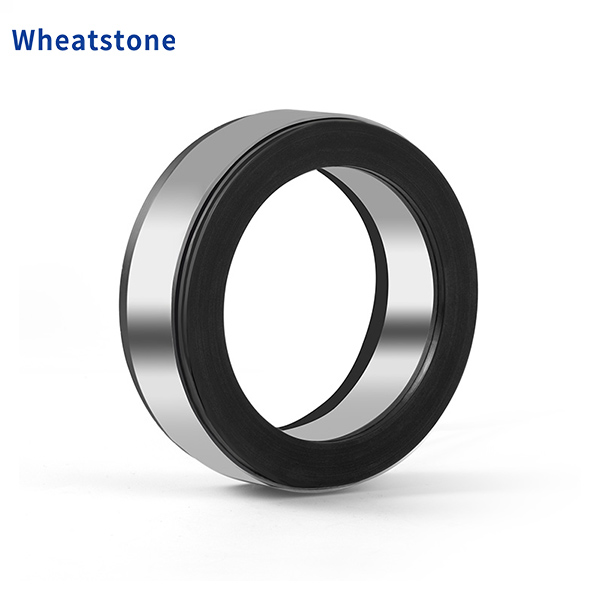

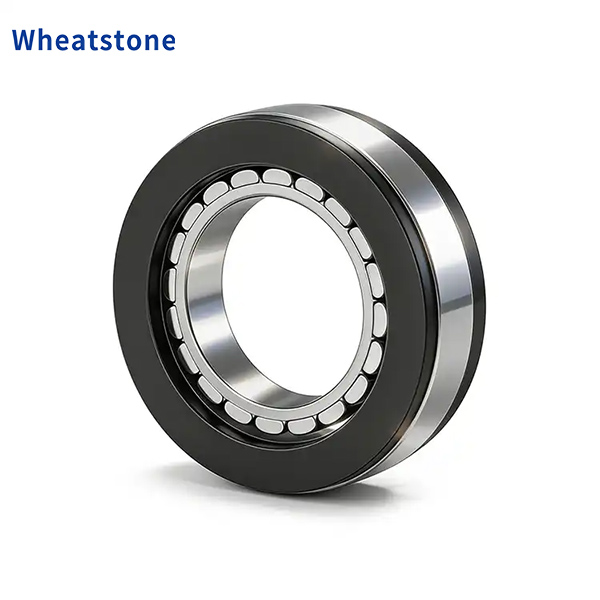

68mm Outer Diameter Frameless Torque Motor
| Motor Specifications | 68WK-口00730-48V-40-10 | 68WK-口00930-48V-40-15 | 60WK-口01030-48V-33-28 | |
| DC Voltage | 48 | 48 | 48 | |
| Rated Power(W) | 204 | 270 | 487 | |
| Rated Torque(NM) | 0.65 | 0.86 | 1.55 | |
| Maximum Torque(NM) | 1.95 | 2.5 | 4.65 | |
| Rated Current(A) | 6.3 | 8 | 12 | |
| Maximum Current(A) | 18.9 | 24 | 36 | |
| Rated Speed(RPM) | 3000 | 3000 | 3000 | |
| Maximum Speed(RPM) | 4500 | 4500 | 4500 | |
| Moment of Inertia(kg.cm2) | 0.262 | 0.37 | 0.68 | |
| Coefficient of counter-electromotive force(V/Krpm) | 6.5 | 7 | 8 | |
| Wire resistance(ohms@20°C) | 0.55 | 0.35 | 0.18 | |
| Wire Inductance(mH) | 0.4 | 0.3 | 0.2 | |
| Polar Coordinates(2P) | 10 | 10 | 10 | |
| Weight(g) | 197 | 266 | 474 | |
| Tooth-Slot Torque(mN.m) | 20（Reference Values） | 26（Reference Values） | 48（Reference Values） | |

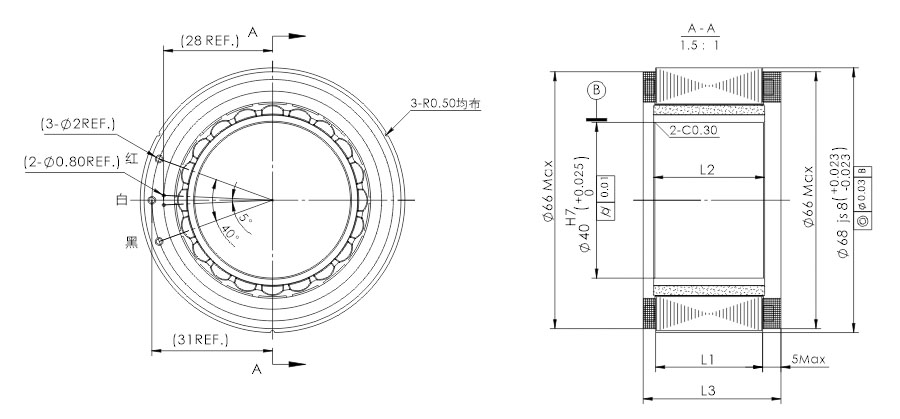

| Dimensions(mm) | L1 (Core Height) | 10 | 14.5 | 27.5 |
| L2 (Rotor Height) | 11 | 15.5 | 28.5 | |
| L3 (Overall Height) | 18.6 | 22.9 | 36.6 | |
