Frameless Motor

Product Overview

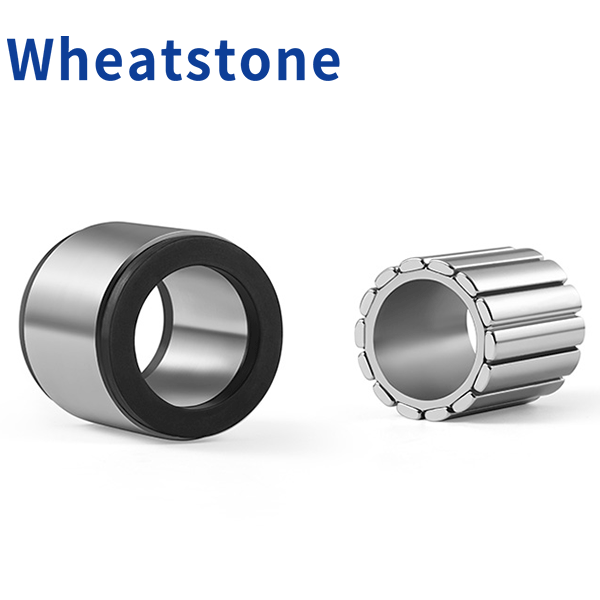

The WHEATSTONE Frameless Motor is engineered for direct integration into customer equipment, offering high torque density, compact design, and precision control. Without a housing, bearings, or feedback device, frameless motors provide maximum design flexibility for engineers who require performance in space-constrained applications.

Key Features

• Compact Integration – Stator and rotor kit design allows direct installation into mechanical structures.

• High Torque Density – Optimized electromagnetic design delivers strong torque in a compact footprint.

• Precision Performance – Smooth speed regulation and accurate positioning for demanding motion systems.

• Thermal Efficiency – Advanced winding technology ensures efficient heat dissipation under high load.

• Flexible Design – Customizable dimensions, winding configurations, and mounting options.

• Reliability – Built with high-quality insulation materials for long service life in continuous operation.

Technical Highlights

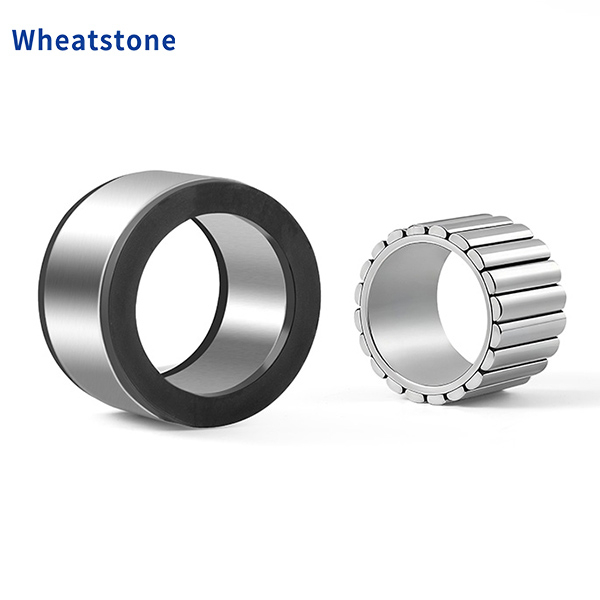

• Motor Type: Frameless Brushless Servo Motor (Stator + Rotor Kit)

• Voltage Range: Customizable (Low to High DC/AC supply options)

• Torque Output: High torque-to-weight ratio

• Cooling: Natural cooling / optional liquid or forced-air cooling

• Materials: High-grade laminations, copper windings, rare-earth magnets

• Applications: Robotics, aerospace, medical devices, direct-drive systems, industrial automation

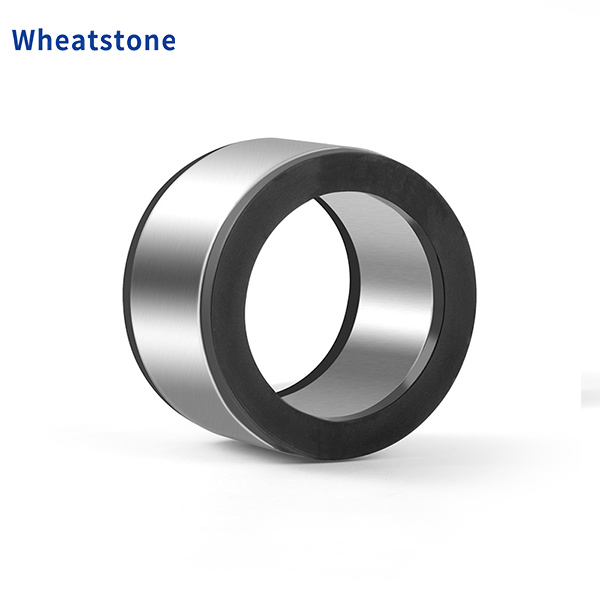

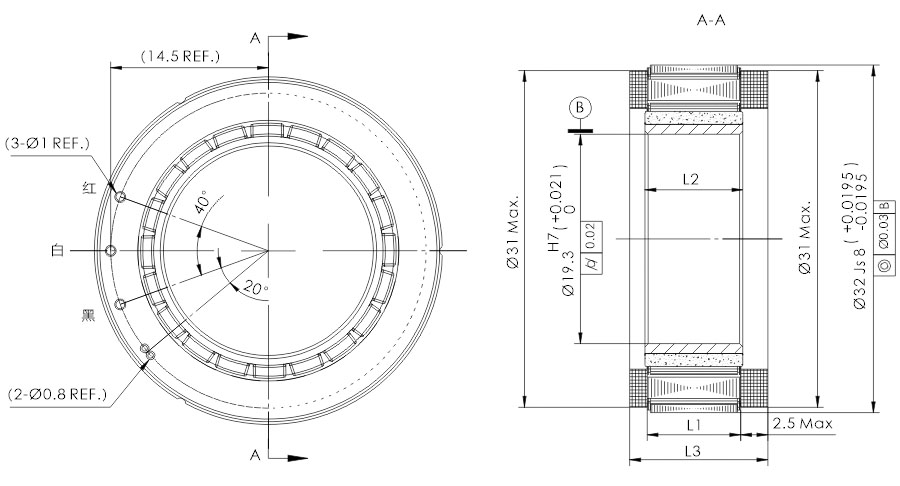

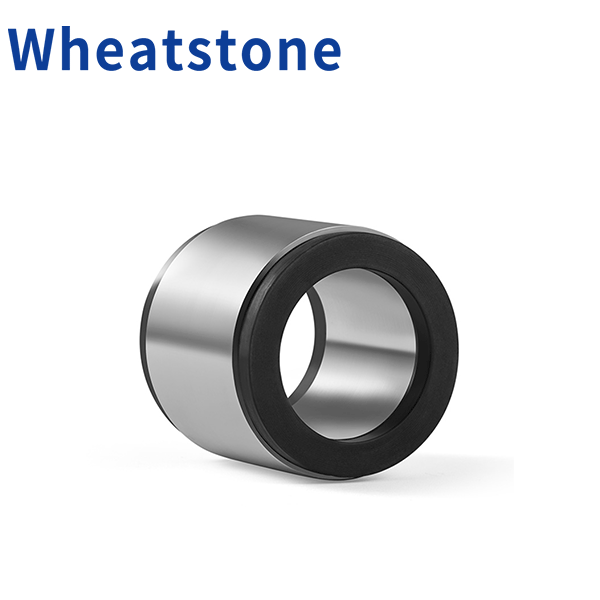

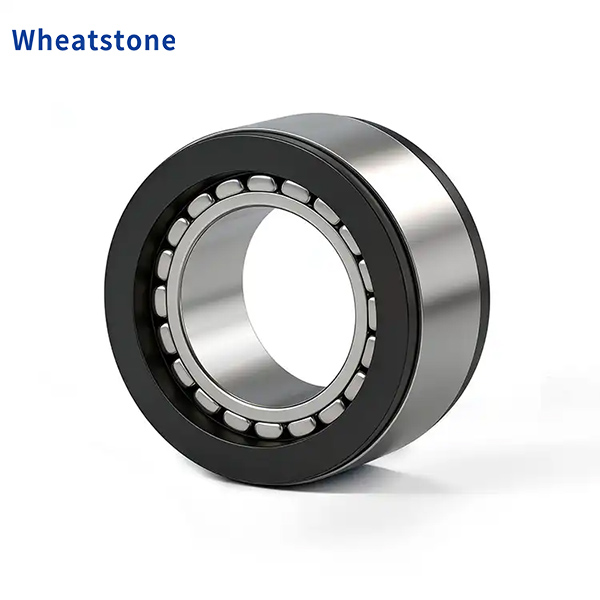

  32mm Outer Diameter Frameless Torque Motor
