Product Description
The WHEATSTONE Frameless Motor is engineered for direct integration into customer equipment, offering high torque density, compact design, and precision control. Without a housing, bearings, or feedback device, frameless motors provide maximum design flexibility for engineers who require performance in space-constrained applications.
Compact Integration – Stator and rotor kit design allows direct installation into mechanical structures.
High Torque Density – Optimized electromagnetic design delivers strong torque in a compact footprint.
Precision Performance – Smooth speed regulation and accurate positioning for demanding motion systems.
Thermal Efficiency – Advanced winding technology ensures efficient heat dissipation under high load.
Flexible Design – Customizable dimensions, winding configurations, and mounting options.
Reliability – Built with high-quality insulation materials for long service life in continuous operation.
Motor Type: Frameless Brushless Servo Motor (Stator + Rotor Kit)
Voltage Range: Customizable (Low to High DC/AC supply options)
Torque Output: High torque-to-weight ratio
Cooling: Natural cooling / optional liquid or forced-air cooling
Materials: High-grade laminations, copper windings, rare-earth magnets
Applications: Robotics, aerospace, medical devices, direct-drive systems, industrial automation

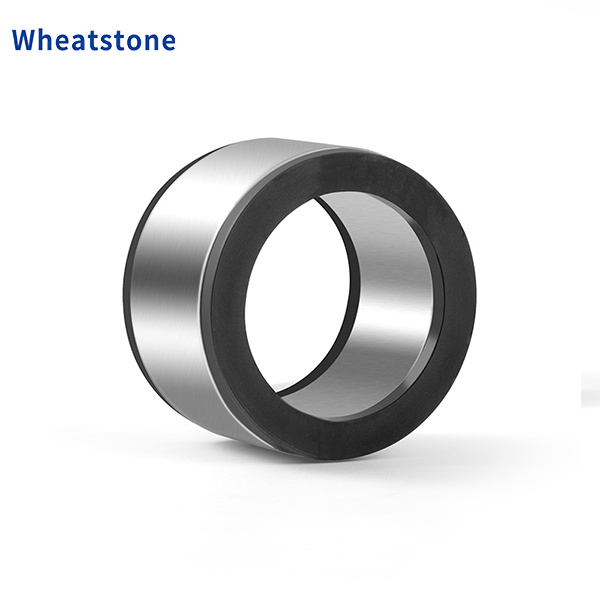

43mm Outer Diameter Frameless Torque Motor
| Motor Specifications | 43WK-口00242-48V-26-8 | |
| DC Voltage | 48 | |
| Rated Power(W) | 71 | |
| Rated Torque(NM) | 0.16 | |
| Maximum Torque(NM) | 0.48 | |
| Rated Current(A) | 3.8 | |
| Maximum Current(A) | 9 | |
| Rated Speed(RPM) | 4200 | |
| Maximum Speed(RPM) | 5000 | |
| Moment of Inertia(kg.cm2) | 0.04 | |
| Coefficient of counter-electromotive force(V/Krpm) | 5.5 | |
| Wire resistance(ohms@20°C) | 2.5 | |
| Wire Inductance(mH) | 1.1 | |
| Polar Coordinates(2P) | 10 | |
| Weight(kg) | 0.088 | |
| Tooth-Slot Torque(mN.m) | 4.8（Reference Values） | |

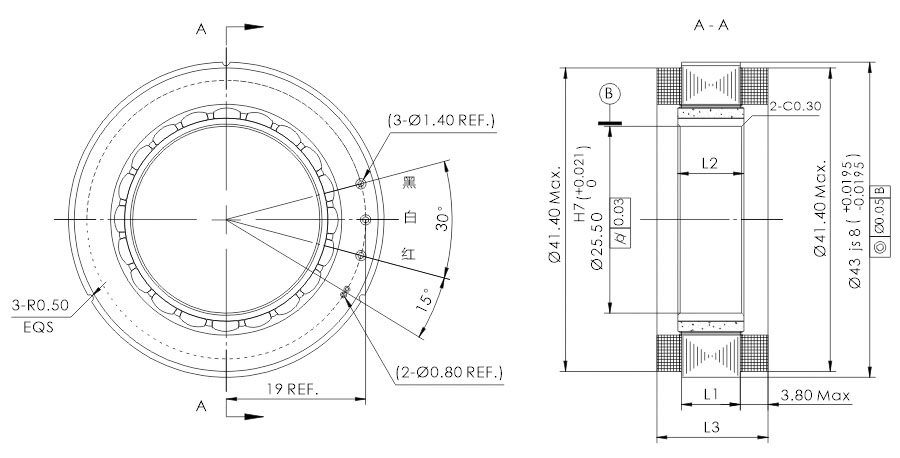

| Dimensions(mm) | L1 (Core Height) | 8 |
| L2 (Rotor Height) | 9 | |
| L3 (Overall Height) | 15.2 | |
