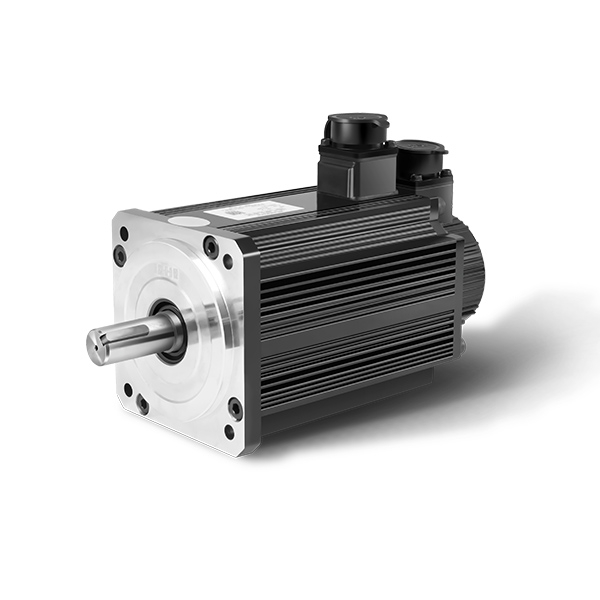

130 Series AC Servo Motor

Model:
130 Series AC Servo Motor
Brand:
Wheatstone

Availability:

Quantity:



Inquire Add to Basket

Product Description

130 AC Servo Motors

Product Overview

The WHEATSTONE 130 AC Servo Motors are engineered to deliver precise motion control, high torque density, and excellent dynamic performance for demanding industrial automation and equipment applications. With advanced electromagnetic design and optimized cooling, this series offers high efficiency, compact structure, and reliable operation under continuous duty cycles.

The 130 frame size is suitable for medium-to-high power applications, making it widely used in CNC machinery, robotics, packaging systems, textile equipment, and process automation.

Key Features

High Precision Control – Supports accurate positioning and speed regulation with advanced feedback systems (encoder/resolver options).
High Torque Density – Optimized stator and rotor design provide strong output torque with a compact frame.
Stable Operation – Smooth acceleration and deceleration for demanding motion profiles.
Flexible Feedback Options – Incremental encoders, absolute encoders, or resolvers available to match application requirements.
Durable Construction – High-strength frame, reliable insulation, and thermal protection ensure long service life.
Energy Efficiency – Low loss magnetic design reduces heat generation and improves overall efficiency.

Technical Highlights

Motor Type: AC Servo Motor
Frame Size: 130 mm
Rated Power: 0.75 kW – 7.5 kW (customizable)
Rated Voltage: 220V / 380V / 400V
Speed Range: 1000 – 3000 rpm (up to 6000 rpm optional)
Torque Range: Up to 60 Nm (continuous), higher with peak load
Insulation Class: F or H
Cooling Method: Natural cooling (IC410) / Forced air cooling (IC416)
Protection Class: IP54 – IP65
Feedback Devices: Incremental encoder, absolute encoder, or resolver
Applications: CNC machinery, robotics, printing equipment, textile machines, automated assembly lines, and industrial servo systems.

Motor Model

Motor Model	L(mm)
130ST-□040XX	177.5
130ST-□060XX	187.5
130ST-□077XX	202
130ST-□100XX	238
130ST-□150XX	273.5
130ST-□040XXB	226.5
130ST-□060XXB	236.5
130ST-□077XXB	251
130ST-□100XXB	287
130ST-□150XXB	342.5
130ST-M10020F	226
130ST-X10020F	226
130ST-X15020F	263

Motor Dimensions

Electrical Parameters

Main performance parameters
Motor Model	130ST-□04030	130ST-□06030	130ST-□07730	130ST-□10030	130ST-□15030
Rated Power（KW)	1.2	1.8	2.4	3.0	4.5
Rated current(A)	4.8	7.3	9.2	12.7	18.1
Rated speed(RPM)	3000	3000	3000	3000	3000
Maximum speed(RPM)	3600	3600	3600	3600	3600
Rated Torque(NM)	4.0	6.0	7.7	10.0	15.0
Maximum Torque(NM)	12.0	18.0	23.1	30.0	45.0
Rotor of Inertia(kg.cm²)	8.5	12.6	15.3	21.4	27.7

FAQ

Q1: What applications are WHEATSTONE 130 AC Servo Motors suitable for?
A1: They are widely used in CNC machinery, robotics, packaging equipment, textile machines, printing systems, and automated production lines requiring precise motion control.

Q2: What is the power and torque range of the 130 AC Servo Motor?
A2: The 130 frame size supports 0.75 kW to 7.5 kW rated power, with continuous torque up to 60 Nm, and higher torque available under peak load conditions.

Q3: What types of feedback devices are available?
A3: The motors can be equipped with incremental encoders, absolute encoders, or resolvers, depending on customer requirements for positioning accuracy and control.

Q4: What cooling methods are supported?
A4: Standard models feature natural cooling (IC410), while forced air cooling (IC416) is available for high-power or continuous-duty applications.

Q5: What protection levels are offered?
A5: WHEATSTONE 130 AC Servo Motors are available with IP54 to IP65 protection, ensuring safe operation in industrial environments with dust or limited moisture exposure.

Q6: Can the 130 AC Servo Motors be customized?
A6: Yes. WHEATSTONE provides custom voltage ratings, feedback systems, mounting options, and cooling designs to meet specific application needs.
