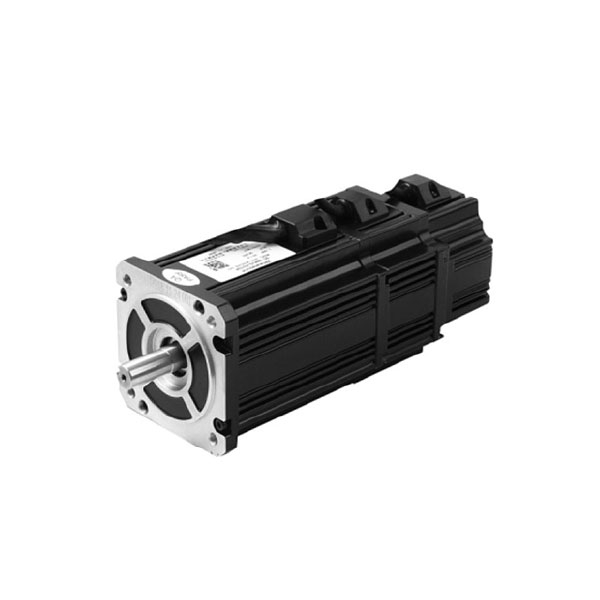

90 AC Servo Motor

  • 90 Series AC Servo Motor

Availability:
Quantity:
Inquire Add to Basket

Product Description

Motor Model

Motor ModelL(mm)
90ST-□024XX158.5
90ST-□035XX158.5
90ST-□050XX188.5
90ST-X02430F161.5
90ST-X03510F151.5
90ST-X05030F186.5
90ST-X07030F201.5

Motor Dimensions

Electrical Parameters

Main performance parameters
Motor Model90ST-□0243090ST-□0353090ST-□05030
Rated Power（KW)0.751.11.5
Rated current(A)3.04.46.0
Rated speed(RPM)300030003000
Maximum speed(RPM)360036003600
Rated Torque(NM)2.43.55.0
Maximum Torque(NM)7.210.5

15.0

Rotor of Inertia(kg.cm²)1.01.31.9



Previous:
Next:

Motors

Related Products

180 AC Servo Motor
180 Series AC Servo Motor
130 AC Servo Motor
130 Series AC Servo Motor

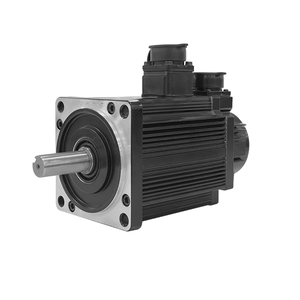

110 AC Servo Motor
