86ST-H01630-24V-S450/86ST-H02420-24V-S450
| Quantity: | |
|---|---|
Product Description

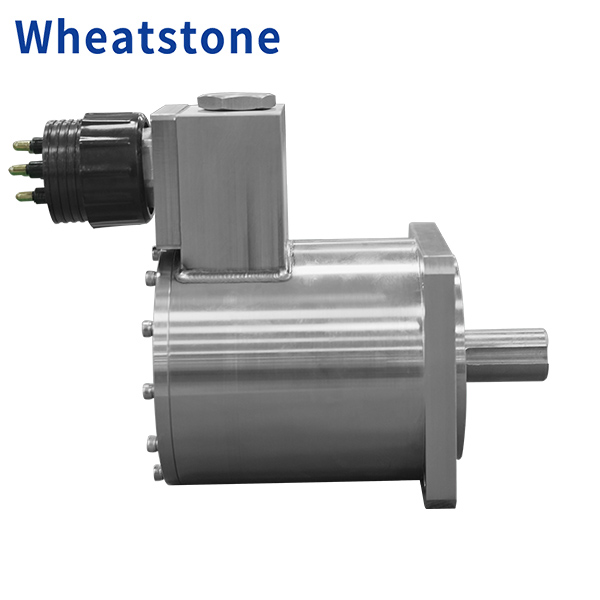

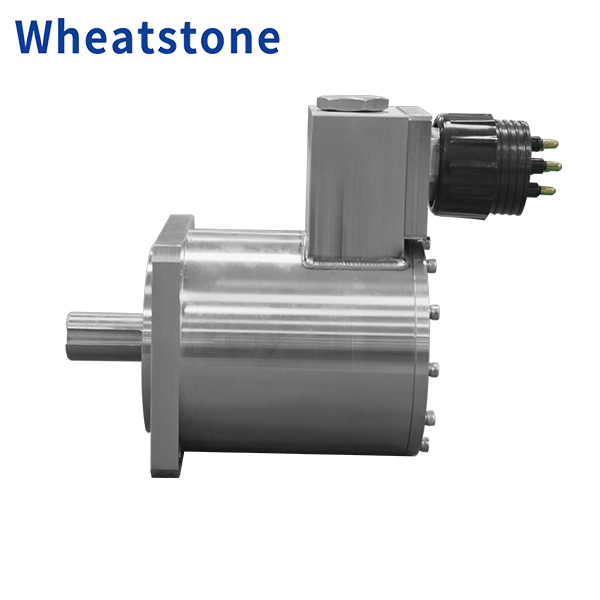

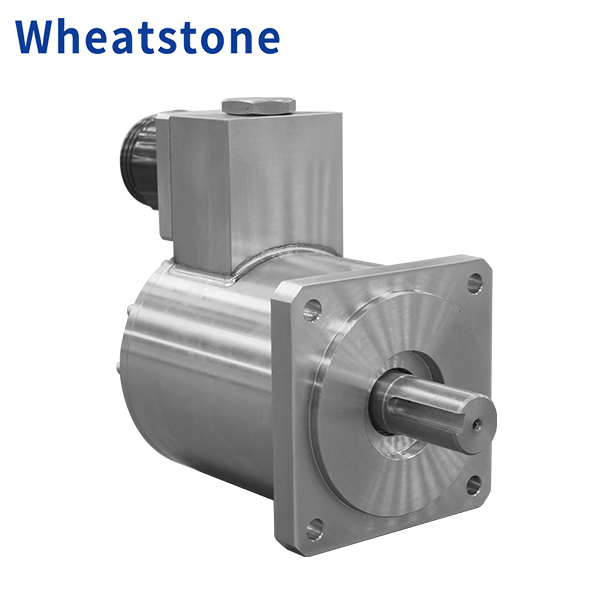

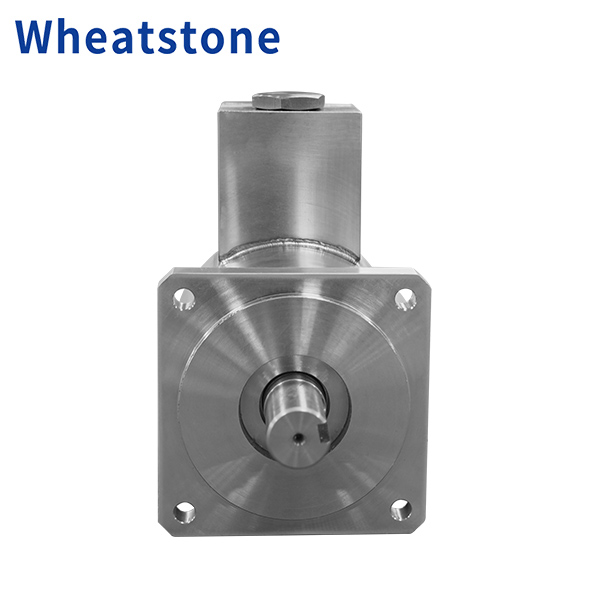

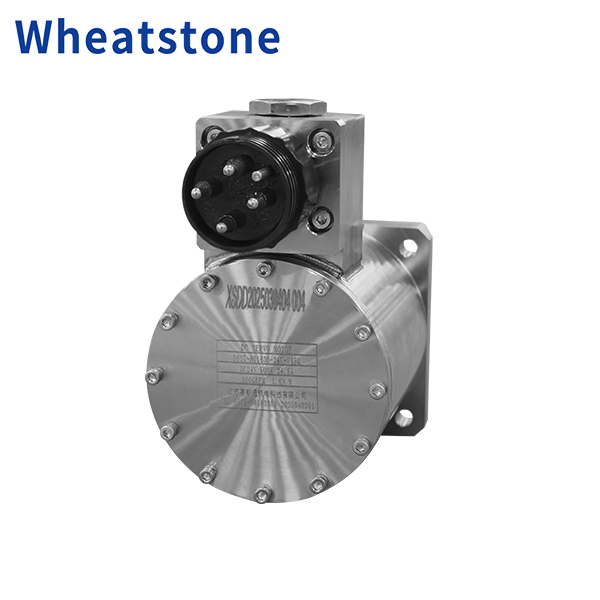

The WHEATSTONE UnderWater Motors. An oil-filled submersible motor is a specialized motor filled with insulating oil to withstand high pressures in the deep sea and provide effective cooling and lubrication; it serves as the core power equipment for underwater operations.
Internal oil filling and pressure equalisation:
The motor is filled with mineral oil (or transformer oil) with high insulating and lubricating properties, which serves to cool and lubricate the motor. Crucially, it is fitted with a pressure compensator that ensures the internal oil pressure remains slightly higher than the external water pressure (for example, maintaining a positive pressure differential of 0.05 MPa), thereby effectively preventing seawater ingress.
Sealing system:
A dual-seal design is employed, with mechanical seals used at dynamic sealing points such as the shaft extension end, whilst oil-resistant rubber ‘O’-rings are used at static sealing points such as the housing joint surfaces; together, these prevent oil leakage and the ingress of external water.
Auxiliary systems:
Some advanced designs also incorporate an automatic water-removal system which, in the event of accidental seawater ingress, utilises the pressure differential generated by the rotor’s rotation to drive the circulation of hydraulic fluid and purify it via a water-removal unit (such as a desiccant tank), thereby extending maintenance intervals. At the same time, various sensors—including those for temperature and water ingress—are installed within the motor to enable real-time monitoring and protection.
Motor Type: DC Servo Motor
Submersion Depth: 450 metres
Cooling Method: Natural / Optional water-cooled design
Housing: Stainless steel or coated alloy for anti-corrosion
Insulation: Moisture-resistant winding insulation
Motor Model
| Motor Model | L(mm) |
| 86ST-H01630-24V-S450 | 99 |
| 86ST-H02420-24V-S450 | 129 |

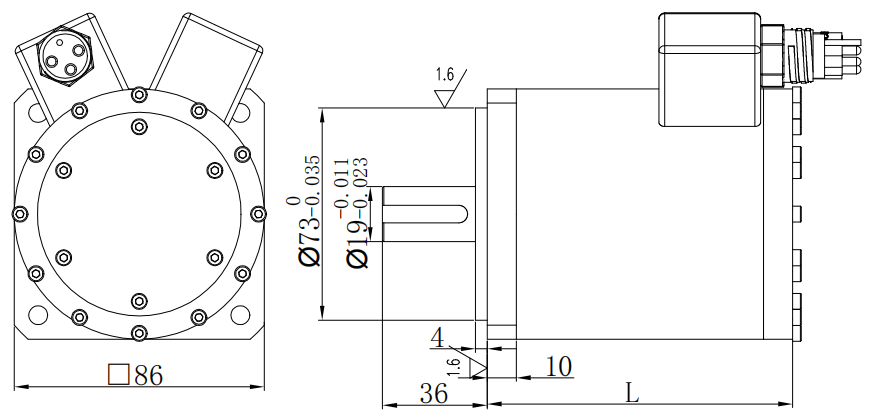

Motor Dimensions
Electrical Parameters
| Main performance parameters(86ST-H02420-24V-S450) | |||
| Rated Power(KW) | 0.5 | Operating temperature range(℃） | -54~+65℃ |
| Rated current(A) | 27 | Rated Voltage(V) | 24VDC |
| Rated speed(RPM) | 2000 | Insulation Class | F 155℃ |
| Rated Torque(NM) | 2.4 | Safety Class | Withstands 4.5 MPa pressure |
| Maximum Torque(NM) | 4.8 | Weight(KG) | |
| Main performance parameters(86ST-H01630-24V-S450) | |||
| Rated Power(KW) | 0.5 | Operating temperature range(℃） | -54~+65℃ |
| Rated current(A) | 24.5 | Rated Voltage(V) | 24VDC |
| Rated speed(RPM) | 3000 | Insulation Class | F 155℃ |
| Rated Torque(NM) | 1.6 | Safety Class | Withstands 4.5 MPa pressure |
| Maximum Torque(NM) | 3.2 | Weight(KG) | 4.3 |
Note:
The entire motor assembly meets salt spray resistance requirements (including connectors).
The surface roughness of the motor mounting flange meets 1.6.
Temperature requirements: -54 to +65°C
