80ST-X00630B-SS/80ST-X02415B-SS
| Quantity: | |
|---|---|
Product Description
An oil-filled dry-type submersible motor is a hybrid submersible motor that combines the “dry-type” motor structure with “oil-filling” technology. It is filled with insulating oil internally, but the main structure of the motor is similar to that of a conventional motor (dry-type), and it operates underwater through sealing and pressure compensation.
This design ingeniously combines the advantages of two traditional technologies: it retains the simplicity of a dry-type motor’s structure while using oil filling to address the core challenges of high pressure and heat dissipation in the deep sea.
"Dry" core, more reliable: The internal structure is essentially the same as that of a standard motor; components such as the stator and rotor operate in a relatively dry environment (the interior is filled with oil but contains no water), retaining the well-established design and ease of maintenance characteristic of general-purpose motors. This structure generally does not require complex and expensive water-resistant windings, offering further advantages in terms of maintainability and cost.
"Oil-filled" design, resistant to high pressure: the interior of the motor is filled with mineral oil that offers high insulation properties and excellent lubrication. This layer of oil not only acts as a cooling medium, efficiently dissipating heat, but also lubricates moving parts such as bearings, thereby reducing wear. More importantly, by incorporating a pressure compensator, it maintains a balance between internal and external pressures, which is key to withstanding the high pressures of the deep sea.
Motor Type: AC Servo Motor
Submersion Depth: 50 meters
Cooling Method: Natural / Optional water-cooled design
Housing: Stainless steel or coated alloy for anti-corrosion
Insulation: Moisture-resistant winding insulation
Motor Model
| Motor Model | L(mm) |
| 80ST-X00630B-SS | 160 |
| 80ST-X02415B-SS | 200 |

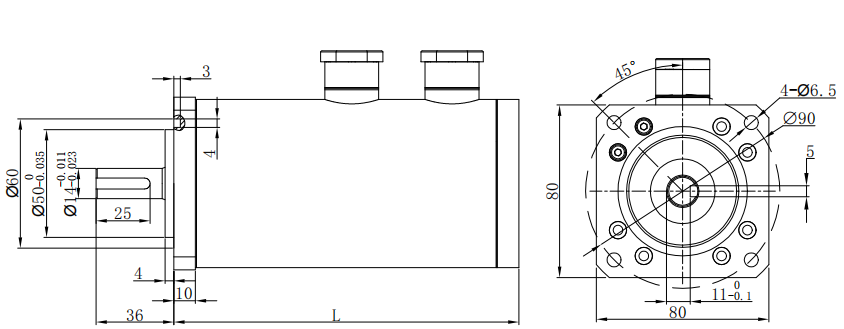

Motor Dimensions
Electrical Parameters
| Main performance parameters(80ST-X00630B-SS) | |||
| Rated Power(KW) | 0.2 | Rotor of Inertia(kg.cm²) | 0.3 |
| Rated current(A) | 2.4 | Rated Voltage(V) | 220VAC |
| Rated speed(RPM) | 3000 | Insulation Class | F 155℃ |
| Rated Torque(NM) | 0.6 | Safety Class | IP68 |
| Maximum Torque(NM) | 1.8 | Weight(KG) | |
| Main performance parameters(80ST-X02415B-SS) | |||
| Rated Power(KW) | 0.4 | Rotor of Inertia(kg.cm²) | 0.78 |
| Rated current(A) | 2.3 | Rated Voltage(V) | 220VAC |
| Rated speed(RPM) | 1500 | Insulation Class | F 155℃ |
| Rated Torque(NM) | 2.4 | Safety Class | IP68 |
| Maximum Torque(NM) | 7.2 | Weight(KG) | |
