Scientific Selection of Temperature Sensors in HighTemperature Motor Thermal Management

How Wheatstone Ensures Safe Operation with Precision Temperature Control

In the thermal management of hightemperature motors, selecting the appropriate temperature sensor is far more than a straightforward “buy and install” decision. It requires careful consideration of parameters such as temperature range, installation environment, response time, and expected service life. An unsuitable choice can lead to alarm delays, missed protection windows, or even sensor failure causing secondary damage.

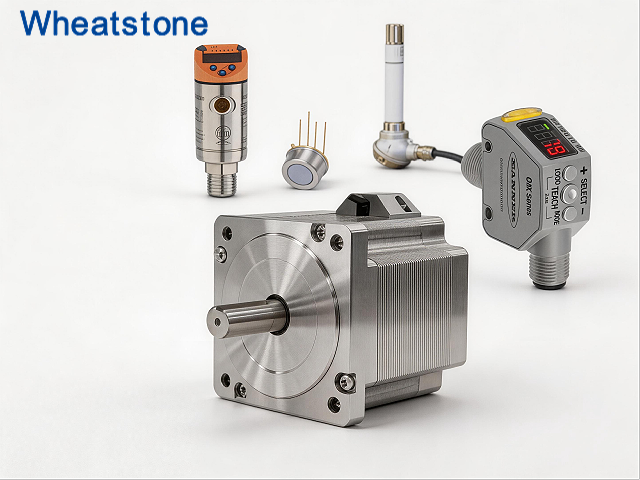

ⅠCore Sensor Types and Technical Characteristics

1.Thermocouples

Thermocouples operate on the Seebeck effect, generating a thermoelectric voltage when two dissimilar metals are subjected to a temperature difference at their junctions. Among the common types, Type K (NiCrNiSi) covers a range of -200 °C to +1,300 °C, featuring fast response and good vibration and shock resistance. Types S and B, based on platinumrhodium alloys, are suitable for higher temperatures.

2.Platinum Resistance Temperature Detectors (Pt100 / Pt1000)

Pt100 is the preferred choice for motor temperature monitoring. It exploits the characteristic of highpurity platinum wire whose electrical resistance changes predictably with temperature, exhibiting good linearity. At 0 °C, its resistance is 100 Ω, with a temperature coefficient of approximately 0.385 Ω/°C. Pt100 offers measuring accuracy up to ±0.1 °C, excellent stability, low nonlinearity, and longterm drift below 0.1 %/year. According to IEC 600341, Pt100 is recommended for winding and bearing temperature monitoring. Pt100/Pt1000 platinum RTDs are widely used for winding and bearing temperature monitoring of motors, transformers and generators due to their high accuracy, good stability and interchangeability.

3.Thermistors (NTC / PTC)

NTC thermistors decrease in resistance as temperature rises, offering high sensitivity but poor linearity and moderate accuracy, making them suitable for thermal switches and overtemperature protection where absolute accuracy is not critical. They are wellsuited for mediumlow temperature monitoring over a wide range of -55 °C to +200 °C.

ⅡTechnical Parameters and Selection Criteria

When selecting sensors for hightemperature motor applications, three technical dimensions should be prioritised.

1.Temperature Range

From general industry to aerospace and nuclear applications, highperformance sensors must maintain stability across a wide range from -196 °C to +200 °C. Pt100 covers -200 °C to +850 °C, fully satisfying the operating conditions of most hightemperature motors.

2.Accuracy and Stability

According to IEC 60751, platinum resistance thermometers are classified into accuracy classes such as AA, A and B. For hightemperature motors, insulation life halves for every 10 °C increase above the rated temperature. Using highaccuracy Pt100 sensors for realtime winding temperature monitoring helps prevent premature insulation failure. Class A Pt100 offers accuracy up to ±0.1 °C, while Class B provides ±0.3 °C – sufficient for highprecision control applications.

3.Electromagnetic Compatibility and Environmental Resistance

In highinterference industrial environments with VFDs and servo drives, sensor signals are susceptible to highfrequency noise. Twistedpair shielded construction effectively suppresses commonmode interference. Additionally, sensors must provide adequate dielectric strength; according to DIN EN 6180051, the electrical isolation between the sensor and the motor winding must meet specified withstand voltage requirements.

4.Sensor Mounting and Lead Wire Construction

The leads of embedded sensors must withstand the high temperatures of the VPI process, requiring insulation materials such as polyimide filminsulated wire. Glasssintered terminals and specialty ceramicencapsulated sensors offer good resistance to hightemperature, highhumidity environments, preventing insulation resistance degradation. According to the extended requirements of DIN EN 60751, thinfilm resistive elements should exhibit good resistance to vibration and thermal shock. Endface platinum RTDs are used for motor bearing temperature measurement, offering simple installation and direct reading of actual bearing temperature when connected to appropriate instrumentation.

III. Standardisation Pathways and Future Trends

Thermal management of hightemperature motors is evolving from reactive “postfault protection” into a source of data for predictive maintenance. IEC 600341 specifies that winding temperatures can be monitored by the resistance method (calculating average temperature rise from cold/hot resistance change) or by embedded detectors (thermocouples or Pt100 sensors placed in winding slots to measure local hotspot temperatures). Combining lumped parameter thermal network models with datadriven methods enables highaccuracy realtime prediction of winding and bearing temperatures.

Wheatstone‘s Sensor Configuration in HighTemperature Motors

Jiangsu Wheatstone fully considers thermal management and predictive maintenance requirements in its hightemperature motor designs. PT100 platinum RTDs or PT1000 sensors can be supplied upon customer request, with Aclass or Bclass accuracy in accordance with DIN EN 60751 / IEC 60751. Lead wires use polyimide film insulation to maintain integrity during the VPI process. Sensors and their signal leads can be factorycalibrated and subjected to insulation and dielectric testing before shipment, with type test reports provided in accordance with IEC 60751, IEC 600341 and other applicable standards. In the design of explosionproof servo motors, hightemperature vacuum motors and other specialty motors, Wheatstone has established a complete technical framework covering sensor selection, embedding positioning, signal conditioning and system integration.
