Electric Cylinder Servo Motors for Extreme Conditions: Wheatstone‘s Full-Range Custom Solutions Enable Precision Actuation in Harsh Environment

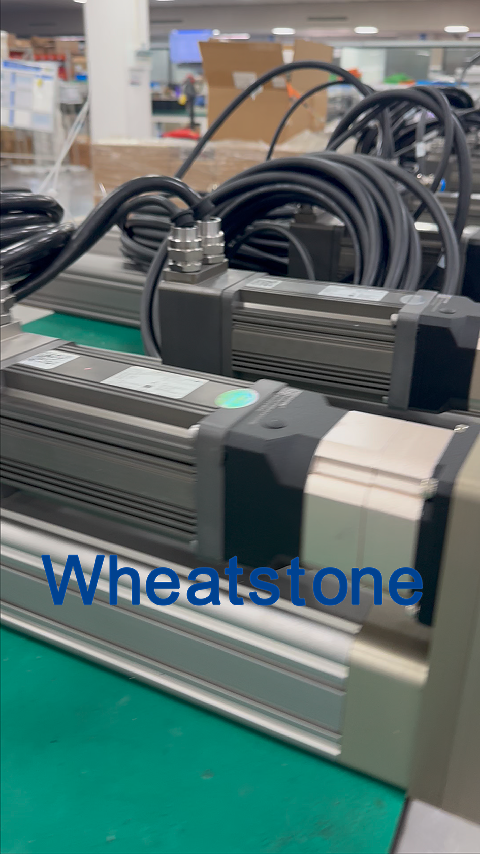

In industrial automation, aerospace, defence and advanced manufacturing, electric cylinders are increasingly replacing traditional pneumatic and hydraulic actuators as the core linear motion solution. From explosionproof petrochemical valve controls to cleanroom wafer transfer in semiconductor vacuum chambers; from -60°C freezer pushrods in lyophilisation lines to 200°C oven infeed mechanisms; from multiton heavyduty construction lifts to kilonewtonlevel underground mine supports – electric cylinders now operate in almost every “extreme condition”. Standard servo motors often fail to meet the combined demands of explosion protection, wide temperature range, ingress protection and dynamic response. Jiangsu Wheatstone has developed a comprehensive portfolio of servo motors tailored for electric cylinders under diverse extreme conditions, covering high temperature, low temperature, vacuum, explosionproof, deepsea, and heavyduty highfrequency applications. With a “onecondition, onesolution” deep customisation capability, Wheatstone delivers safe, precise and reliable power for electric cylinders operating in the most demanding environments.

I. Five Extreme Conditions and Technical Challenges for Electric Cylinder Servo Motors

II. Core Technologies of Wheatstone Servo Motors for Electric Cylinders

1. HighTemperature: Class H/C Insulation + SmCo Magnets + PFPE Grease

Wheatstone HT series motors use Class H (180°C) or Class C (200°C+) polyimidefilminsulated magnet wire with VPI, providing ample thermal margin. Magnets are graded: N38UH hightemp NdFeB below 150°C, SmCo for 150200°C (flux decay <5% at 200°C). Bearings are lubricated with PFPE grease, stable >300°C. In an automotive parts oven electric cylinder (120°C ambient), an HT motor has run for 24 months with winding temperature consistently below 140°C.

1. LowTemperature: -60°C WideTemp Grease + C3 Bearings + AntiCondensation Heater

LT series motors use specialty grease with pour point below -70°C, remaining fluid at -60°C. Bearings are C3/C4 clearance to accommodate thermal contraction. Optional builtin anticondensation heaters maintain internal temperature above dew point during shutdown. In a vaccine freezedryer electric cylinder (-50°C cold store), an LT motor has started reliably for two winters with no condensation issues.

1. Vacuum: LowOutgassing Materials + Full Ceramic Bearings + GlassSintered Terminals

VX series motors use polyimide insulation achieving TML<0.1%, CVCM<0.01%. For UHV, full ceramic silicon nitride bearings with solid lubricant coatings eliminate grease volatilisation. Glasssintered hermetic terminals provide leak rates <10⁻⁹ Pa·m³/s. In a semiconductor PVD coater vacuum electric cylinder (10⁻⁵ Pa), a VX motor has run for 30,000 hours without outgassing contamination.

1. ExplosionProof: Ex db IIC T4 Gb / Ex tb IIIC T130℃ Db Dual Certification

EX series motors carry both gas flameproof (Ex d IIB T4 Gb / Ex db IIC T4 Gb) and dust ignition proof (Ex tb IIIC T130℃ Db) certifications, suitable for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous areas. Ingress protection IP66/IP67, optional 316L stainless steel housing and heavyduty anticorrosion coatings. In a petrochemical valve electric cylinder (xylene vapour environment), an EX motor has operated for 18 months with no leakage or corrosion.

1. HeavyDuty / HighFrequency: 3× Peak Torque + LowInertia Rotor + MasterSlave Control

TBYC series and highinertia servo motors are optimised for frequent startstop and reversing. Peak torque up to 3× rated, rotor inertia reduced by about 30% compared to standard motors, enabling millisecond response. For multiaxis drives, masterslave control ensures automatic load sharing. In a port AGV lift electric cylinder (15 tonne load, 500 lifts/day), the motor has run for two years with no overload failures.

III. RealWorld Application Cases

Case 1: Petrochemical ExplosionProof Valve Electric Cylinder (Ex d IIC T4 Gb)

A refinery in East China replaced pneumatic actuators with Wheatstone 110EX explosionproof servo motors driving ballscrew electric cylinders (Ex d IIC T4 Gb, IP66, 23bit absolute encoder). Valve opening accuracy improved from ±1.5° to ±0.1°, response time reduced from 2 s to 0.3 s. Electric cylinder thrust 5 tonnes. The system has run for 24 months with zero failures.

Case 2: Semiconductor Vacuum Coater Electric Cylinder (10⁻⁵ Pa)

A vacuum coating equipment manufacturer required a shutter drive inside a 10⁻⁵ Pa chamber with low outgassing, oilfree operation and high positioning accuracy. Wheatstone supplied a VX vacuum servo motor with miniature planetary gearbox, using full ceramic bearings with solid lubrication, polyimide insulation and glasssintered terminals. The electric cylinder achieved ±0.01 mm repeatability and has operated for 30,000 hours without outgassing or lubrication failure.

Case 3: -50°C Vaccine FreezeDryer Electric Cylinder

A vaccine manufacturer‘s freezedryer shelf pushrod required thermal cycling from -50°C to +40°C. The original motor experienced coldstart difficulty and internal condensation. Wheatstone supplied an LT series lowtemperature servo motor with C3 bearings, PFPE lowtemp grease and builtin anticondensation heater. After 48 hours of coldsoaking at -50°C, the motor started successfully and has operated through two winters with no coldstart issues or condensation.

Case 4: HeavyAGV Lift Electric Cylinder (15 tonnes)

A newenergy battery plant required AGVs to lift 15tonne battery packs for charging. Wheatstone supplied a TBYC hightorque servo motor with planetary roller screw electric cylinder. Peak torque 120 N·m (3× rated), lifting positioning accuracy ±0.1 mm. The AGV performs 500 lifts/day and has run for two years with no motor overheating or step loss.

Case 5: Port AGV Steering Electric Cylinder (Saltspray resistant)

A port automated AGV steering cylinder was exposed to salt spray and seawater splash. Wheatstone supplied an EX explosionproof servo motor with 316L stainless steel housing, heavyduty anticorrosion coating, fluororubber seals and IP66 protection (Ex d IIB T4 Gb). The motor has operated for 18 months in the marine environment with no rust, seal failure or steering accuracy degradation (±0.05°).

IV. Wheatstone Servo Motor Selection Matrix for Electric Cylinders

• All series customisable for voltage (DC 24 V3000 V / AC 220 V1140 V), power 50 W200 kW, frame 40400 mm, encoder options (23bit absolute / resolver / incremental), brake, manual release, etc.*

V. Full Certification Portfolio

Wheatstone holds CCC, IECEx, ATEX, China Classification Society (CCS) Type Approval, as well as Class I mining safety, Class II gas, Class III dust explosion protection certifications. Materials meet ASTM E595 vacuum outgassing standards (TML<0.1%, CVCM<0.01%). The company provides fullprocess support from application analysis, motor selection, electrical interface customisation to onsite commissioning – truly “oneclientonesolution”.

VI. Conclusion

The range of extremecondition electric cylinder applications is expanding: from -60°C freezedryers to 200°C ovens, from 10⁻⁷ Pa vacuum chambers to Zone 1/Zone 2 hazardous areas, from 15tonne heavylift AGVs to micronlevel semiconductor alignment. Jiangsu Wheatstone‘s fullrange custom servo motor portfolio delivers fieldvalidated power solutions for every extreme condition. When your electric cylinder faces an “impossible mission”, Wheatstone has already prepared the right heart for it.
