Wheatstone High-Temp Motors Survive 1000℃ Steel Mill Heat

Conveying 1000℃ Steel Slabs at Close Range – Roll Table Motors Face the Dual Assault of Thermal Radiation and Heavy Loads. Wheatstone H-Class Insulation and IP67 Sealing Secure the Power Lifeline of Hot Rolling Mills

At 3 AM beside a hot rolling mill finishing train, the infrared thermometer read 95℃ on the motor housing. The maintenance technician noted in the log: “#17 roll table motor, bearing noise, scheduled for replacement next week.” Behind this entry is another soldier about to fall on a production line that rolls millions of tonnes of hot strip steel annually.

Hot strip steel exits the roughing mill at temperatures of 1050℃ to 1200℃. After repeated passes through the finishing mill, the strip enters the run-out table for laminar cooling, dropping from approximately 900℃ to 600℃. Roll table motors are installed just tens of centimetres from these thousand-degree slabs, enduring the triple assault of thermal radiation, severe temperature variations, and heavy impact loads.

The Three Mountains on Hot Rolling Mill Roll Table Motors

Mountain 1: Thermal Radiation – Motor Housing Temperatures Easily Exceed 90℃

On hot rolling mill production lines, roll table motors remain in a constant high-temperature state. Production rhythm is fast, and the motors are positioned close to the finished steel, continuously exposed to heat. Standard motors are designed for a reference ambient temperature of just 40℃. In the thermal radiation environment of hot rolling mill roll tables, even with winding temperature rise controlled within 80K, After superposition, the ambient temperature can still easily exceed the allowable upper limit of the insulation material. A Class H (180℃) motor operating over long periods in an ambient temperature above 90℃ may have winding temperatures approaching 170℃. Following the “10℃ Rule” – for every 8-10℃ increase above rated temperature rise, insulation life halves – the actual service life of such a motor is significantly reduced.

Mountain 2: Severe Temperature Variations – The Fatigue Assault of Thermal Cycling

The operating cycle of hot rolling mill roll tables is measured in seconds. As a one-tonne slab passes over the roll table, the motor completes a full-load start and stop within seconds; after the slab passes, the roll table enters a brief “idle waiting period.” Thousands of start-stop-start temperature cycles per day impose sustained high-intensity fatigue loading on motor insulation and bearings. The temperature changes during slab transfer cause thermal expansion that can seize bearings at the roller ends. This “chronic damage” is far more difficult to detect than sustained high temperature, yet equally fatal – repeated thermal expansion and contraction cause micro-cracks in insulation layers, abnormal bearing clearance, and accelerated grease degradation.

Mountain 3: Heavy Impact Loads – Starting Torque Must Reach 1.8× Rated or Above

Roll tables require frequent start-stop operation (e.g., material loading/unloading, segmented conveying), demanding high starting torque motors (starting torque multiple ≥1.8× rated torque) to avoid “stalling” during start-up; for high impact loads (such as hot slab conveying in metallurgy), wound-rotor induction motors or variable frequency drive motors may be selected. On hot rolling mill lines, each slab weighs from several tonnes to tens of tonnes – roll table motors must deliver instantaneous high torque during full-load starts. One hot rolling mill finishing GF17 roll table has 19 motors rated at 11kW each, with the variable frequency drive offering an overload capacity of 136% for 1 minute. If motor overload capacity is insufficient, the result is frequent tripping disrupting production rhythm, or motor burnout causing unplanned line shutdown – with losses on a hot rolling line calculated in tens of thousands of RMB per minute.

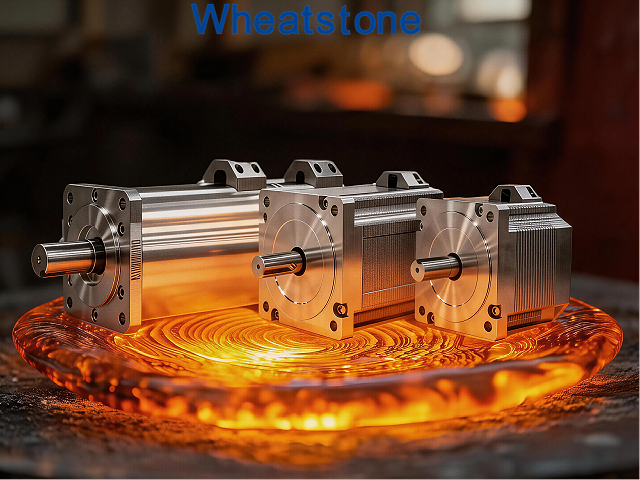

Wheatstone High-Temperature Ex Motors: Heat-Resistant Power Engineered for Hot Rolling Mill Roll Tables

Jiangsu WHEATSTONE, with more than 20 years of specialised experience in special-purpose motors, has launched a full range of high-temperature ex motors specifically for the demanding conditions of hot rolling mill roll tables. From H-Class insulation systems and IP67 ingress protection to wide-temperature lubrication, every technology directly addresses the core pain points of hot rolling mill roll tables.

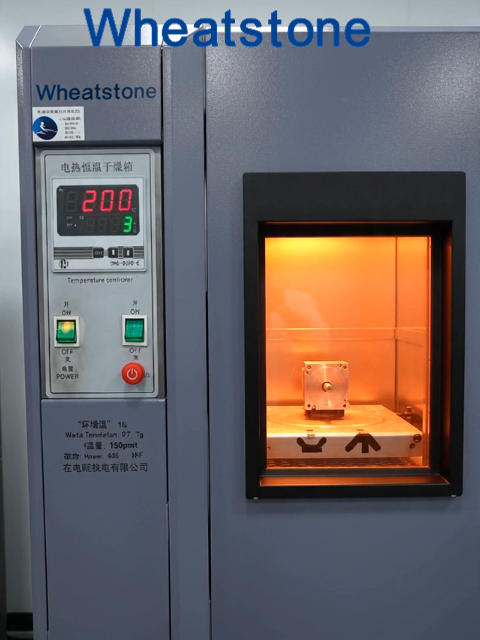

(1) H-Class Insulation + 200℃-Grade Special Magnet Wire – Securing the 180℃ Thermal Baseline

WHEATSTONE high-temperature ex motors are equipped as standard with Class H (180℃) insulation systems (per IEC 60085). Stator windings use 200℃-grade special variable frequency magnet wire, with slot insulation employing a multi-layer composite of polyimide film, glass fabric, and Nomex paper. The complete winding assembly undergoes vacuum pressure impregnation (VPI), with solvent-free high-temperature impregnating resin fully filling every void in the winding under vacuum pressure. Class H insulation maintains sufficient dielectric strength and mechanical toughness at sustained 180℃ high temperatures, while 200℃-grade magnet wire provides additional thermal margin – handling the extreme high-temperature environment of hot rolling mill roll tables with ease.

(2) IP67 Fully Sealed Protection + Labyrinth Bearing Seals – Keeping Scale and Cooling Water Out

Hot rolling mill roll table areas are not only high-temperature but also permeated with iron oxide scale dust, oil, and laminar cooling water splash. WHEATSTONE high-temperature ex motors offer optional IP67 ingress protection – dust-tight and capable of withstanding temporary immersion in water to a depth of 1 metre for 30 minutes without harmful ingress. Bearing housings feature labyrinth seal structures for effective waterproofing. The shaft extension employs a triple-seal structure: V-ring dust seal + labyrinth seal + high-temperature fluorocarbon rubber oil seal, with double-sealed terminal box construction – effectively resisting iron oxide scale dust and cooling water ingress.

(3) High-Temperature Bearings + Sealed Maintenance-Free Lubrication – Preventing Bearing Seizure Under Heat

Bearings are the first components to fail in hot rolling mill roll table motors. Above 100℃, conventional greases undergo rapid base oil oxidation and evaporation, with thickener hardening and carbonisation. WHEATSTONE high-temperature ex motors use high-temperature bearings with sealed maintenance-free lubrication. Bearings are lubricated with wide-temperature specialty grease (-40℃ to 180℃), supplemented by grease replenishment devices – maintaining stable lubrication performance under sustained high-temperature environments, significantly extending bearing replacement intervals and reducing unplanned downtime frequency.

(4) High Overload Capacity – Handling Heavy Impact Loads with Ease

WHEATSTONE high-temperature ex motors deliver peak torque up to 3 times rated torque. Facing instantaneous heavy loads such as full-load starts and slab impacts on hot rolling mill roll tables, the motor instantly delivers ample torque for smooth, stable loading – no jitter, no stalling.

(5) Full Customisation Capability – Adapting to Different Power Ratings and Mounting Configurations

WHEATSTONE high-temperature ex motors are customisable for power rating, voltage (380V/660V/1140V etc.), mounting configuration (B3/B5/B35), and cooling method (natural convection/forced air), adapting to the drive requirements of different roll table positions on hot rolling mill lines.

(6) Ex d IIB T4 Gb Flameproof Certification (Optional) – A Safety Barrier for Rolling Mill Environments

Flammable gases or combustible dust may be present in rolling mill workshop environments. WHEATSTONE high-temperature ex motors are optionally available with Ex d IIB T4 Gb flameproof certification – the flameproof enclosure withstands internal explosion pressure and prevents flame propagation to the external atmosphere; Temperature Class T4 ensures the maximum surface temperature does not exceed 135℃.

Applicable Standards Reference

When 1000℃ steel slabs race across the hot rolling mill run-out table; when 19 roll table motors simultaneously deliver multiple times rated torque during full-load starts; when a WHEATSTONE high-temperature motor operates continuously for thousands of hours without failure at 90℃ housing temperature – on every hot rolling mill line, inside every roll table power unit, WHEATSTONE high-temperature ex motors are securing the power lifeline of hot rolling mill production with H-Class insulation thermal endurance, IP67 fully sealed protection, and 3× overload capacity.

About Wheatstone

With more than 20 years of specialised experience in special-purpose motors, WHEATSTONE offers a comprehensive portfolio including high-temperature ex motors, flameproof servo motors, deep-sea motors, and axial flux motors. The company is ISO 9001 and IATF 16949 certified, holding China CCCEx flameproof, coal mine MA, IECEx, and EU ATEX explosion protection certifications.

For customised high-temperature ex motor solutions for hot rolling mill applications, please contact the Wheatstone technical team.
