Wheatstone Axial Flux Motors Cut Pump Energy Use by 30%

Pumps, Fans, Compressors – The Three Pillars of Industrial Energy Consumption – Wheatstone Axial Flux Motors Are Redefining Their Future

In industrial facilities, pumps, fans, and compressors are the three largest consumers of electrical power. Pumping systems alone account for approximately 20% of industrial electricity consumption worldwide, with fans and compressors adding significantly to the total. In power plants, chemical facilities, wastewater treatment plants, and data centres, these machines run 24/7, and electricity bills climb year after year.

These devices share a common pain point: limited installation space.

The cylindrical form factor of conventional radial flux motors dictates a minimum axial length that cannot be compressed. In pump stations, fan rooms, and compressor skids, the motor often becomes the limiting factor in equipment layout – the entire system must be enlarged just to accommodate the motor. In retrofit projects, the mounting position of the old motor is fixed; if the new motor does not fit, the entire upgrade plan must be redesigned.

How Axial Flux Motors Break the Deadlock: Half the Volume and Weight at the Same Power

In an axial flux motor, the magnetic field direction is axial, with the stator and rotor arranged in a disc configuration facing each other in parallel. This flat geometry delivers a direct benefit: at equivalent power output, axial flux motors achieve approximately 50% reduction in both volume and weight compared to conventional radial flux motors. Axial length can be reduced to one-third of that of traditional motors.

In industrial pump, fan, and compressor applications, this advantage delivers tangible value.

Application 1: Power Plant Circulating Water Pumps – 27% Energy Savings, RMB 50,000 Annual Electricity Cost Reduction

In thermal power plants, circulating slurry pumps are major energy consumers. Motors are typically rated at 110 kW or above, running continuously, with substantial electricity costs.

At the Ningbo Ningeng Thermal Power plant, a retrofit project replaced a conventional radial flux motor driving a circulating slurry pump with an axial flux motor solution. Under identical operating conditions, the new motor achieved a 27% reduction in hourly electricity consumption compared to the original motor, saving 101,000 kWh annually. At RMB 0.5/kWh, this translates to annual electricity cost savings of approximately RMB 52,000.

This is not an isolated case. In a demineralised water pump retrofit, a 110 kW axial flux motor solution achieved an energy saving rate exceeding 32.1%, with annual electricity cost savings of over RMB 63,000 per pump. The equipment has operated smoothly, receiving strong endorsement from the plant's technical team.

In a refrigeration circulating water pump application, a 15 kW axial flux motor-driven pump replaced aging equipment and achieved a 38% energy saving rate after more than six months of stable operation.

Application 2: Industrial Fans – Flat Design Unlocks Installation Space

Fan installation space is often constrained by ductwork layouts and plant room geometry. Conventional cylindrical motors, with their long axial lengths, are difficult to accommodate in compact fan rooms. The flat disc design of axial flux motors allows the motor to be integrated directly into the fan mounting plane without consuming additional axial space.

In ventilation systems, reduced motor weight means lower loading on fan supports and foundations. In new installations, this directly reduces civil construction costs; in retrofit projects, it means existing foundations need not be reinforced to accommodate the replacement motor.

Application 3: Compressors – High Power Density Drives System Weight Reduction

Centrifugal and screw compressors demand high power density from their drive motors. In mobile compressors and skid-mounted compressor packages, overall system size and weight directly impact transport and installation convenience.

Axial flux motors, with their 50% reduction in volume and weight at equivalent power, enable significantly more compact compressor package designs. Research indicates that axial flux motors are particularly well-suited for applications with axial space constraints, including fans, blowers, pumps, and compressors.

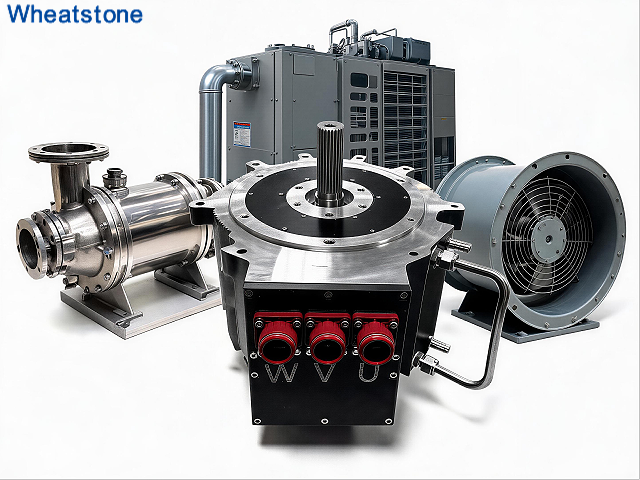

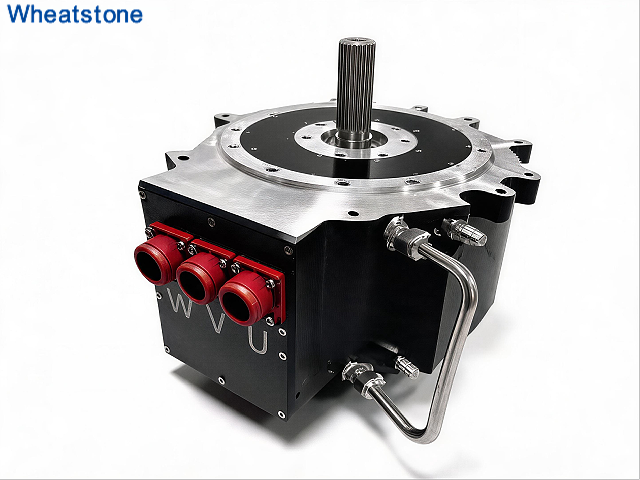

Wheatstone Custom Axial Flux Motors: Engineered for Industrial Fluid Equipment

Jiangsu Wheatstone, with more than 20 years of specialised experience in special-purpose motors, offers customised axial flux motor solutions for industrial pumps, fans, and compressors.

Customisation 1: Precision Matching of Power and Speed

Wheatstone customises the power-speed characteristic curve of each motor based on the specific load profile of the pump, fan, or compressor. For centrifugal pump square-law torque characteristics, variable air volume control requirements for fans, and constant torque loads for compressors, targeted electromagnetic designs are available.

Customisation 2: Flexible Interface Adaptation

Flange dimensions, shaft extension configurations, and mounting orientations – Wheatstone supports customisation to match the specific interface requirements of equipment manufacturers, enabling "drop-in replacement" of axial flux motors for existing radial flux motors.

Customisation 3: Efficiency-First Electromagnetic Optimisation

The inherently high efficiency of axial flux motors, combined with Wheatstone's refined electromagnetic design, delivers measurable energy savings in long-running applications such as pumps, fans, and compressors. Industry data indicates that at equivalent power output, axial flux motors can achieve approximately 50% reduction in both volume and weight while maintaining high operating efficiency across the full operating range.

Customisation 4: Environmental Adaptability

Wheatstone customises ingress protection ratings (IP54 to IP66), anti-corrosion coatings, cooling methods (natural convection / forced air / liquid cooling), and explosion protection configurations to suit different industrial environments – power plants, chemical facilities, and wastewater treatment plants.

Applicable Standards Reference

When a power plant circulating pump runs with 27% energy savings; when a data centre cooling fan operates quietly in confined space; when a compressor package achieves significant weight reduction through motor weight savings – Wheatstone custom axial flux motors are driving industrial fluid equipment toward a more efficient and compact future with "half the volume and weight at the same power."

About Wheatstone

With more than 20 years of specialised experience in special-purpose motors, Wheatstone offers a comprehensive portfolio including axial flux motors, flameproof servo motors, deep-sea motors, and high-temperature motors. The company is ISO 9001 and IATF 16949 certified, offering custom axial flux motor solutions from 50W to 200kW.

For customised axial flux motor solutions for industrial fluid equipment, please contact the Wheatstone technical team.
