Wheatstone OilFilled DeepSea Motors

In deepsea exploration, underwater robotics, seabed mining and offshore oil & gas development, motors must operate for extended periods at depths of hundreds or thousands of metres. Seawater is both corrosive and conductive, with conductivity increasing under pressure, while every 10 m of depth adds roughly one atmosphere. Under such conditions, standard drysealed motors rely entirely on their housing strength to resist external water pressure; beyond 500 m, the housing wall must become impractically thick, and seals tend to deform and leak under the enormous pressure differential. The core principle of an oilfilled deepsea motor is therefore to shift from “resisting pressure” to “balancing pressure”.

I. Technical Essence of OilFilled DeepSea Motors

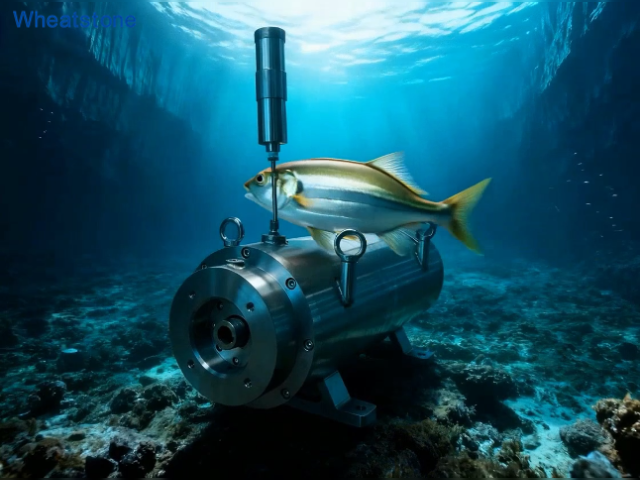

An oilfilled deepsea motor is a specialty motor whose internal cavity is filled with highinsulation dielectric oil and connected to the external seawater via a bladder or piston pressure compensator. As the motor descends, external water pressure rises, the compensator compresses, and the internal oil pressure increases correspondingly – keeping the internal and external pressures in balance at all times. The housing no longer bears a significant pressure differential, so it can be made lighter and seals are not overly stressed. This is the fundamental structural difference that gives oilfilled motors their advantage over conventional drysealed designs.

Three core advantages of oilfilled deepsea motors:

Pressure balance eliminates excessive housing weight: With internal oil pressure always matching external water pressure, housing wall thickness can be significantly reduced. For the same power output, the motor is more compact and lighter – a crucial weightsaving benefit for deepsea vehicles operating below 3,000 m.

Improved insulation and cooling: Oil has higher dielectric strength than air and better thermal conductivity. Heat generated in the windings is conducted through the oil to the housing and then carried away by the surrounding seawater, creating an efficient thermal path even in the absence of convection cooling.

Enhanced seal reliability: Pressure balance keeps the pressure differential across seals very small, so even at depths of several thousand metres, seals are not deformed by high differential pressures. The oil also provides internal corrosion protection and moisture exclusion, extending maintenancefree operation in deepsea environments.

II. Applications of OilFilled DeepSea Motors

Oilfilled deepsea motors are used in virtually all subsea applications requiring operation below 500 m. For ultradeepwater developments beyond 3,000 m, the oilfilled pressurecompensated configuration is widely regarded as the defacto engineering approach. Typical applications include:

Deepsea ROV/AUV thrusters: Operating at 3,0006,000 m, requiring compact size, high thrust, fast response, and longterm maintenancefree operation.

Deepsea mining vehicle hydraulic power units: Operating at depths up to 8,000 m, requiring sustained operation under heavy load, shock conditions and highly abrasive, corrosive slurry environments.

Seafloor observatory equipment: Deployed at 3,0006,000 m, requiring long service life and low failure rates, with no risk of seal leakage contaminating the marine environment.

Subsea valve actuators and underwater manipulators: Requiring precise positioning under high pressure, low temperature and zero illumination, with demanding feedback accuracy and sealing integrity.

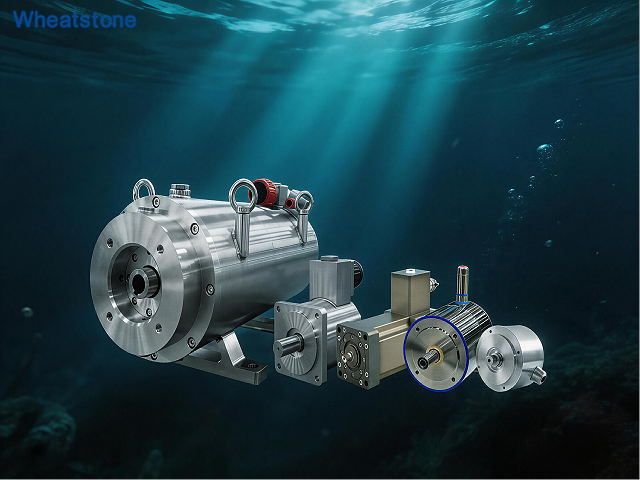

III. Wheatstone OilFilled DeepSea Motor Product Range

Jiangsu Wheatstone has developed a comprehensive range of oilfilled/pressurecompensated deepsea motors for different depth ratings and application needs.

1. WD Series (Shallow / MediumDepth Propulsion Motors)

Depth rating: ≤500 m

Power range: 155 kW

Sealing: Multistage silicon carbide mechanical seals + fluoroelastomer Orings, IP68

Applications: Shallowwater ROV thrusters, underwater cleaning robots, offshore platform auxiliary equipment

The WD series is suitable for operations down to 500 m, using proven mechanical seal and Oring combinations that balance reliability and cost. It has been widely deployed in shallowwater observation and cleaning applications.

2. WDU Series (Deep / UltraDeep PressureCompensated Motors)

Depth rating: ≤3,000 m

Power range: 7.5132 kW

Core sealing technologies: Oilfilled pressure compensation (bladder compensator), glasssintered hermetic terminals, multistage silicon carbide mechanical seals

Housing materials: 316L stainless steel / titanium alloy (optional), heavyduty anticorrosion coating

Applications: Deepsea ROV main thrusters, deepsea research equipment, seafloor observatories, deepsea mining vehicle hydraulic power units

The WDU series is an important part of Wheatstone‘s deepsea product line. The internal cavity is filled with highinsulation dielectric oil, connected to seawater via a bladder or piston to maintain pressure balance. The housing is made of 316L stainless steel or titanium alloy, combining strength with corrosion resistance; terminals are glasssintered hermetic feedthroughs with leak rates <10⁻⁹ Pa·m³/s. The series has accumulated significant operating hours in deepsea research and mining applications.

Case study: A deepsea research ROV used Wheatstone oilfilled brushless thrust motors rated for 3,000 m depth, delivering 120 kgf thrust and operating continuously for 2,000 hours without failure.

3. WDUP Series (FullOceanDepth / Hadal Research Motors)

Depth rating: ≤8,000 m

Sealing: Fully sealed pressurebalanced chamber, isobaric sealing configuration, glasssintered terminals, doublewalled housing

Housing material: Titanium alloy (resists chloride pitting; dense oxide film is virtually inert in seawater)

Applications: 8,000 mclass hadal research equipment, fulloceandepth AUV thrusters, ultradeep underwater manipulators

The WDUP series was developed for hadal zone research in areas such as the Mariana Trench. The fully sealed pressurebalanced chamber is optimised through FEA and must pass a 1.5× working pressure hydrostatic test to operate safely at 8,000 m. All electrical feedthroughs are glasssintered to prevent leakage. This series is designed and manufactured to meet the combined insulation and sealing demands of ultradeep highpressure environments.

Case study: Wheatstone WDUP series deepsea motors are designed specifically for 8,000 m hadal research, with over 4,000 cumulative operational hours and validated sealing performance. In a deepsea mining vehicle project, Wheatstone WDU series motors (3,000 m rating, oilfilled pressure compensation, titanium housing) accumulated over 4,000 hours without seal leakage.

4. Hybrid OilFilled / DrySealed DeepSea Motors (Custom Specialty)

Technology: Combines the ease of maintenance of drysealed motors with the deepwater pressure resistance of oilfilled designs

Core configuration: Isobaric sealing, 316L stainless steel/titanium housing, 3× peak overload capability, oilwater composite cooling

Applications: Deepsea salvage equipment, underwater cutting robots, heavyduty deepsea mining vehicles, emergency rescue power stations

For demanding, highreliability applications such as deepsea salvage, Wheatstone has developed hybrid oilfilled/drysealed motors. This configuration retains the simple maintenance of drysealed motors for shallowwater and intermittent operation while achieving deepwater pressure resistance through oilfilled pressure compensation. These motors have been deployed in hydraulic power stations, underwater cutting robots and other salvage equipment.

IV. Wheatstone‘s Core DeepSea Motor Technology

Wheatstone‘s approach to deepsea motor design is systematic, integrating materials, sealing, insulation and cooling rather than relying on any single technique:

Oilfilled pressure compensation: The motor interior is filled with highinsulation dielectric oil and connected to seawater via a bladder or piston, maintaining realtime pressure balance. This allows the housing to be made of 316L stainless steel or titanium alloy, reducing weight while maintaining strength.

Corrosionresistant material system: Housings are standard 316L stainless steel, with pitting resistance significantly better than ordinary stainless steel. For deep, highly corrosive environments, titanium alloy housings are available – the dense oxide film that naturally forms on titanium offers good resistance to seawater corrosion. All fasteners are A480 stainless steel, seals are fluoroelastomer, and housings are coated with heavyduty anticorrosion finishes.

Allmetal glasssintered seals: Cable entries use glasssintered hermetic terminals, where metal pins are fused with specialty glass at high temperature to form an atomiclevel bond with leak rates <10⁻⁹ Pa·m³/s. Dynamic shaft seals use multistage silicon carbide mechanical seals, with highviscosity sealing fluid forming a micronthick lubricating and sealing film between the faces.

Vacuum Pressure Impregnation (VPI): Stator windings are Class H (180°C) polyimideinsulated and subjected to VPI processing, where solventfree resin is drawn under vacuum to fill every void. After this process, the motor maintains insulation resistance above specification even after 24 hours immersion in 3% salt water, meeting the longterm electrical safety requirements of deepsea highpressure immersion.

V. Wheatstone DeepSea Motor Selection Guide

Series	Depth Rating	Power Range	OD Range	Sealing	Typical Applications
WD Series	≤500 m	155 kW	80200 mm	Multistage mech. seals + Orings	ROV thrusters, underwater cleaning, deepwell pumps
WDU Series	≤3,000 m	7.5132 kW	120300 mm	Oilfilled pressure compensation + glasssintered terminals	Deepsea research, mining vehicles, seafloor observatories
WDUP Series	≤8,000 m	Custom	Custom	Fully sealed pressurebalanced chamber + titanium housing	Hadal research, fulloceandepth equipment
Hybrid OilFilled/DrySealed	Custom (3,0008,000 m)	Custom	Custom	Isobaric sealing + multistage SiC mechanical seals	Deepsea salvage, underwater cutting robots, emergency power stations

• All series customisable for voltage (DC 24 V3000 V), speed, mounting flange, encoder type (23bit absolute/resolver/incremental), brake, etc. Optional 316L stainless steel/titanium housing, heavyduty anticorrosion coating, builtin temperature sensors.*

Wheatstone holds CCC, IECEx, ATEX and China Classification Society (CCS) type approval certifications. Every motor is factorytested for pressure resistance, seal integrity and temperature rise, with traceable test records. The company offers a full range of permanent magnet motors covering frame sizes 40400 mm, power 50 W200 kW and voltage DC 24 V3000 V, with proven engineering experience in explosionproof, vacuum, deepsea, highlow temperature and radiationhardened specialty applications.
