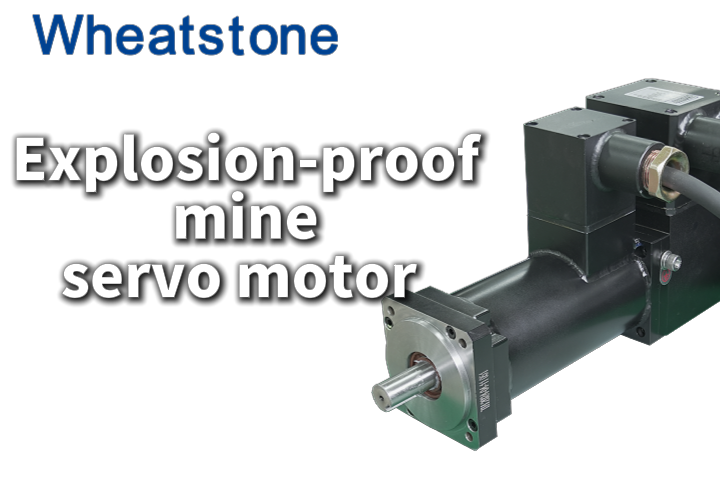

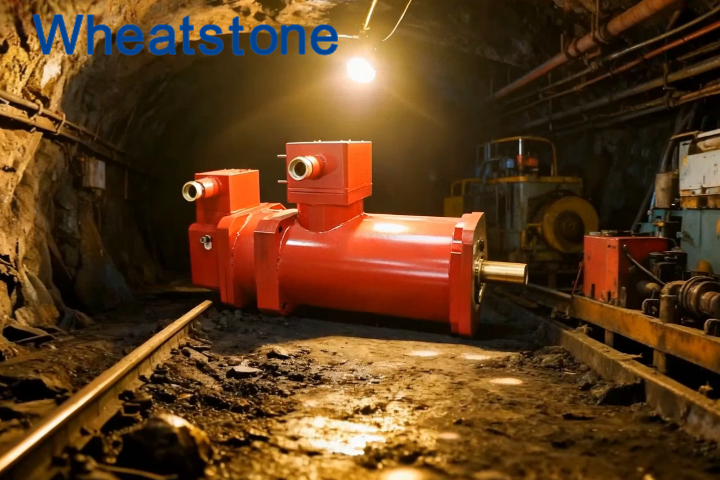

Powering Safety Underground: How Wheatstone Explosion-Proof Mining Servo Motors Handle Extreme Conditions

Deep beneath the surface in coal, metal, and non-metallic mines, extraction equipment, transport systems, ventilation units, and drainage pumps operate continuously. The environment here is far more demanding than any surface facility: methane or combustible dust may be present, humidity approaches saturation, space is confined, loads are highly variable, and maintenance access is extremely difficult.

In such conditions, the motors driving mining equipment must simultaneously meet explosion protection requirements, deliver high reliability, provide substantial torque, and offer precise control. Jiangsu Wheatstone has developed explosion-proof mining servo motors specifically for these underground applications, providing a complete power solution for mining operations.

I. The Four Key Challenges of Underground Mining Environments

1. Explosion Protection Is the First PriorityCoal mines contain methane gas, while metal and non-metallic mines may accumulate combustible dust. Any electrical spark, arc, or dangerous surface temperature from a motor can become an ignition source. Mining motors must comply with Class I explosion protection standards (coal mines) or Class II/III standards (non-coal mines), typically requiring flameproof (Ex d) construction.

2. Humidity and Corrosion Are ConstantUnderground humidity often exceeds 90%, and mine water contains corrosive elements such as sulfides and chlorides. Without adequate corrosion protection, motor housings, terminals, and fasteners can fail within months.

3. Confined Space, Difficult Installation and MaintenanceUndergroad tunnels have limited cross-sections, and equipment must be compact. Motors need high power density to fit in tight spaces while remaining accessible for maintenance.

4. High Load Impact and Frequent Start-Stop CyclesMining equipment such as shearers and conveyors experience severe load variations, frequent starts and stops, and reversing operations, demanding high overload capacity and dynamic response from drive motors.

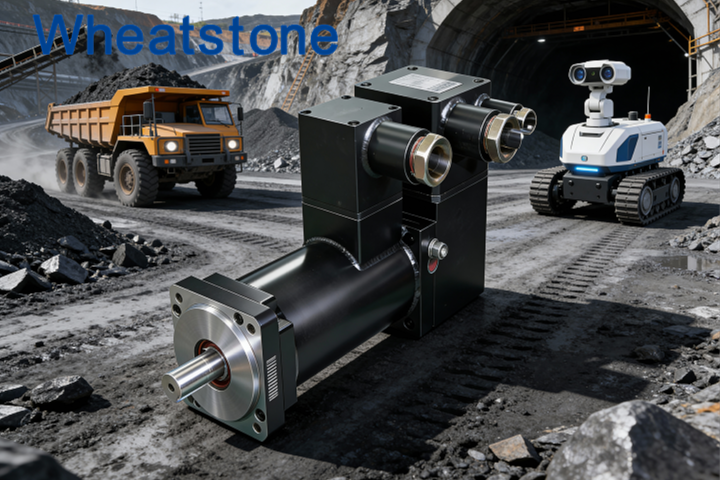

II. Technical Architecture of Wheatstone Explosion-Proof Mining Servo Motors

Wheatstone mining servo motors are systematically engineered to address these challenges through material selection, structural design, manufacturing processes, and control systems.

1. Dual Explosion Protection Systems

Wheatstone mining servo motors comply with GB 3836 series standards, featuring Ex d I Mb flameproof construction for coal mines, or Ex d IIB T4 Gb for non-coal gas environments and Ex tb IIIC T130℃ Db for dust environments. Flameproof housings are made of high-strength cast steel or cast iron, with wall thickness optimized through finite element analysis to withstand internal explosion pressure without damage. Precision-machined flame joints have surface roughness ≤6.3 μm Ra, with gaps strictly controlled to ensure internal flames are cooled and extinguished before reaching the external atmosphere.

For coal mine projects requiring China Mining Safety (MA) certification, Wheatstone provides certified models with traceable certificates meeting national safety regulations.

1. High Protection and Corrosion Resistance

Motors feature IP66 protection as standard, with double-sealed junction boxes and explosion-proof cable glands. Housings are constructed from high-strength cast aluminum or cast iron with heavy-duty anti-corrosion coatings, resistant to underground humidity, salt spray, and mild acids. For highly corrosive mine water environments, 316L stainless steel housings with A4-80 stainless steel fasteners are available.

1. Class H Insulation and Vacuum Pressure Impregnation

Winding insulation is critical for long-term underground operation. Wheatstone mining servo motors use Class H (180°C) insulation systems with Vacuum Pressure Impregnation (VPI) processing. Solvent-free resin fills all voids, eliminating partial discharge paths. Under full load, winding temperature rise is controlled within 80K, providing ample safety margin.

1. High Starting Torque and Overload Capacity

Mining equipment such as shearers and armored face conveyors require high starting torque to overcome static friction. Wheatstone mining servo motors deliver peak torque up to three times rated torque, ensuring smooth startup even under heavy loads. Low-inertia rotor design enables fast dynamic response for frequent reversing applications.

1. Wide Speed Range and High-Precision Control

Paired with explosion-proof VFDs, Wheatstone mining servo motors operate stably from 1 rpm to 3000 rpm, delivering rated torque even at low speeds to meet requirements such as slow-speed conveyor inspection and precise shearer positioning. 23-bit absolute encoders provide position feedback with error below 0.01°.

1. Built-In Condition Monitoring for Predictive Maintenance

Optional built-in temperature sensors (PT100) and vibration monitoring interfaces provide real-time feedback on winding temperature and bearing condition. Data transmitted via fieldbus to surface control centers enables early warning of potential failures, preventing unplanned downtime. In a main ventilation fan application at a coal mine in Shanxi, this feature alerted maintenance teams to bearing anomalies, allowing replacement during scheduled downtime and avoiding a ventilation failure that could have caused gas accumulation.

III. Typical Applications of Wheatstone Explosion-Proof Mining Servo Motors

1. Underground Conveyor DrivesArmored face conveyors and belt conveyors are the primary transport equipment in coal mines. Wheatstone mining servo motors paired with VFDs enable soft start, multi-motor power balancing, and slow-speed belt inspection. At a large coal mine in Inner Mongolia, a Wheatstone motor driving an armored face conveyor achieved starting current within 1.5 times rated current, eliminating chain impact damage and extending chain life by 30%.

2. Mining Machine Positioning and Feed ControlShearers and roadheaders require precise position control and speed regulation for cutting arms and traction drives. Wheatstone mining servo motors used for roadheader cutting arm lift and rotation achieved positioning accuracy of 0.05°, significantly improving tunnel profile quality and reducing overbreak and underbreak.

3. Underground Drainage Pump StationsMine drainage systems require pumps to start, stop, and adjust speed based on water levels. Wheatstone mining servo motors driving drainage pumps automatically adjust speed based on water level sensor signals, achieving energy savings while avoiding grid impact from frequent pump starts.

4. Underground Ventilation SystemsMain ventilation fans and auxiliary fans require airflow adjustment based on gas concentration. Wheatstone motors paired with VFDs enable stepless airflow regulation, ensuring safety while reducing energy consumption.

5. Underground Auxiliary Transport EquipmentMonorail hoists, locomotives, and other auxiliary transport equipment require smooth starting and braking. Wheatstone mining servo motors provide precise torque control, preventing load shifting and collisions.

IV. Summary of Wheatstone Explosion-Proof Mining Servo Motor Advantages

Complete Explosion Protection Certifications: MA (China Mining Safety), Ex d I Mb, Ex d IIB T4 Gb, Ex tb IIIC T130℃ Db, covering all mining application scenarios.

High Starting Torque: Peak torque up to three times rated torque, handling heavy-load startup and impact loads.

Wide Speed Range: Stable operation from 1-3000 rpm with rated torque at low speeds.

High Protection Rating: IP66 standard, 316L stainless steel options, suitable for underground humidity and corrosive environments.

Class H Insulation + VPI Processing: Long electrical life, superior temperature rise control.

Built-In Condition Monitoring: Real-time temperature and vibration feedback enabling predictive maintenance.

Compact Design: High power density for confined underground installation.

V. Conclusion

From longwall faces to main haulage roads, from ventilation chambers to drainage pump stations, Wheatstone explosion-proof mining servo motors are serving as reliable power sources in an increasing number of mining applications. Their flameproof construction protects underground safety, precise control enhances productivity, and intelligent monitoring reduces maintenance costs.

For mining equipment drive system selection or upgrade needs, contact the Wheatstone technical team. We are committed to helping advance mining equipment toward safer, more efficient, and more intelligent operations.

Technical Consultation: Jiangsu Wheatstone Mechatronic Technology Co., Ltd. - Motor Division
