Choosing the Right Motor for Explosion-Proof AGVs: Three Critical Pain Points That Could Turn Your Vehicle into a "Mobile Bomb" in Hazardous Areas

According to national production safety statistics, fire and explosion incidents account for 37% of all industrial accidents, with a fatality rate as high as 40% in sectors like petrochemicals and pharmaceuticals . The most chilling part? Many of these disasters were triggered by seemingly harmless automated equipment—a tiny spark from a standard motor, a hot spot from mechanical friction—in environments saturated with flammable gases or combustible dust.

Today, more chemical plants are introducing AGVs to replace manual labor, trying to remove people from hazardous zones. But when an AGV enters an explosive environment, it itself becomes a complex, mobile collection of ignition sources: electrical arcing from motor commutation, sparks from relays, static electricity from tires, impact sparks from metal parts . In a standard workshop, these are negligible. In a hazardous area, any one can be the trigger.

So, how do you choose the "heart" of an explosion-proof AGV—the drive motor? Here are the three non-negotiable pain points and how to solve them.

I. Pain Point #1: Matching Explosion Protection Grades—Getting It Wrong Is as Bad as Having None

AGVs come in countless configurations, but there is no unified standard for explosion-proof models -1. Different applications demand different protection levels: Zone 1 gas, Zone 21 dust, or a hybrid Zone 1/Zone 21 environment. Choose a motor with an insufficient rating, and you're planting a bomb. Choose one that's over-specified, and costs soar while the motor may not even fit the chassis.

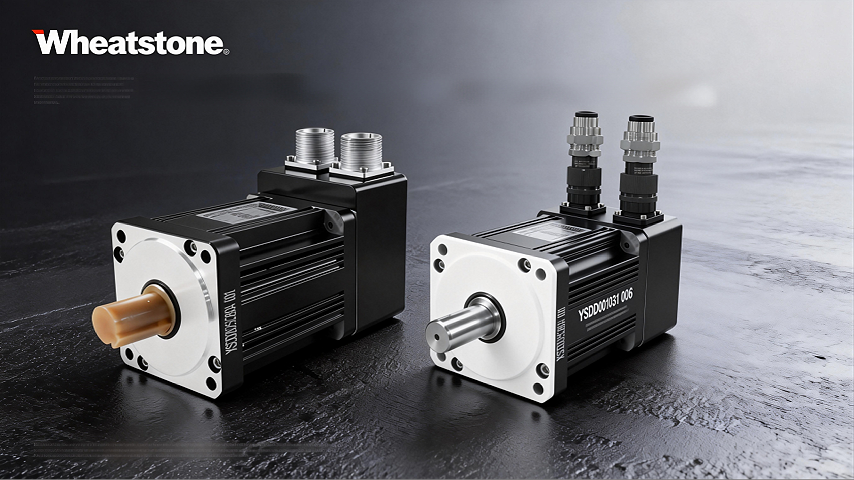

The Wheatstone Solution: Wheatstone offers a full range of explosion-proof servo motors from the 40EX to 220EX series, covering Ex d IIB T4 Gb for gas zones and Ex tD A21 IP6X T130℃ for dust zones . Need both? We provide dual-certified motors that comply with gas and dust standards simultaneously, ensuring a perfect match for your specific hazardous environment.

II. Pain Point #2: The Accuracy vs. Safety Dilemma—Can a Motor Be Both Precise and Intrinsically Safe?

Explosion-proof AGVs need to do more than just move safely; they need to perform. In fine chemical plants, AGVs require millimeter-level docking. In pharmaceutical filling lines, robotic arms demand 0.01mm positioning accuracy . Standard explosion-proof induction motors are safe but lack dynamic response and precision. Standard servo motors are precise but generate sparks from carbon brushes—a strict no-go in hazardous areas.

The Wheatstone Solution: Wheatstone explosion-proof servo motors feature brushless electronic commutation, eliminating the primary source of sparks -7. Combined with 23-bit absolute encoders, they achieve ±0.01mm repeatability . Our workhorse 400W, 1.3Nm model maintains speed accuracy within 0.1% , delivering both smooth AGV motion and precise robotic manipulation .

Real-World Case: In a chemical park's vision inspection system requiring 0.02mm accuracy, the client selected Wheatstone 400W explosion-proof servo motors. Three motors per machine, paired with Siemens PLC via 485 communication, were delivered and installed within 7 days. They've now run for over 18 months with zero failures .

III. Pain Point #3: The Space vs. Cooling Paradox—Why Integrated Units Are a Game-Changer

Inside an AGV, space is at a premium. Batteries, controllers, and sensors leave little room for the drive motor. Traditional "motor + drive" split solutions consume excessive space and require complex wiring within explosion-proof enclosures, adding failure points and cost.

Even worse, cooling becomes a nightmare. A motor running inside a sealed flameproof housing traps heat, leading to performance derating, overheating, and accelerated insulation aging.

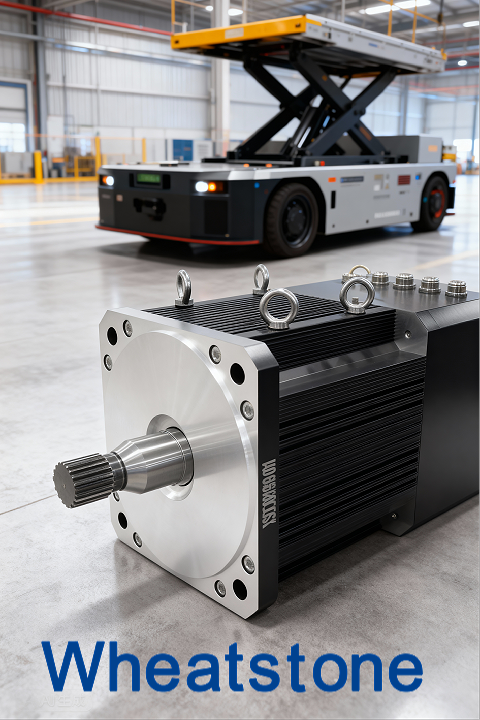

The Wheatstone Solution: The 60EX Series integrated explosion-proof servo motor combines motor, drive, and encoder into a single certified unit, reducing footprint by 40% . Our proprietary heat source separation design mounts power components directly against thermal pads, channeling heat to the housing fins via high-thermal-conductivity grease—solving the integrated motor overheat problem.

Hard Specs:

Power Range: 400W to 7.5kW

Protection: IP65/IP66 with corrosion-resistant coating

Operating Temp: -40℃ to +50℃

Compliance: GB 3836.1010, GB 3836.2010

IV. Wheatstone in Action: Data-Driven Case Studies

Case Study 1: Major Refinery in Shandong, China – Heavy-Duty AGV Retrofit

Challenge: 24/7 drum-handling AGVs in xylene vapor environment. Original imported motors failed every two years due to bearing corrosion.

Solution: Custom 110EX series explosion-proof servo motors, 5.5kW, 50Nm peak torque, 316L stainless steel housing, PFPE high-temp grease.

Result: 36 months continuous operation, zero failures, housing temperature stable at 82°C.

Case Study 2: Pharmaceutical Intermediates Plant, Germany – Sterile Filling AGV

Challenge: GMP-compliant transport of flammable solvents requiring dust-free, high-precision, explosion-proof motors.

Solution: Wheatstone 60ST-J02030-EX-ZD explosion-proof servo motor, 600W, 2Nm torque, absolute encoder, special surface treatment.

Result: 24 months of operation, positioning accuracy maintained at ±0.05mm, zero incidents .

V. Conclusion: The Right Motor Turns an AGV into "Armor," Not a "Bomb"

In the world of explosion-proof AGVs, the motor is more than a power source—it's the safety gatekeeper. From flameproof housing design to intrinsically safe circuits, from insulation materials to lubrication systems, every detail determines whether the vehicle survives in a hazardous environment.

For over two decades, Jiangsu Wheatstone has specialized in control motors for extreme conditions. We offer a complete line of explosion-proof motors spanning frame sizes from 40mm to 400mm, power from 50W to 200kW, and voltages from 24V to 3000V. Our products carry China CCC, EU ATEX, and international IECEx certifications, making us one of the few manufacturers qualified for Class I (Mining), Class II (Gas), and Class III (Dust) applications .

Wheatstone Complete Motor Product Line:

Explosion-Proof Servo Motors | Explosion-Proof Stepper Motors | Integrated Explosion-Proof Servo Motors | Explosion-Proof Brushless DC Motors | Mining Explosion-Proof Motors | Radiation-Resistant Motors | Vacuum Motors | High-Temperature Motors | Deep-Sea Motors | Frameless Torque Motors | Axial Flux Motors | Robot Joint Motors

Technical Consultation: Jiangsu Wheatstone Mechatronic Technology Co., Ltd. - Motor Division
