Explosion-Proof Servo Motors for Pharmaceutical Filling Lines: How Wheatstone Delivers Safety and Precision in Aseptic Environment

In aseptic filling workshops, liquid medicine flows through sterile pipelines, and filling nozzles inject precise doses into vials at hundreds of cycles per minute. Vials move smoothly along conveyors through capping and sealing, eventually packaged for shipment. Behind this seemingly calm operation, motors drive continuous motion with millisecond-level precision. However, in environments involving flammable solvents such as ethanol and acetone, a single spark or hot surface from a standard motor can ignite volatile vapors. The trade-off between explosion protection and filling accuracy has long troubled pharmaceutical equipment engineers. Jiangsu Wheatstone has developed a full series of explosion-proof servo motors for pharmaceutical filling applications, combining flameproof enclosures, high-precision closed-loop control, and clean-compatible design – delivering a power core that is safe, accurate, and easy to clean.

I. Four Critical Requirements for Pharmaceutical Filling Drive Motors

a. Explosion Protection – A NonNegotiable Safety Line

Pharmaceutical filling workshops often involve flammable solvents such as ethanol, acetone, and isopropanol. These substances are highly volatile, and their vapors can form explosive atmospheres when mixed with air. Electrical sparks generated during startstop cycles of standard motors, or high surface temperatures after prolonged operation, can become ignition sources. Therefore, drive motors must carry appropriate explosion protection certifications and eliminate all ignition risks during operation.

b. High-Precision Filling – Microliter-Level Accuracy

Filling accuracy directly affects drug dosage accuracy and product quality. For liquid pharmaceuticals such as injections and oral solutions, the filling volume error per vial must be controlled within a very narrow range. The motor driving the filling pump must achieve milliliterlevel or even microliterlevel precision.

c. Clean Design – The "Entry Ticket" for GMP Compliance

Pharmaceutical filling workshops are often classified as Grade B cleanrooms, with strict requirements for particle generation and ease of cleaning. Motor surfaces must be smooth with no dead corners; materials must be corrosionresistant and easy to clean, and lubricant outgassing or material aging must not produce contamination.

d. High Dynamic Response and Stability – The "Metronome" of HighSpeed Lines

Modern pharmaceutical filling lines are becoming faster, requiring motors with rapid startstop capability, precise positioning, and longterm stability to synchronize multiple processes such as filling, stoppering, and capping.

II. Core Technical Advantages of Wheatstone ExplosionProof Servo Motors

a. II 2G Ex db IIC T4 GbFlameproof Construction – Building a Safety Barrier for Filling Workshops

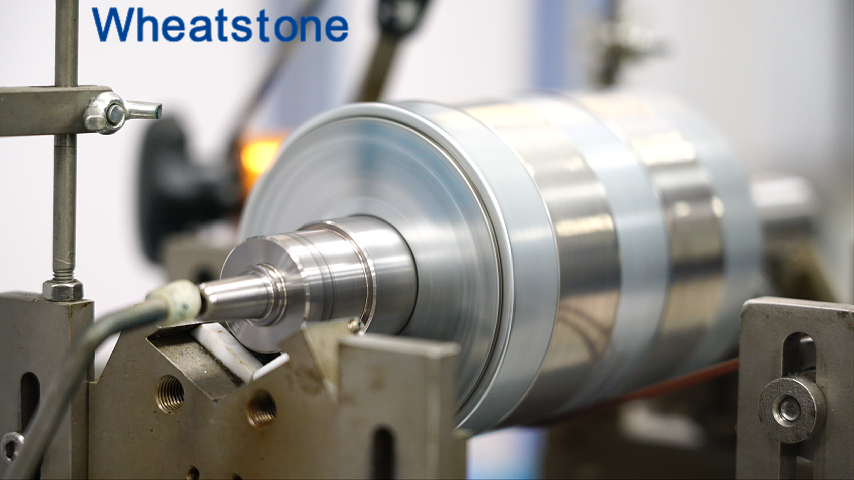

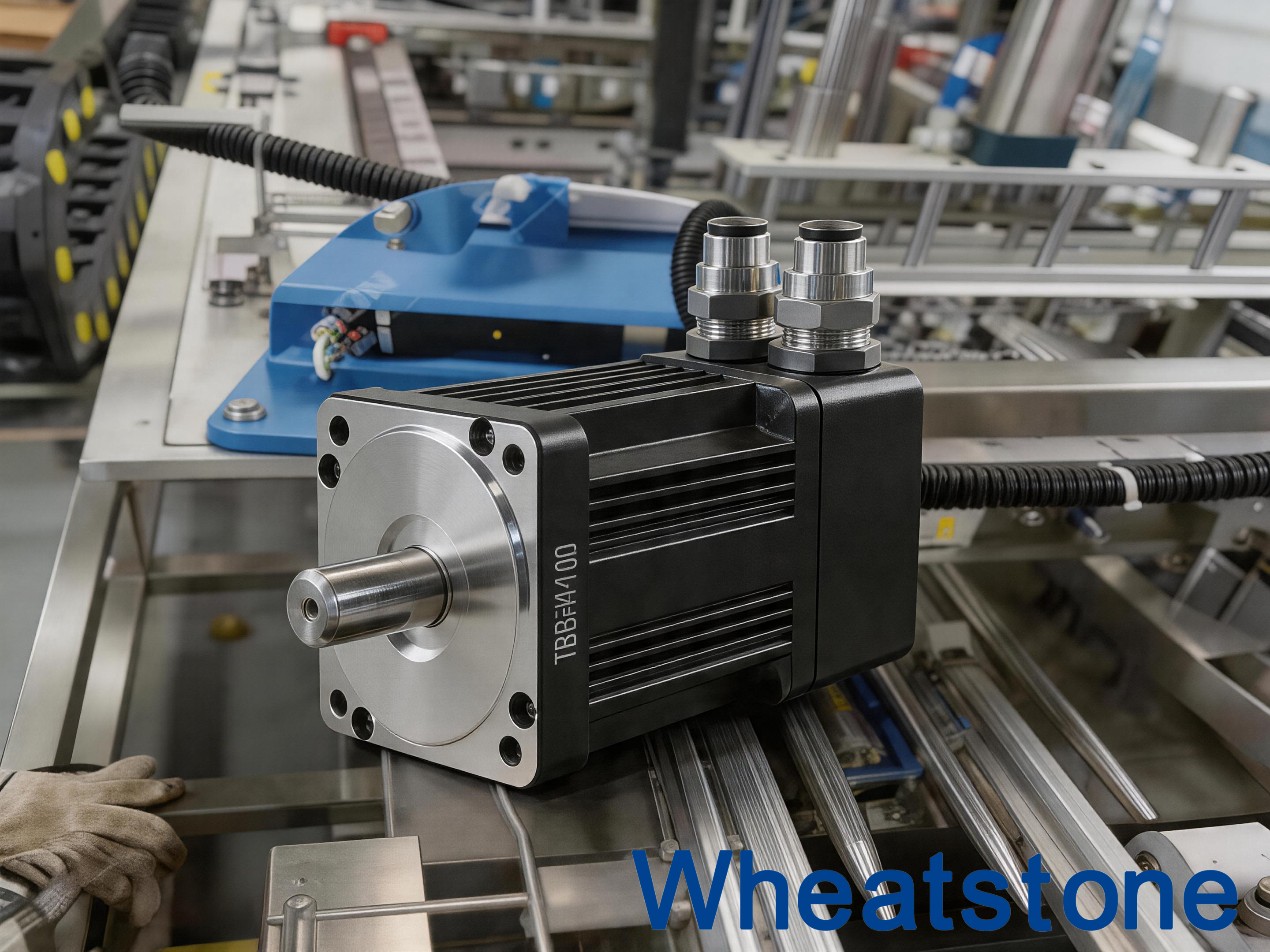

Wheatstone explosionproof servo motors feature II 2G Ex db IIC T4 Gb flameproof enclosures, fully containing components that could generate sparks or arcs within highstrength housings capable of withstanding internal explosion pressure. Precisionmachined flame paths (surface roughness ≤6.3 μm Ra) ensure that any internal explosion flame is cooled and extinguished before reaching the external atmosphere. The T4 temperature class limits maximum surface temperature to ≤135°C, well below the ignition points of most solvents. IP65/IP66 ingress protection effectively resists liquid splashes and washdown water.

b. HighPrecision ClosedLoop Control – Filling Error Within ±0.5%

Wheatstone explosionproof servo motors come standard with 23bit absolute encoders (over 8.38 million pulses per revolution). With closedloop vector control, speed accuracy reaches ±0.1%, and filling volume error can be controlled within ±0.5%. The motor supports multisegment speed control, enabling smooth transitions from fast filling to precise dosing. In oral liquid filling machine applications, Wheatstone explosionproof servo motors drive filling pumps, accurately controlling filling nozzle motion to ensure consistent fill volume per bottle, meeting stringent pharmaceutical quality requirements.

c. CleanCompatible Design – GMP Compliant for Grade B Cleanrooms

Wheatstone explosionproof servo motors feature 316L stainless steel housings with electropolished, smooth, deadcornerfree surfaces that resist dust accumulation. PFPE perfluoropolyether grease does not volatilize or carbonize, avoiding cleanroom contamination. Protection ratings up to IP67 are available for VHP fumigation resistance. Low noise and low vibration meet GMP cleanroom standards. In a Grade B sterile filling line rotary table drive application in South China, a Wheatstone 60EX explosionproof servo motor (400W, 1.3Nm, IP67, 316L stainless steel) operated continuously for two years without failure, with no dust accumulation on the motor surface, passing GMP inspection.

d. High Dynamic Response and Overload Capacity – Meeting HighSpeed Filling Cycles

Wheatstone explosionproof servo motors deliver peak torque up to three times rated torque, providing ample starting force for fast nozzle response without jitter. Motor efficiency exceeds 90% with low heat generation, supporting continuous highspeed operation. On highspeed filling lines, the motor drives filling nozzle lift and conveyor synchronization, preventing bottle jams or liquid spills.

e. Smart Integration – Fast Recipe Changeover for Multiple Products

Wheatstone explosionproof servo motors support Profinet, EtherCAT, Modbus, and other mainstream fieldbus protocols, enabling seamless integration with PLCs and host systems for realtime adjustment of filling parameters (speed, time, volume). Multiple product filling parameter recipes can be stored for fast changeover between different drug production requirements.

III. RealWorld Application Cases

Case 1: Major Pharmaceutical Enterprise in East China – Oral Liquid Filling Machine Upgrade

The enterprise’s oral liquid filling line originally used standard stepper motors for filling pump drives, with filling volume variation of ±1.2%. Due to ethanol vapor in the workshop, safety authorities mandated rectification. Wheatstone 60EX explosionproof servo motors (400W, 1.3Nm, II 2G Ex db IIC T4 Gb, IP66) replaced the original drives. Filling volume variation dropped from ±1.2% to ±0.4%, line speed increased from 60 to 85 bottles per minute (approximately 30% cycle time reduction). The motors have operated for 24 months without failure, passing safety production standardisation acceptance.

Case 2: Sterile Filling Line in South China – Rotary Table Drive for Grade B Cleanroom

The Grade B cleanroom filling line required resistance to VHP fumigation, demanding high cleanliness and corrosion resistance. A Wheatstone 60EX explosionproof servo motor (400W, 1.3Nm, IP67, 316L stainless steel) was selected. The motor’s smooth, dustfree surface withstands VHP fumigation. It has operated for two years without failure, passing GMP inspection.

Case 3: Biopharmaceutical Enterprise in North China – Vial Filling and Stoppering Integrated Machine

The line produces lyophilized powder for injection, operating in a Grade C cleanroom with ethanol solvents. Filling nozzle lift and stoppering action require highprecision synchronization. A Wheatstone 90EX explosionproof servo motor (1.0kW, 3.3Nm, II 2G Ex db IIC T4 Gb) was selected for the filling nozzle lift axis. With a 23bit absolute encoder, positioning accuracy reached ±0.02 mm, and stoppering pass rate improved from 96% to 99.5%. The motor operates smoothly under frequent startstop cycles without overheating or alarms.

IV. Wheatstone ExplosionProof Servo Motor Selection Guide for Pharmaceutical Filling Equipment

V. Conclusion

On pharmaceutical filling lines, every precise dose depends on reliable drive motor support. Jiangsu Wheatstone explosionproof servo motors deliver safety with II 2G Ex db IIC T4 Gb flameproof construction, quality with ±0.5% filling accuracy, GMP compliance with 316L stainless steel clean design, and durability with 3× overload capacity – providing reliable explosionproof power solutions for the entire pharmaceutical filling process, from oral liquids to vials to sterile filling.

For explosionproof servo motor selection needs for pharmaceutical filling equipment or explosionproof automation lines, contact the Wheatstone technical team for fullprocess support – from explosion protection assessment and motor selection to onsite commissioning.
