Marine Explosion-Proof Motors with Quick-Connect Connectors: How Wheatstone Protects Offshore Equipment Against Salt Spray, Explosion Hazards, and Complicated Wiring

On the deck of an offshore platform in Bohai Bay, equipment supervisor Zhou was directing the annual motor maintenance. Looking at the rows of rust-stained junction boxes and aged, cracked cable seals, he sighed: “Half the motor failures at sea come from wiring.”

On ocean-going vessels, offshore drilling platforms, and LNG carriers, motors are the core power for ventilation, hydraulic systems, pumps, and valves. But the marine environment—persistent high-concentration salt spray, high humidity, mould growth, and high-pressure washdown on deck—demands exceptional corrosion resistance and ingress protection from motors. At the same time, vessels and platforms operate in potentially explosive gas atmospheres, making explosion protection a mandatory entry ticket. For maintenance crews, the real headache is the short repair window at sea. Traditional motor wiring is complex and time-consuming; every extra minute spent on disconnection and reconnection is a minute the equipment remains vulnerable.

Jiangsu Wheatstone has developed an explosion-proof motor series with quick-connect aviation connectors specifically for ships and offshore engineering, integrating salt-spray corrosion resistance, flameproof safety, and fast plug-and-play connection into a single reliable power solution for marine equipment.

I. Corrosion Protection: C5-M “Armor” Against Seawater Attack

The first challenge for marine motors is salt-spray corrosion. Vessels and platforms operate in high-salinity, high-humidity marine atmospheres. On ordinary carbon steel, the oxide film can be destroyed by chloride ions in a matter of days, leading to pitting corrosion. Corrosion not only damages appearance; it increases terminal contact resistance, compromises housing seals, and degrades explosion protection performance.

Wheatstone marine explosion-proof motors employ multiple corrosion defence layers:

Housing Material Upgrade: Options include 316L stainless steel or high-strength cast aluminium/cast iron with heavy-duty anti-corrosion coatings. 316L stainless steel has higher molybdenum content, offering far better pitting resistance than ordinary steel and can withstand direct seawater splash.

C5-M Grade Heavy-Duty Coating: Under ISO 12944, C5-M is the highest corrosion protection class designated for high-salinity marine environments. Coating systems meet specific total dry film thickness requirements and pass salt spray tests far exceeding industry norms. Wheatstone applies heavy-duty anti-corrosion coatings with epoxy zinc-rich primer and high-performance topcoat to effectively block chloride ion penetration.

All-Stainless External Components: All fasteners, nameplates, and cable glands are stainless steel, eliminating galvanic corrosion and seizure.

High Ingress Protection: IP66/IP67 protection, dust-tight, oil-resistant, and resistant to high-pressure water washdown, withstanding deck washing and typhoon-driven sea spray.

On an offshore wind project in the East China Sea, Wheatstone motors installed in external pitch systems operated continuously for three years without corrosion failure. During routine inspections, the coating remained intact, fasteners showed no rust, and junction boxes were dry with no condensation.

II. Explosion Protection: From Flameproof Enclosure to Intrinsic Safety

Vessels and offshore platforms contain flammable gases such as methane, propane, and xylene. Motors must carry appropriate explosion protection certifications. Wheatstone marine explosion-proof motors hold Ex d IIB T4 Gb flameproof certification, suitable for Gas Zones 1 and 2. Housings are high-strength cast steel or cast aluminium, capable of withstanding internal explosion pressure without damage. Precision-machined flame paths (surface roughness strictly controlled to standards) ensure that any internal explosion flame is cooled and extinguished before reaching the external atmosphere.

For dust explosion risks (grain carriers, bulk terminals), Wheatstone offers Ex tb IIIC T130℃ Db dust ignition protection. For LNG carriers and other high-risk gas environments containing hydrogen, the Ex db IIC T4 Gb rating is available.

In terms of international certifications, Wheatstone motors hold China Classification Society (CCS) type approval, as well as IECEx and ATEX certifications, meeting the entry requirements of different flag states and ports worldwide.

III. Quick-Connect Aviation Connectors: From Half-Day Wiring to Minutes of Installation

The short maintenance window and harsh working conditions at sea make traditional wiring a major bottleneck for repair efficiency. Standard explosion-proof motors use junction boxes with cable glands, requiring on-site stripping, terminal crimping, gland threading, tightening, and sealing. A skilled electrician typically takes 2-4 hours per motor. Multiple motors mean even longer downtime. Worse, the quality of on-site stripping and crimping is hard to control; a misaligned gland or poorly crimped terminal can compromise explosion safety.

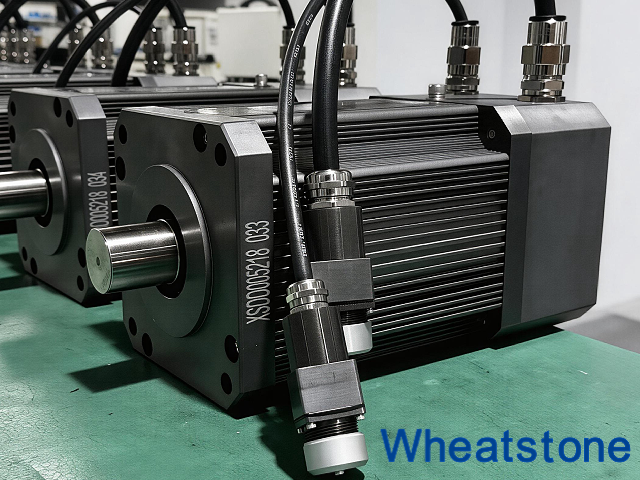

Wheatstone explosion-proof motors with aviation connectors offer a different approach:

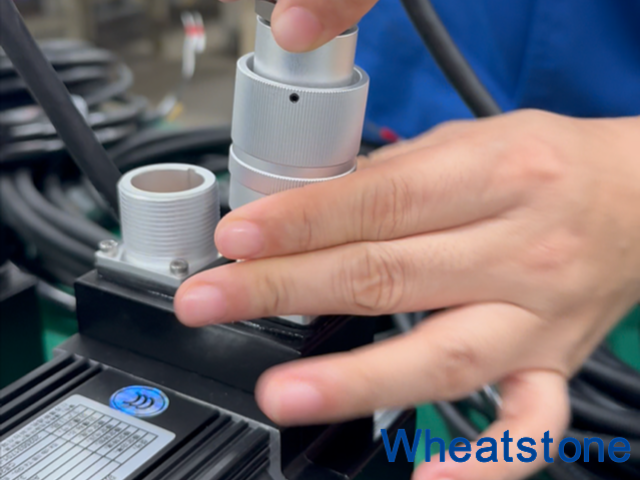

Integrated Aviation Socket: The motor body integrates an explosion-proof aviation socket with premoulded cables. On-site, simply insert the cable plug into the socket, push, and twist—the locking nut completes both electrical connection and sealing in one action.

MultiCore Integration: Power, encoder signals, brake control, and temperature sensors are all integrated into a single multicore cable, eliminating the need to handle three or more separate cables and dramatically reducing the number of glands.

ErrorProof Design: Fivekey positioning or bayonet quickconnect structures prevent incorrect insertion, eliminating wiring errors.

IP66/IP67 Sealing: When the plug mates with the socket, precision-machined metal faces and seals create a reliable seal automatically—no additional sealant required.

In a mud pump valve retrofit on a South China Sea drilling platform, 32 manual valves needed to be replaced with electric control. The original plan used separate servo drives, but control cabinet space was insufficient. Wheatstone engineers recommended the 60EX series explosion-proof integrated servo motor with quick-connect cables. On-site, each motor was installed by simply plugging in the premoulded cable and tightening the locking nut. After the retrofit, valve switching time consistency remained within ±0.1 seconds, and the system operated for 18 months without failure. The equipment supervisor noted: “Before, replacing a motor took half a day—wiring, sealing, and testing. Now it’s plug, twist, and done in minutes. We no longer chase the tide window for repairs.”

IV. Wheatstone Marine ExplosionProof QuickConnect Motor Series Parameters

V. Wheatstone Marine ExplosionProof Motor Full Certification Portfolio

Domestic Certifications: China Classification Society (CCS) type approval, China Compulsory Certification (CCC), Class I coal mining explosion protection, Class II gas explosion protection, Class III dust explosion protection

International Certifications: IECEx, ATEX, CE

Quality Systems: ISO9001, ISO14001

Military System: GJB9001C-2017 military quality management system certification, qualified to supply highreliability products for naval and defence applications

VI. Conclusion

From oil production platforms in Bohai Bay to LNG carriers on international routes, from drillships in the South China Sea to bulk terminals along the coast, Wheatstone marine explosionproof quickconnect motors deliver a “threeinone” technical solution combining saltspray corrosion resistance, flameproof safety, and fast plugandplay connectivity. They free marine motors from the fear of seawater corrosion, the danger of explosive gases, and the frustration of wiring delays during critical repair windows.

For custom marine explosionproof motor requirements or offshore engineering needs, contact the Wheatstone technical team for onestop customisation—from corrosion protection selection and explosion certification to quickconnect interface design.
