Mobile Motors That Can Run in The Danger Zone Why Explosion-Proof Brushless DC Motors Are The Heart of Modern Mobile Equipment

At a chemical facility in the Port of Rotterdam, an orange explosion-proof AGV navigates silently between storage tanks. Its mission: to transport hazardous samples from the unloading dock to the on-site laboratory. As it passes a section where technicians are working, its sensors detect a faint vapor reading. The vehicle halts smoothly, its warning lights flashing, awaiting further instructions—all without a single abnormal sound from its drive motors.

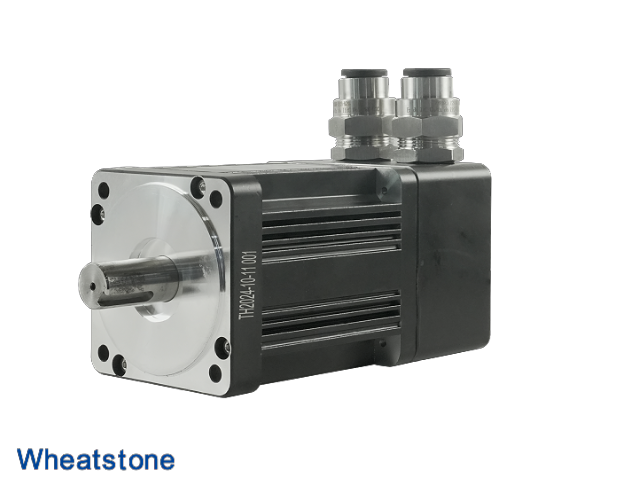

The heart of this AGV is a custom 60 series explosion-proof brushless DC motor from Wheatstone. In a Zone 2 hazardous environment, where flammable gases may occasionally be present, this motor must operate without internal sparks, maintain a cool surface temperature, and provide precise start-stop control for navigating narrow passages. It's a demanding set of requirements that pushes motor technology to its limits.

Mobile equipment isn't like stationary machinery bolted to a factory floor. It travels, climbs, vibrates, and experiences wide temperature swings. When deployed in oil refineries, chemical plants, mines, or offshore platforms, standard explosion-proof motors often fail—they're too bulky, inefficient, or simply cannot provide the variable speed control that mobile applications demand. This is where explosion-proof brushless DC (BLDC) motors truly shine.

I. Technical Decoding: Why Mobile Equipment Can't Do Without Them

An explosion-proof BLDC motor isn't just a standard motor wrapped in a thick housing. Its core advantages come from three levels of integrated design:

1. The "Spark-Free" Genetic Advantage

Traditional DC motors use brushes and commutators, which generate sparks from mechanical friction—a dangerous ignition source in hazardous environments. Wheatstone's explosion-proof BLDC motors use electronic commutation. The rotor contains permanent magnets, while the stator is energized by a controller. Mechanical contact is eliminated entirely, removing the source of sparks at its root. This is the first step toward intrinsic safety.

1. The Art of Balancing Flameproof Protection and Cooling

Mobile equipment has limited space, making the simultaneous requirements of flameproof protection and effective heat dissipation a major engineering challenge. Wheatstone's solution is "heat source separation combined with high-efficiency conduction": the controller and motor are integrated into a single unit, but internally, thermal grease and specially designed cooling fins channel heat to dedicated areas on the housing, preventing heat concentration in the windings. The housing itself is made from high-strength aluminum alloy, precision-machined to keep flame paths within 0.2mm. This structure can withstand internal explosion pressure while rapidly dissipating heat to the environment.

1. Wide Voltage Range and High Dynamic Response

Mobile equipment experiences fluctuating power supply—battery charge levels change, loads vary—all affecting motor performance. Wheatstone explosion-proof BLDC motors support a wide voltage range from 24V to 3000V. Paired with built-in high-precision Hall sensors or resolvers, they maintain speed accuracy within ±1% even under 20% load variations. Whether an AGV is climbing a ramp or a robotic arm is performing a delicate pick-and-place operation, the motor responds precisely and reliably.

II. Diverse Applications: From Underground to Offshore, Across the Globe

Wheatstone's family of explosion-proof BLDC motors now covers frame sizes from 40mm to 180mm, power from 50W to 15kW, and voltage from 24V to 1140V. Different series are playing critical roles in various mobile applications worldwide.

1. 60 Series: The "Agile Joints" of Explosion-Proof AGVs

At a chemical raw material warehouse in Jiangsu, China, 20 explosion-proof AGVs handle hundreds of tons of material daily. They are powered by Wheatstone 60BL series motors. With a 60mm frame and 400W rated power, coupled with a planetary gearbox, each motor can drive a 500kg AGV smoothly at 1.5m/s.

The facility's maintenance manager noted: "Previously, using induction motors with separate explosion-proof cabinets, the drive system alone occupied nearly half the vehicle's chassis space. Switching to Wheatstone integrated units reduced drive system volume by 40% and extended battery life by 30 minutes." Crucially, the motors feature built-in thermal and overload protection. If stalling or overheating occurs, the controller cuts power within 0.1 seconds, ensuring safety.

1. 80 Series: The "Silent Guardians" of Inspection Robots

At an oil terminal in Houston, Texas, a tracked inspection robot patrols the perimeter of a tank farm. Its tracks are independently driven by two Wheatstone 80BL series explosion-proof BLDC motors, enabling zero-radius turns and 30-degree incline climbing. Each motor is rated at 1.2kW with a peak torque of 12Nm, allowing the fully loaded robot to easily navigate pipe racks and uneven terrain.

These motors feature fully sealed construction and IP67 protection. The marine environment is humid and subject to salt spray. Wheatstone employs double mechanical seals on the shaft extensions, combined with fluoroelastomer O-rings, ensuring that salt-laden moisture cannot penetrate the internal components.

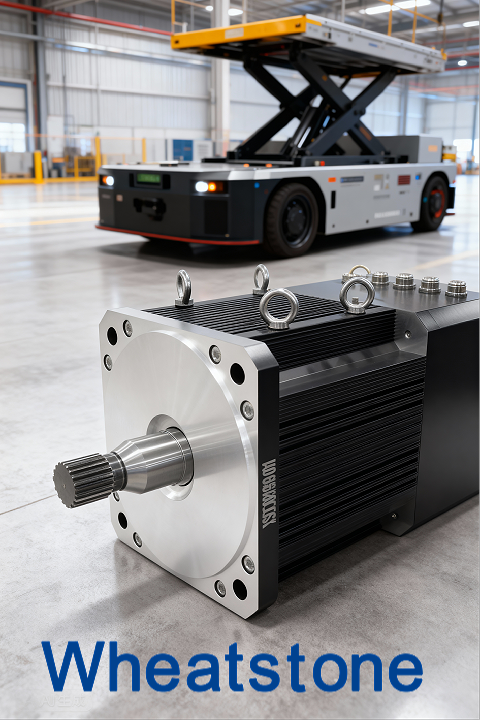

1. 110 Series: The "Powerhouse" for Heavy-Duty Mobile Equipment

In an underground coal mine in Germany, a flameproof loading vehicle clears debris from a longwall face. Its lifting mechanism is driven by a Wheatstone 110BL series explosion-proof BLDC motor, rated at 7.5kW with a peak torque exceeding 50Nm, capable of effortlessly lifting 3-ton loads.

Coal mines are saturated with methane and coal dust, demanding the highest Class I explosion protection. The 110BL series features a reinforced cast steel housing with specially heat-treated flame paths. The internal cavities are filled with flame-retardant, explosion-proof potting compound, ensuring absolute safety under the most extreme conditions.

III. Case Studies: Proven Reliability in the Field

Case Study 1: Europe's Largest Petrochemical Complex (Antwerp, Belgium)

A major petrochemical complex in Antwerp operates over 100 explosion-proof AGVs for material transport. The original AGVs used brushed DC motors, which required commutator maintenance every 3 months. The plant sought a more reliable, maintenance-free solution. After extensive testing, they selected AGVs retrofitted with Wheatstone 60BL series motors. After 24 months of continuous operation, motor failure rate was 0%. Plant engineers reported a 25% reduction in overall maintenance costs and noted the smoother acceleration and deceleration reduced wear on transported materials.

Case Study 2: The Port of Los Angeles, California (USA)

At the Port of LA, new emissions regulations required converting diesel-powered yard trucks to electric, while maintaining safety standards for operating near hazardous cargo. A local equipment integrator developed a heavy-duty terminal tractor powered by a Wheatstone 130BL series explosion-proof BLDC motor. The 12kW motor provides ample torque for moving 20-ton shipping containers within the port's container yard. After 18 months of trials in rain, salt air, and varying loads, the motor has performed flawlessly, with zero safety incidents related to the electrical drive system.

Case Study 3: BHP's South Flank Mine (Australia)

In the remote Pilbara region of Western Australia, BHP operates one of the world's largest iron ore mines. A pilot project is testing autonomous water sprayers for dust suppression. These mobile units are powered by Wheatstone 80BL series motors, chosen for their ruggedness and ability to operate in temperatures exceeding 50°C. The motors drive both the wheels and the high-pressure water pumps. After 12 months, data shows the motors have maintained 95% efficiency with zero unplanned downtime, even under full sun and heavy dust loads.

IV. Selection Guide: Matching the Right Motor to Your Mobile Application

V. Final Thoughts

From -40°C freezer warehouses to 60°C oilfields, from mines hundreds of meters underground to salt-sprayed offshore platforms, Wheatstone explosion-proof brushless DC motors are proving their worth in mobile applications worldwide. Twenty years of specialty motor experience, over a thousand custom solutions—Wheatstone understands that true reliability isn't measured in lab data sheets, but in real-world performance under demanding conditions.

If you're seeking a power solution for mobile equipment operating in hazardous environments—whether AGVs, inspection robots, or specialized vehicles—Wheatstone's technical team can provide one-to-one selection support and custom engineering. From requirements analysis to prototype testing, from explosion-proof certification to volume delivery, let our expertise solve your most critical power challenges.
