Frameless Vacuum Motors for Robotics: Wheatstone Delives Compact, Vacuum-Compatible Power for Extreme-Environment Motion

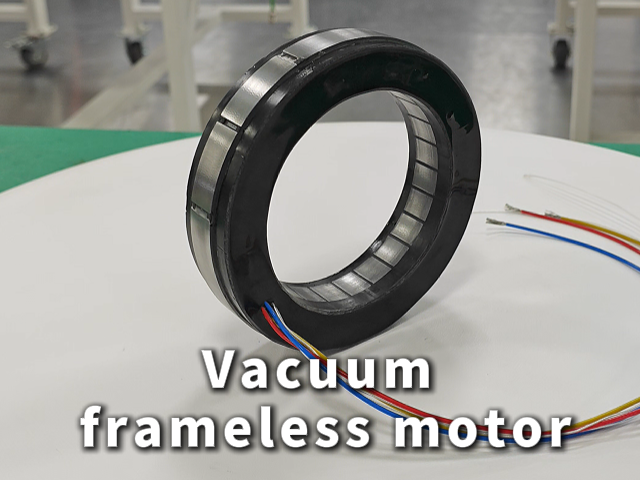

In semiconductor wafer transfer robots, space station manipulators, nuclear inspection robots, and vacuum coating systems, a new drive solution is gaining popularity among engineers: the frameless vacuum motor. Comprising only a stator and rotor—no housing, no bearings, no shaft—it can be embedded directly into a robot joint, becoming the joint’s “native muscle.”

Jiangsu Wheatstone has developed a customisable frameless vacuum motor series specifically for robotics applications. With ultra-high vacuum compatibility, frameless direct embedding, and low-voltage high-torque as its three core technologies, it provides “invisible power” for precise motion in extreme environments.

I. Frameless Motors: Returning Robot Joints to Their Essence

Traditional robot joints typically stack motors, reducers, encoders, and brakes into modular assemblies—bulky, with long transmission chains and accuracy limited by reducer backlash. The frameless motor design philosophy is fundamentally different:

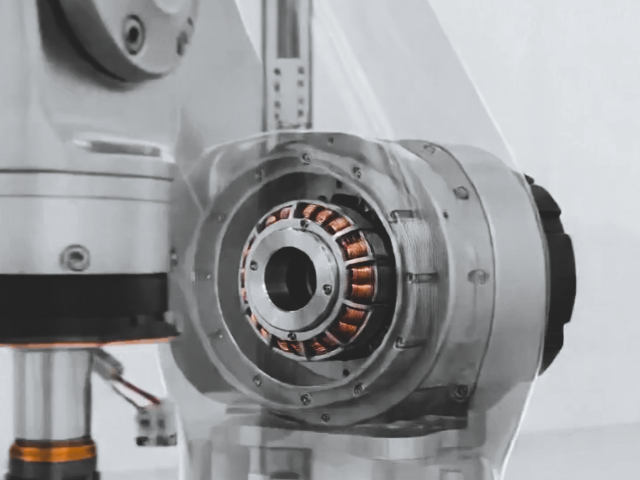

No housing, no bearings, no shaft: Only stator and rotor. The stator is embedded in the joint housing, and the rotor is mounted directly on the joint shaft, supported by the equipment’s own bearings. This eliminates intermediate transmission components, achieving true direct drive.

Zero backlash, high stiffness: Without reducers, gear mesh clearance (backlash) is eliminated, and system stiffness is significantly increased. Paired with high-resolution encoders, arc-second repeatability is achievable.

Compact integration: Frameless motors reduce axial length to onethird or onehalf that of conventional motors, shrinking joint volume by over 30% and providing critical support for the miniaturisation of humanoid and collaborative robots.

II. Wheatstone Frameless Vacuum Motors: Three Core Technology Systems

Addressing the demands of vacuum, cleanliness, and extreme temperature swings in robotic applications, Wheatstone has systematically designed its motors across materials, structure, and process:

1. 10⁻⁷ Pa Ultra-High Vacuum Compatibility – A “Clean Gene” at the Material Level

In conventional motors, organic materials—magnet wire varnish, grease, sealants, plastics—continuously release water vapour and hydrocarbons at pressures below 10⁻⁴ Pa, a phenomenon called outgassing. Outgassing not only contaminates vacuum chambers and sensitive optics but also causes lubricant evaporation, bearing dry running, and insulation degradation.

Wheatstone frameless vacuum motors control outgassing at the material source:

Insulation system: Polyimidefilminsulated wire or ceramicinsulated windings, with Total Mass Loss (TML) controlled below 0.1% and Collected Volatile Condensable Material (CVCM) below 0.01%. Windings are processed with Vacuum Pressure Impregnation (VPI), where solventfree resin fills all voids, further reducing outgassing.

Bearings and lubrication: For ultrahigh vacuum applications, Wheatstone offers full ceramic bearings (silicon nitride balls) with solid lubricant coatings (MoS₂ or diamondlike carbon), completely eliminating grease volatilisation and enabling longterm maintenancefree operation at 10⁻⁷ Pa.

Hermetic terminals: Glasssintered feedthroughs fuse metal pins with specialty glass at high temperature, forming an atomiclevel bond with leak rates below 10⁻⁹ Pa·m³/s.

Component pretreatment: Metal parts (stator core, rotor yoke) undergo ultrasonic cleaning and vacuum hightemperature baking (150℃, 48 hours) before assembly to remove surfaceadsorbed gases, further reducing initial outgassing rates.

1. Frameless Direct Embedding – TailorMade for Robot Joints

Wheatstone frameless vacuum motors are supplied as separate stator and rotor kits, allowing engineers to design the motor housing and bearing system according to the joint’s mechanical structure:

Large hollow bore: A throughhole in the rotor centre (typical bore diameters 15-80 mm) allows air lines, fluid lines, cables, or laser beams to pass through the joint centre, enabling “internal cable routing” for robots.

High torque density: Using a high number of pole pairs and highgrade NdFeB permanent magnets, torque density reaches 15-25 Nm/kg – two to four times that of equivalently sized conventional motors.

Low cogging torque: Optimised magnetic circuit design and fractionalslot concentrated windings keep cogging torque below 0.5% of rated torque, ensuring no “crawling” at ultralow speeds.

Wide speed range: Stable operation from 1 rpm to 3000 rpm, covering everything from precision positioning to rapid motion.

1. Thermal Management and WideTemperature Adaptation

In vacuum, convection cooling is absent. Wheatstone reduces heat generation at the source through optimised electromagnetic design (lower iron and copper losses). A lowthermalresistance path between the stator and the mounting interface, filled with highthermalconductivity potting compound, efficiently conducts heat to the chamber wall or external cooling system. The motor operates stably from -40℃ to +150℃ (extendable to 200℃).

III. Typical Robotic Applications

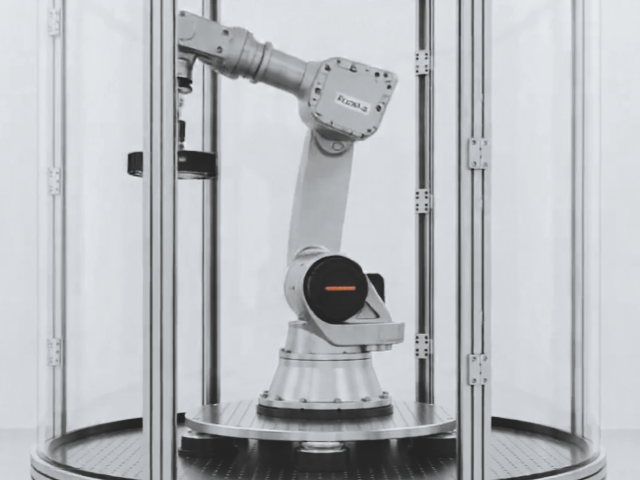

1. Semiconductor Vacuum Transfer Robots (EFEM/Vacuum Robots)

In semiconductor wafer fabrication, EFEM and vacuum robots operate at 10⁻⁵ Pa to 10⁻⁷ Pa to transfer wafers. Motors must withstand ultrahigh vacuum and generate extremely low particle counts to avoid wafer contamination.

Wheatstone solution: Custom frameless vacuum motors embedded directly into robot joints, replacing traditional “motor + bellows + external drive” schemes. With full ceramic bearings and solid lubrication, they operate continuously for over 30,000 hours at 10⁻⁶ Pa, generating no particles and achieving repeatability of ±0.01 mm. According to QYResearch, the global semiconductor vacuum transfer robot market is projected to grow from US$ 436 million in 2024 to US$ 690 million by 2031, at a CAGR of 7.2%. In this rapidly expanding market, Wheatstone frameless vacuum motors provide a reliable drive core for domestic vacuum robots.

1. Space Station External Manipulators

Space station manipulators must operate at 10⁻⁷ Pa, under extreme temperature swings (-50℃ to +130℃), and in highradiation environments. Motors must withstand severe thermal cycles without outgassing that could contaminate external optical sensors.

Wheatstone solution: Widetemperature frameless vacuum motors with Samarium Cobalt permanent magnets (rated to 350℃, flux decay <5% at 200℃) and full ceramic bearings have passed thermal shock tests from -196℃ to +200℃. For lunar sampling manipulators reported by the Fourth Academy of CASC, motor assemblies must operate under direct solar exposure exceeding 130℃ while withstanding radiation levels far higher than on Earth. Wheatstone’s frameless vacuum motor technology aligns closely with such spacegrade requirements.

1. Nuclear Inspection Robots

Nuclear reactor inspection robots operate in highradiation, vacuum/inert gas environments. Motors must be radiationhardened (cumulative dose up to 10⁶ Gy) and must not generate secondary contamination from lubricant volatilisation.

Wheatstone solution: Radiationhardened frameless vacuum motors use inorganic insulation systems and solid lubrication, with cumulative radiation tolerance up to 1.0×10⁷ Gy. In nuclear decommissioning equipment, they have operated continuously for over 5,000 hours without failure.

1. Vacuum Coating Robots

In OLED evaporation and optical coating systems, robots operate at 10⁻⁴ Pa to 10⁻⁵ Pa to transfer substrates. Motors must be lowoutgassing, lowvibration, and highprecision.

Wheatstone solution: Frameless vacuum motors with ceramic bearings operate continuously for over 20,000 hours at 10⁻⁵ Pa, with speed ripple below 0.1% and positioning accuracy of ±0.005 mm.

IV. Wheatstone Frameless Vacuum Motor (Robotic Joint Series) Customisation Range

V. Conclusion

From wafer handling in semiconductor fabs to external collaboration on space stations and inspection deep inside nuclear facilities, Wheatstone frameless vacuum motors are becoming the critical “joint” for extremeenvironment robotic drives. They make robot joints lighter, smaller, more flexible, and enable robots to “breathe freely, rotate precisely, and live long” in vacuum.

For custom frameless vacuum motor requirements for robotics applications, contact the Wheatstone technical team. From electromagnetic design and material selection to vacuum testing and reliability validation, we offer endtoend customisation.
