Selecting Motors for Offshore Rigs: Tougher Than Finding a Spouse? These Explosion-Proof Types Are the Real Deal

Picture this: You're standing on a steel island barely larger than a football field. Below you, the North Sea rages. Above, salt-laden mist hangs in the air, carrying the faint but unmistakable scent of methane. Towering above, a drill rig operates 24/7, sending pipe kilometers into the seabed. This isn't a movie set—it's daily life on an offshore drilling platform.

In this environment, selecting a motor is harder than finding the perfect partner. It must match power requirements, withstand corrosion, offer unwavering reliability, and above all, never—ever—ignite the surrounding atmosphere. Get it wrong, and the consequences aren't divorce; they're disaster.

So, what motor types can survive this ultimate survival challenge?

I. The "Three Gates" of Offshore Platforms

According to public tender requirements from CNOOC, the baseline specifications for offshore platform motors include:

Protection Rating: IP56 minimum, capable of withstanding wave wash and salt spray

Explosion Protection: Ex d IIB T4 minimum, suitable for Zones 1 and 2

Insulation Class: Class F minimum, with temperature rise controlled to Class B levels

Certification: Must have Type Approval from a recognized classification society (CCS, ABS, DNV, etc.)

These are just the "passing grades." Truly exceptional motors excel across all three dimensions.

II. Three Explosion-Proof Motor Types, Each with Its Strengths

1. Explosion-Proof Servo Motors—The Precision "Honor Student"

For applications requiring pinpoint accuracy—like pipe-handling manipulators—servo motors are the undisputed champions. Case studies from PILZ show that pipe-handling arms using servo drives and explosion-proof motors achieve positioning accuracy of 0.001mm/0.001°, reducing drilling accidents by over 50%.

Wheatstone's EX Series explosion-proof servo motors cover frame sizes from 40mm to 220mm and power from 0.2kW to 22kW. Featuring Samarium Cobalt magnets with less than 5% flux decay at 200°C, paired with 23-bit absolute encoders, they enable manipulators to grasp drill pipes precisely even in salt-laden, vibration-prone environments. With Ex d IIB T4 certification and IP65 protection, they operate confidently in Zones 1 and 2.

1. Explosion-Proof Stepper Motors—The Reliable "Workhorse"

For valve actuation and limit switching—tasks that don't require closed-loop feedback—stepper motors offer unbeatable cost-performance. Simple structure, easy control, and one less encoder means one fewer failure point.

Wheatstone's HB Series explosion-proof stepper motors, with frames from 42mm to 110mm and optional stainless steel housings, combine mechanical seals with pressure compensation. They're equally at home on the platform deck or at 2,000 meters subsea. Ideal for mud valve control, blowout preventers, and other "open-close" applications.

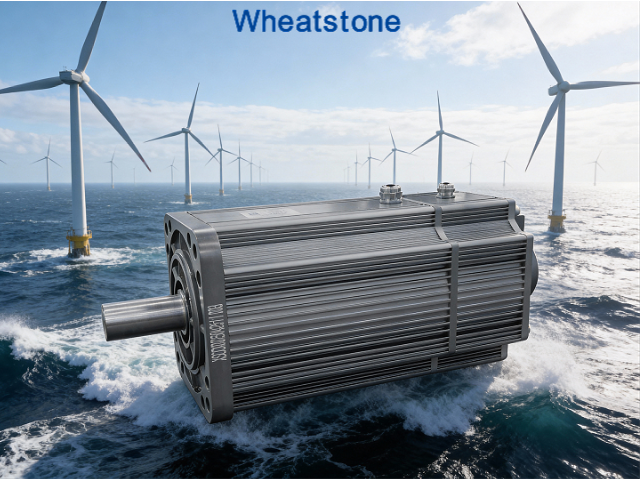

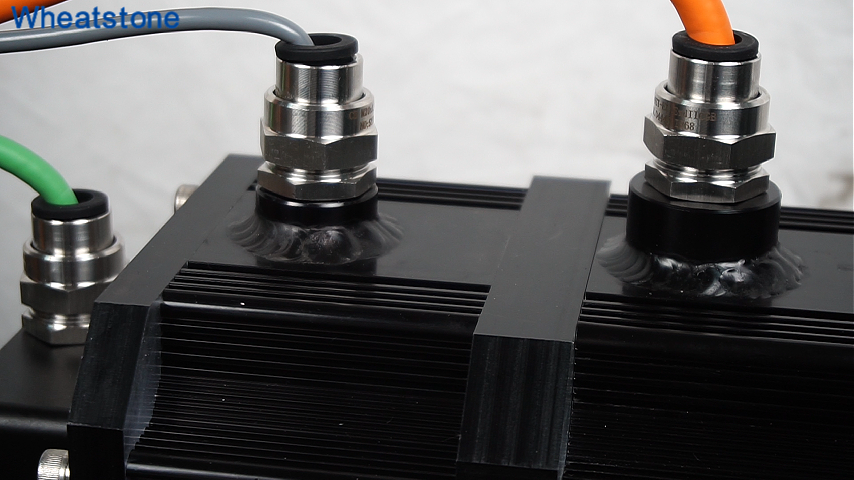

1. Explosion-Proof Integrated Servo Motors—The Space-Saving "All-in-One"

Real estate on offshore platforms is prime. Control cabinets consume valuable space—and money. Wheatstone's EX Series integrated explosion-proof servo motors cram motor, drive, and encoder into a single flameproof housing, reducing footprint by 40% compared to split solutions. A proprietary "heat source separation" design mounts power devices directly against thermal pads, conducting heat to the housing fins via high-thermal-conductivity grease—solving the traditional overheating problem of integrated units.

III. Real-World Cases: Data Speaks

Case Study 1: ELIN MKH Motors on Norwegian North Sea Platform

In one of the harshest marine environments on Earth—the Norwegian North Sea—ELIN's MKH series explosion-proof motors have proven their mettle. Installed on a drilling platform, these motors power critical auxiliary systems. Specifications include:

Explosion protection: ATEX II2G (EEx d IIB T4)

Power range: Up to 383kW

Cooling: Water-cooled system

Temperature range: -30℃ to +60℃

Housing: 316L stainless steel for maximum corrosion resistance

Efficiency: IE5 ultra-premium class

Bearings: Magnetic levitation technology

The result? Over 36 months of continuous, fault-free operation, as verified by field performance data.

Case Study 2: Kollmorgen High-Temperature Motors for Downhole Tools

In the Gulf of Mexico, a major service company needed reliable motors for downhole testing tools. Operating temperatures regularly exceed 240°C—far beyond the 155°C rating of standard industrial motors. Kollmorgen's custom solution featured:

Operating temperature: 180°C to 250°C

High torque density in compact envelope

Rapid custom design based on specific mechanical requirements

Proven reliability in downhole environments

The motors have been deployed in numerous wells, with zero failures attributed to the electrical drive system.

Case Study 3: US Gulf Coast Refinery Valve Actuation

A major refinery on the US Gulf Coast required explosion-proof actuation for 48 critical valves in a highly corrosive, salt-air environment. Standard actuators failed within 18 months due to seal degradation and internal corrosion. Wheatstone supplied custom HB Series explosion-proof stepper motors with:

316L stainless steel housings

Double mechanical shaft seals

PFPE grease lubrication

Ex d IIB T4 certification

After 30 months of continuous operation, inspection revealed zero corrosion, intact seals, and grease in pristine condition. The customer has since standardized on Wheatstone for all coastal installations.

IV. Wheatstone: Two Decades of Specialty Motor Expertise

Founded in 2003, Jiangsu Wheatstone has been deeply engaged in  the specialty motor field for over two decades. With production bases in Wuxi and Changzhou, the company holds ISO9001/TS16949 certification, explosion-proof certification, CE marking, and ROHS certificates. Wheatstone motors are widely used in high-speed rail, marine vessels, glass machinery, and new energy vehicles.

Wheatstone's complete line of explosion-proof control motors covers Class I (coal mining), Class II (gas), and Class III (dust) certifications, plus international IECEx and EU ATEX approvals—truly "one certification for global access." With integrated R&D, production, and sales, and a post-doctoral research workstation, Wheatstone delivers cutting-edge solutions for diverse industries.

V. Complete Wheatstone Motor Product Line

Jiangsu Wheatstone offers a full spectrum of motors for applications ranging from deep sea to deep space, from cryogenic to high-temperature extremes:

Category	Series/Features	Typical Applications
Explosion-Proof Servo Motors	40EX-220EX, 0.2-22KW	Pipe handlers, valve actuation
Explosion-Proof Stepper Motors	HB Series, 42-110mm frames	Mud valves, BOP controls
Explosion-Proof Integrated Servos	EX Series, drive-integrated	Space-constrained offshore equipment
Explosion-Proof Brushless DC Motors	60/80/110BL Series	AGVs, inspection robots
Mining Explosion-Proof Motors	180ST Series, coal mine certified	Underground conveyors
High-Temperature Motors	TBYC/WCS Series, -196℃ to +200℃	Glass, petrochemical
Deep-Sea Motors	WDU Series, 8,000-meter rated	ROVs, subsea equipment
Vacuum Motors	VX Series, 10⁻⁷Pa	Semiconductor, research
Radiation-Resistant Motors	Custom series	Nuclear, medical

From the North Sea to the Gulf of Mexico, from shallow coastal waters to ultra-deep basins, Wheatstone explosion-proof motors are proving their worth on an increasing number of offshore platforms. If you're grappling with power system selection for offshore operations, the Wheatstone technical team offers end-to-end support—from requirements analysis to custom design to on-site commissioning.

Technical consultation: Contact Jiangsu Wheatstone Mechatronic Technology engineers directly.
